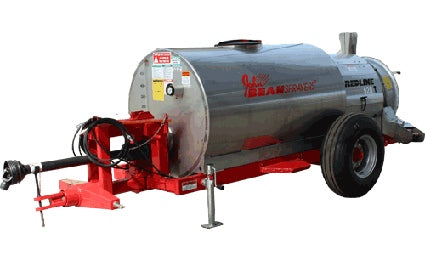

John Bean Redline Model 528 Air Sprayer w/ Diaphragm Pump
John Bean Redline Model 528 Air Sprayer w/ Diaphragm Pump
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284289
John Bean Redline Model 528 Air Sprayer w/ Diaphragm Pump
John Bean Redline Model 528 Air Sprayer w/ Diaphragm Pump
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284289
Collapsible content
Product Overview
John Bean Redline Model 528 Air Sprayer w/ Diaphragm Pump
500 Gallon Capacity, Conventional Hitch
24 GPM, 650 PSI
Dimensions: 182" L x 64" W x 70" H
Catalog Number 5284289
Features:
500 Gallon Capacity, Conventional Hitch
24 GPM, 650 PSI
Dimensions: 182" L x 64" W x 70" H
Catalog Number 5284289
Features:
- 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 32" (.82M) twelve blade variable pitch fan with inside air handling at discharge. Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- PAS908 Diaphragm Pump 24 GPM @ 540 RPM to 650 PSI
- 14 double rollover nozzles with diaphragm check valves
- Suction Strainer mounted under hood on right side, cylindrical filter and built in check valve.
- Axle is 4-
