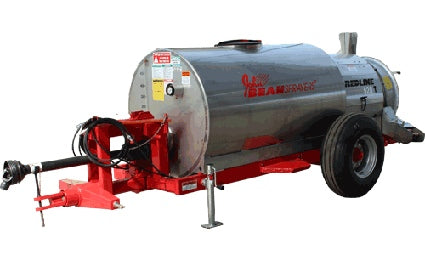

John Bean Redline Model 547 Air Sprayer w/ Centrifugal Pump (36" Fan)

500 Gallon Capacity, Conventional Hitch

70 GPM, 160 PSI

Dimensions:  182" L x 69" W x 72" H

Catalog Number 5284293

Features:

• 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
• 36" sixteen blade variable pitch with straightening vanes.  Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
• PTO Power - Constant velocity
• Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
• Centrifugal two stage pump rated at 70 GPM @ 160 PSI
• 20 double rollover nozzles with diaphragm check valves
• Suction Strainer externally mounted for easy access with cylindrical filter and built in check valve
• Axle is 4
