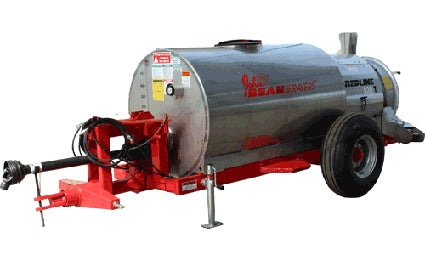

John Bean Redline Model 657 Air Sprayer w/ Piston Pump (36" Fan)
John Bean Redline Model 657 Air Sprayer w/ Piston Pump (36" Fan)
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284299
John Bean Redline Model 657 Air Sprayer w/ Piston Pump (36" Fan)
John Bean Redline Model 657 Air Sprayer w/ Piston Pump (36" Fan)
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284299
Collapsible content
Product Overview
John Bean Redline Model 657 Air Sprayer w/ Piston Pump (36" Fan)
600 Gallon Capacity, Conventional Hitch
35 GPM, 700 PSI
Dimensions: 182" L x 69" W x 72" H
Catalog Number 5284299
Features:
600 Gallon Capacity, Conventional Hitch
35 GPM, 700 PSI
Dimensions: 182" L x 69" W x 72" H
Catalog Number 5284299
Features:
- 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 36" sixteen blade variable pitch with straightening vanes. Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- John Bean 130VS Piston Pump 35 GPM @ 540 RPM to 700 PSI
- 20 double rollover nozzles with diaphragm check valves
- Suction Strainer is externally mounted, star strainer in cast iron housing with built in check valve
- Axle is 4-w
-
