ARAG Orion Flowmeters are precise and easy to install. The most common flowmeter used in agricultural spraying applications. This is a 4-channel meter with T1 ports.

ARAG is the largest Italian manufacturer of sprayer parts and equipment. Pumps, spray guns, fittings, electronics, etc. - you name and they probably make it!

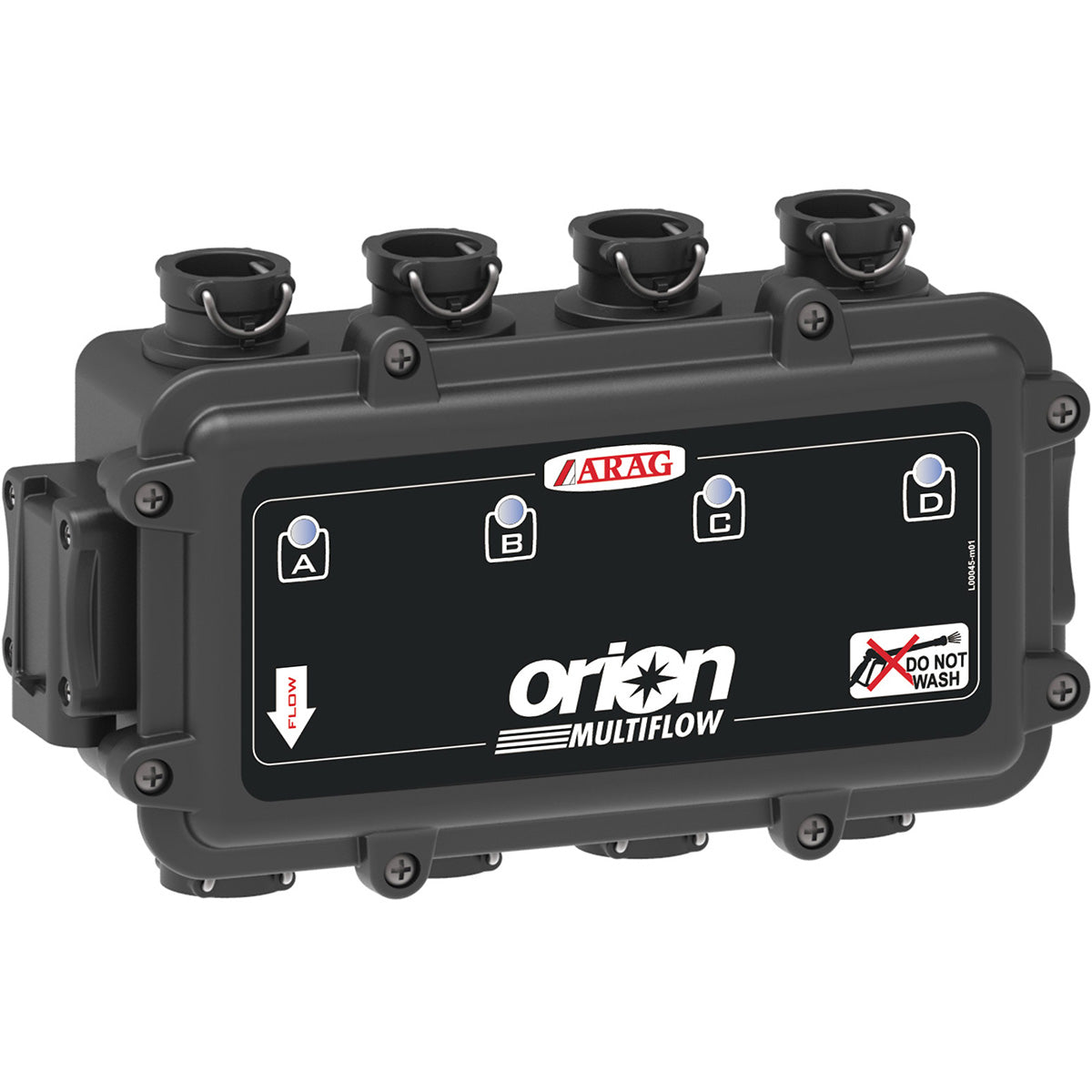

Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems. The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.

Download Product Manual

Benefits:

• No mechanical moving parts inside the pipe
• Performances independent from fluid density and viscosity
• Low sensitivity to turbulence
• High precision
• Low maintenance

Features:

• Typical error: 0.5% of full scale.
• A-net port for flowrate and configuration reading.
• Four 0 ÷ 12 VDC pulse outputs with frequency proportional to flowrate
• LED for status indication of each single channel.
• Operating pressure up to 20 bar / 290 PSI.
• Maximum absorption of 0.6 A.
• T1 fork couplings.
• Modular manifold for each inlet fitting with T3 fork coupling.
• Patented integrated fixing system eliminates the need for retaining bolts or support
