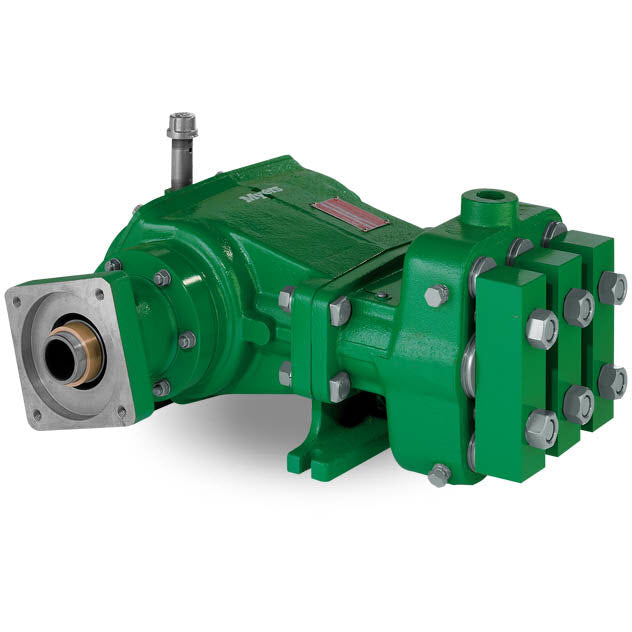

Myers C35-20DV High Pressure Reciprocating Piston Pump

Myers C35-20DV High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
230.0 lb
Item #
C3520DV
1 1

Myers C35-20DV High Pressure Reciprocating Piston Pump

Myers C35-20DV High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
230.0 lb
Item #
C3520DV

$11,802.00
$11,802.00 List Price: $19,670.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 35,406 points with this purchase.

See Details

View full details

Product Overview

Myers C35-20DV High Pressure Reciprocating Piston Pump

KEY FEATURES

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seat, Valve
    • Ref No: 02
    • Part No: 06125A002
    • Qty Req: 6
    Our price: $255.00 List price: $300.00
  • Valve
    • Ref No: 04
    • Part No: 17714A003
    • Qty Req: 6
    Our price: $39.10 List price: $46.00
  • Spring, Valve, Suction
    • Ref No: 05
    • Part No: 06127A002
    • Qty Req: 3
    Our price: $33.15 List price: $39.00
  • Spring, Valve, Discharge
    • Ref No: 05A
    • Part No: 06127A003
    • Qty Req: 3
    Our price: $33.15 List price: $39.00
  • O-Ring
    • Ref No: 06
    • Part No: 05876A171
    • Qty Req: 6
    Our price: $17.00 List price: $20.00
  • Ring, Back-Up
    • Ref No: 06A
    • Part No: 18753A008
    • Qty Req: 6
    Our price: $9.35 List price: $11.00
  • Cap, Valve
    • Ref No: 07
    • Part No: 18456A006
    • Qty Req: 6
    Our price: $272.00 List price: $320.00
  • Gasket, Nylon
    • Ref No: 07A
    • Part No: 05059A436
    • Qty Req: 6
    Our price: $11.05 List price: $13.00
  • Stud
    • Ref No: 08
    • Part No: 05659A089
    • Qty Req: 6
    Our price: $41.65 List price: $49.00
  • Liner, Cyl. 1-3/4" I.D.
    • Ref No: 09
    • Part No: 06124A002
    • Qty Req: 3
    Our price: $569.50 List price: $670.00
  • O-Ring
    • Ref No: 09A
    • Part No: 05876A172
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Body, Cylinder, C.I.
    • Ref No: 10
    • Part No: 18790E002
    • Qty Req: 1
    Our price: $2,524.50 List price: $2,970.00
  • Lid, Cylinder Body
    • Ref No: 11
    • Part No: 06123A000
    • Qty Req: 1
    Our price: $12.75 List price: $15.00
  • Screw
    • Ref No: 12
    • Part No: 05028A002
    • Qty Req: 2
    Our price: $4.50 List price: $5.00
  • Washer
    • Ref No: 13
    • Part No: 05030A020
    • Qty Req: 2
    Our price: $3.60 List price: $4.00
  • Screw
    • Ref No: 14
    • Part No: 19103A008
    • Qty Req: 4
    Our price: $7.20 List price: $8.00
  • Spring
    • Ref No: 16
    • Part No: 06120A000
    • Qty Req: 3
    Our price: $9.35 List price: $11.00
  • Retainer
    • Ref No: 17
    • Part No: 24958A001
    • Qty Req: 3
    Our price: $238.00 List price: $280.00
  • Housing
    • Ref No: 17A
    • Part No: 24959A002
    • Qty Req: 3
    Our price: $178.50 List price: $210.00
  • Allen Screw
    • Ref No: 17B
    • Part No: 06106A034
    • Qty Req: 6
    Our price: $6.30 List price: $7.00
  • Gasket
    • Ref No: 18
    • Part No: 05059A052
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Gasket
    • Ref No: 18A
    • Part No: 05059A435
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Cup, U Metric 22
    • Ref No: 19
    • Part No: 22835A004
    • Qty Req: 6
    Our price: $15.30 List price: $17.00
  • Washer, Lock
    • Ref No: 20
    • Part No: 05454A011
    • Qty Req: 4
    Our price: $1.80 List price: $2.00
  • Bolt, Square
    • Ref No: 21
    • Part No: 19108A027
    • Qty Req: 4
    Our price: $4.50 List price: $5.00
  • Case, Gear
    • Ref No: 24
    • Part No: 06076D000
    • Qty Req: 1
    Our price: $952.00 List price: $1,120.00
  • Gasket
    • Ref No: 25
    • Part No: 06089B000
    • Qty Req: 1
    Our price: $22.10 List price: $26.00
  • Cap Screw
    • Ref No: 26
    • Part No: 19101A007
    • Qty Req: 6
    Our price: $3.60 List price: $4.00
  • Lid
    • Ref No: 27
    • Part No: 06077C000
    • Qty Req: 1
    Our price: $416.50 List price: $490.00
  • Oil Fill Cap
    • Ref No: 28
    • Part No: 05737A021
    • Qty Req: 1
    Our price: $8.10 List price: $9.00
  • Oil Fill Nipple
    • Ref No: 28A
    • Part No: 17995A001
    • Qty Req: 1
    Our price: $8.10 List price: $9.00
  • O-Ring, Oil Gauge
    • Ref No: 29
    • Part No: 110000110201
    • Qty Req: 1
    Our price: $8.50 List price: $10.00
  • Oil Gauge
    • Ref No: 30
    • Part No: 17360A014
    • Qty Req: 1
    Our price: $15.30 List price: $18.00
  • Bearing Cone
    • Ref No: 31
    • Part No: 05674A019
    • Qty Req: 2
    Our price: $340.00 List price: $400.00
  • Bearing Cup
    • Ref No: 31A
    • Part No: 05675A018
    • Qty Req: 2
    Our price: $204.00 List price: $240.00
  • Gasket, Shim .003 Green
    • Ref No: 32
    • Part No: 05011A027
    • Qty Req: 6
    Our price: $27.00 List price: $30.00
  • Gasket, Shim .015 Pink
    • Ref No: 32A
    • Part No: 05011A028
    • Qty Req: 4
    Our price: $18.00 List price: $20.00
  • Cap, Bearing Open
    • Ref No: 33
    • Part No: 10414B002
    • Qty Req: 1
    Our price: $229.50 List price: $270.00
  • Washer, Seal
    • Ref No: 34
    • Part No: 14946A003
    • Qty Req: 12
    Our price: $7.65 List price: $9.00
  • Crankshaft
    • Ref No: 38
    • Part No: 06074D011
    • Qty Req: 1
    Our price: $3,791.00 List price: $4,460.00
  • Cap, Bearing Closed
    • Ref No: 39
    • Part No: 10414B001
    • Qty Req: 1
    Our price: $204.00 List price: $240.00
  • Screw Cap, 3/8"x1"
    • Ref No: 40
    • Part No: 19101A013
    • Qty Req: 12
    Our price: $3.60 List price: $4.00
  • Plug, Pipe 3/8 BR
    • Ref No: 41
    • Part No: 06136A000
    • Qty Req: 4
    Our price: $19.80 List price: $22.00
  • O-Ring
    • Ref No: 42
    • Part No: 05876A173
    • Qty Req: 3
    Our price: $20.40 List price: $24.00
  • Ring, Back-Up
    • Ref No: 42A
    • Part No: 18753A009
    • Qty Req: 3
    Our price: $8.50 List price: $10.00
  • Cap, Cylinder, 2-7/8"
    • Ref No: 43
    • Part No: 18457A005
    • Qty Req: 3
    Our price: $195.50 List price: $230.00
  • Gasket, Nylon
    • Ref No: 43A
    • Part No: 05059A437
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Clamp, Cylinder & Valve
    • Ref No: 44
    • Part No: 20856A001
    • Qty Req: 3
    Our price: $246.50 List price: $290.00
  • Stud, Piston
    • Ref No: 47
    • Part No: 20850A001
    • Qty Req: 3
    Our price: $289.00 List price: $340.00
  • Washer
    • Ref No: 47A
    • Part No: 05030A128
    • Qty Req: 3
    Our price: $9.35 List price: $11.00
  • Follower, Plunger
    • Ref No: 49
    • Part No: 19328A000
    • Qty Req: 3
    Our price: $127.50 List price: $150.00
  • "V" Packing, for Plunger
    • Ref No: 50
    • Part No: 18922A002
    • Qty Req: 3
    Our price: $127.50 List price: $150.00
  • Spring, Spacer, Plunger
    • Ref No: 51
    • Part No: 19606A000
    • Qty Req: 3
    Our price: $17.85 List price: $21.00
  • Washer, Cap Screw to Packing
    • Ref No: 52
    • Part No: 05030A205
    • Qty Req: 3
    Our price: $12.75 List price: $15.00
  • Washer
    • Ref No: 52A
    • Part No: 05030A203
    • Qty Req: 3
    Our price: $22.10 List price: $26.00
  • Cap Screw, Nylok
    • Ref No: 53
    • Part No: 17050A004
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Plug, Magnetic 1/2
    • Ref No: 55
    • Part No: 17481A001
    • Qty Req: 1
    Our price: $14.40 List price: $16.00
  • Bearing
    • Ref No: 57
    • Part No: 06109A000
    • Qty Req: 6
    Our price: $178.50 List price: $210.00
  • Screw, Cap, Socket Head
    • Ref No: 58
    • Part No: 06106A040
    • Qty Req: 3
    Our price: $5.10 List price: $6.00
  • Washer, Lock
    • Ref No: 58
    • Part No: 05454A025
    • Qty Req: 3
    Our price: $2.70 List price: $3.00
  • Crosshead & Piston Rod
    • Ref No: 60
    • Part No: 17515B001
    • Qty Req: 3
    Our price: $697.00 List price: $820.00
  • Pin, CRK & WR
    • Ref No: 61
    • Part No: 06116A000
    • Qty Req: 3
    Our price: $102.00 List price: $120.00
