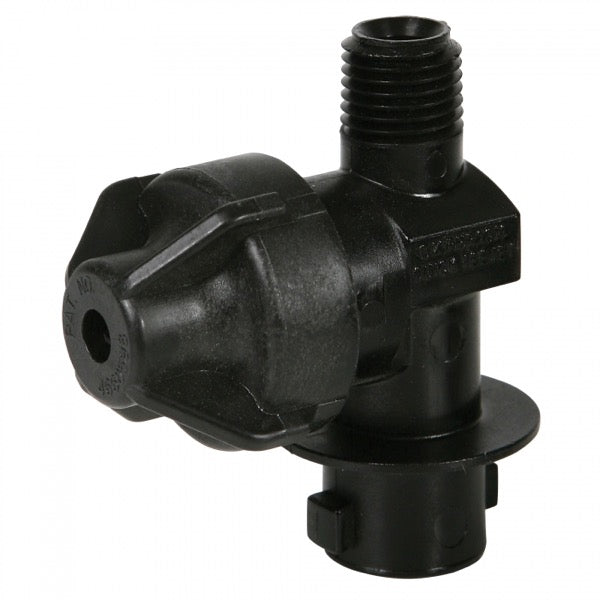

QJ8360-NYB 1/4" Male Inlet Quick TeeJet Adapter With Diaphragm Check Valve

QJ8360-NYB 1/4" Male Inlet Quick TeeJet Adapter With Diaphragm Check Valve

Brand:
TeeJet
Weight:
0.1 lb
Item #
QJ8360NYB
1 1

QJ8360-NYB 1/4" Male Inlet Quick TeeJet Adapter With Diaphragm Check Valve

QJ8360-NYB 1/4" Male Inlet Quick TeeJet Adapter With Diaphragm Check Valve

Brand:
TeeJet
Weight:
0.1 lb
Item #
QJ8360NYB

$4.66
$4.66 List Price: $7.76

Earn 14 points with this purchase.

See Details

View full details

Product Overview

QJ8360-NYB 1/4" Male Inlet Quick TeeJet Adapter With Diaphragm Check Valve
Retrofits to a Quick TeeJet system. Features ChemSaver® no-drip shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve. Standard diaphragm of EPDM with optional Viton® available upon request. Maximum operating pressure of 300 PSI (20 bar). Flow rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) at 10 PSI (0.69 bar) pressure drop. 1/4" Male National Pipe Thread Inlet; QuickJet Outlet
  • Retrofits to a Quick TeeJet system
  • Features ChemSaver no-drip shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve
  • Standard diaphragm of EPDM with optional Viton available upon request
  • Maximum operating pressure 300 PSI (20 bar)
  • Flow rate: 2.25 GPM (8.5 1/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 1/min) at 10 PSI (0.69 bar) pressure drop
