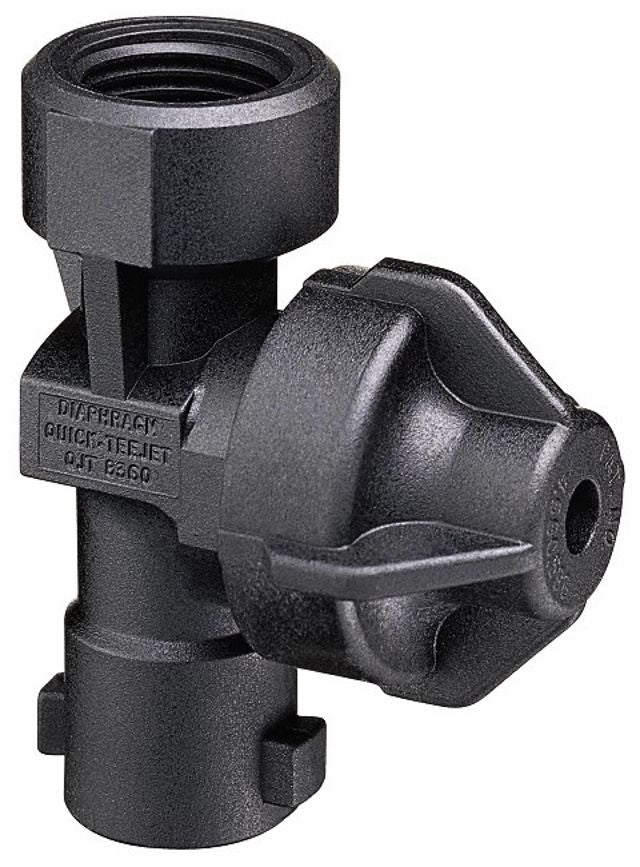

QJT8360-NYB 11/16"-16 TeeJet Thread Adapter With Diaphragm Check Valve
QJT8360-NYB 11/16"-16 TeeJet Thread Adapter With Diaphragm Check Valve
Brand:
TeeJet
Weight:
0.1 lb
Item #
QJT8360NYB
1
QJT8360-NYB 11/16"-16 TeeJet Thread Adapter With Diaphragm Check Valve
QJT8360-NYB 11/16"-16 TeeJet Thread Adapter With Diaphragm Check Valve
Brand:
TeeJet
Weight:
0.1 lb
Item #
QJT8360NYB
1
Regular price
$5.07
Sale price
$5.07
Regular price
List Price:
$8.45
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Couldn't load pickup availability
Earn 15 points with this purchase.
Collapsible content
Product Overview
QJT8360-NYB 11/16"-16 TeeJet Thread Adapter With Diaphragm Check Valve
Manufacturer description
Retrofits to a Quick TeeJet system. Features ChemSaver® no-drip shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve. Standard diaphragm of EPDM with optional Viton® available upon request. Maximum operating pressure of 300 PSI (20 bar). Flow rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) at 10 PSI (0.69 bar) pressure drop. 11/16" Female Nozzle Thread Inlet; QuickJet Outlet Includes inlet gasket; CP20266-EPDM
Features
- Retrofits to a Quick TeeJet system
- Features ChemSaver no-drip shutoff. Requires 10 PSI (0.7 bar) at the nozzle to open check valve
- Standard diaphragm of EPDM with optional Viton available upon request
- Maximum operating pressure 300 PSI (20 bar)
- Flow rate: 2.25 GPM (8.5 1/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 1/min) at 10 PSI (0.69 bar) pressure drop
