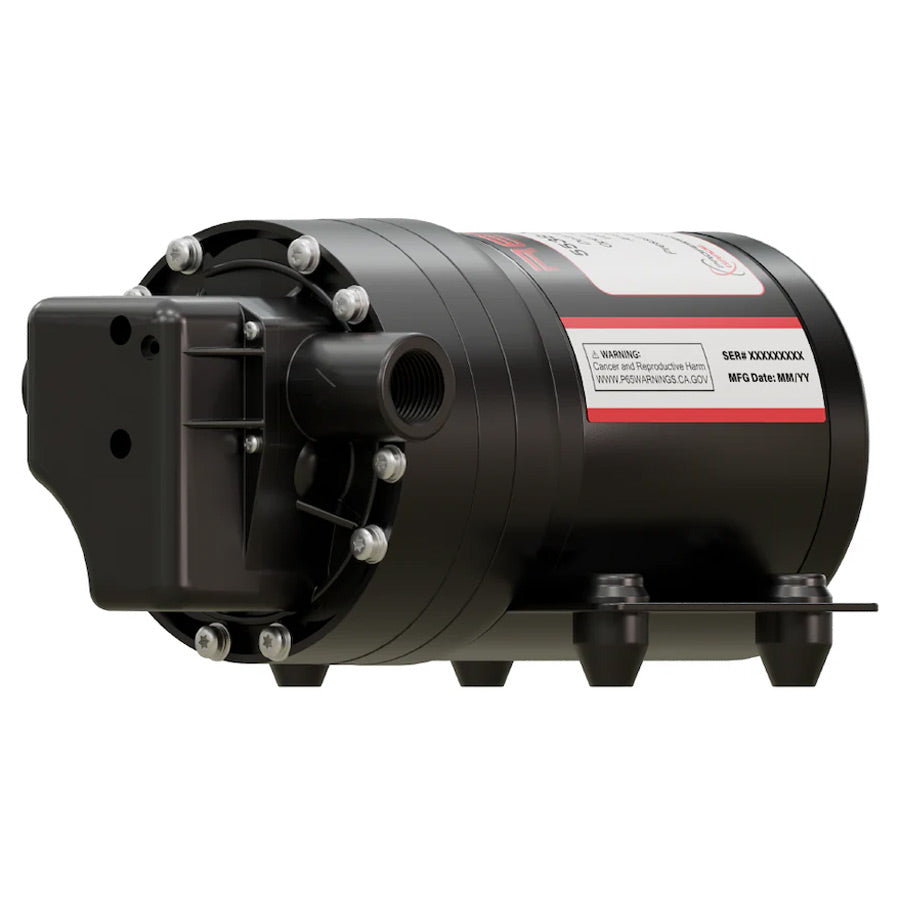

Remco 5538-1I1-94A "Fatboy" Electric Diaphragm Pump (7 GPM/100 PSI, Demand)

Remco 5538-1I1-94A "Fatboy" Electric Diaphragm Pump (7 GPM/100 PSI, Demand)

Brand:
Remco
Weight:
10.0 lb
Item #
55381I194A
Skip to product information
1 of 1

Remco 5538-1I1-94A "Fatboy" Electric Diaphragm Pump (7 GPM/100 PSI, Demand)

Remco 5538-1I1-94A "Fatboy" Electric Diaphragm Pump (7 GPM/100 PSI, Demand)

Brand:
Remco
Weight:
10.0 lb
Item #
55381I194A

Regular price $239.99
Sale price $239.99 Regular price List Price: $379.81

Earn 720 points with this purchase.

View full details

Collapsible content

Product Overview

Remco 5538-1I1-94A Fatboy Sprayer Pump - 7.0 GPM, 100 PSI, On Demand, 12 Volt, 1/2" NPT Threaded Ports

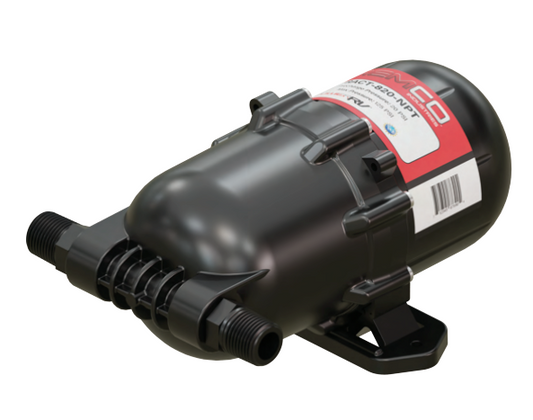

** The manufacturer strongly recommends installing an accumulator in line with soft wash systems. Failure to do so may result in water hammering and could potentially void the warranty **



**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Remco's Fatboy 7.0 GPM Sprayer Pump is the highest performing 12 Volt Sprayer pump on the market. With a 100 PSI Demand Pressure Switch. The Fatboy On Demand Sprayer Pump can with stand the demands of any agricultural spray application. The Fatboy is Made in the U.S.A. and engineered with Professional Grade components able to with stand long duty cycles. Remco's signature sealed electric motor with industry leading 12 AWG wire leads protects the Fatboy from elements and keep your pump running in the most extreme environments. The Fatboy's materials of construction are compatible with most common agricultural spray chemicals including herbicides, fertilizers, and insecticides. The Fatboy is a workhorse for the most demanding Spray applications.

  • Max flow: 7.0 GPM
  • Max pressure: 100 PSI
  • Control: On demand pressure switch
  • Voltage:12 VDC
  •  Port Size:  ½" FNPT threaded ports
  • Capable of being dry run
  • Self priming up to 14' vertically
  • 12 AWG wire leads 12" in length for easy hook up
  • Highest Flow rate at spray pressures when compared to other pumps
  • Chemically compatible with common Agricultural chemicals like herbicides, fertilizers, and insecticides
  • Maximum Shell Temperature of 180° F
  • Maximum Liquid Temperature of 140° F
  • Made in the U.S.A.

Diagram

Diagram parts

Parts list
