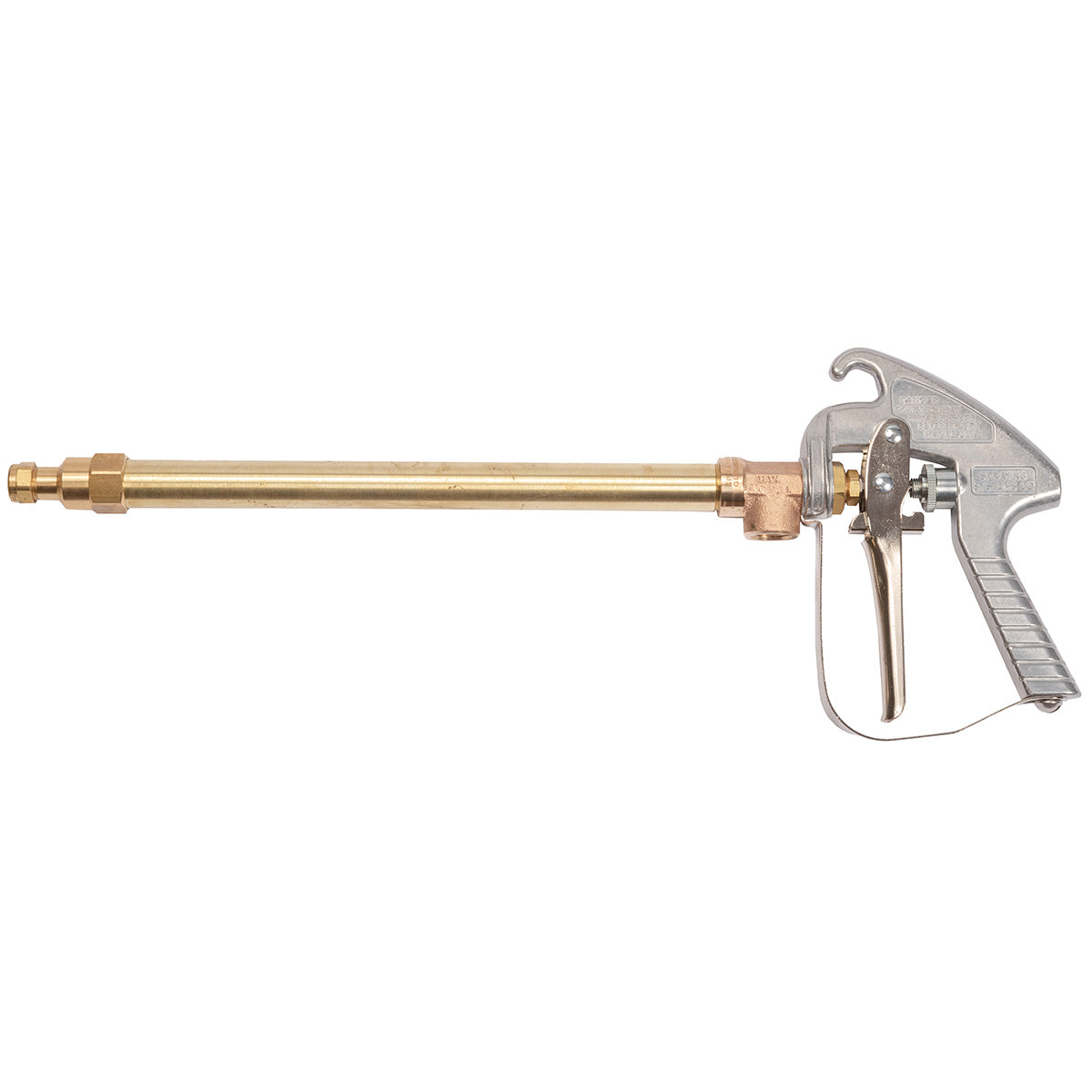

SSC Gunjet Type 43H Spray Gun (Long)

SSC Gunjet Type 43H Spray Gun (Long)

Brand:
TeeJet
Weight:
3.5 lb
Item #
AA43H6
4 reviews
1 1

SSC Gunjet Type 43H Spray Gun (Long)

SSC Gunjet Type 43H Spray Gun (Long)

Brand:
TeeJet
Weight:
3.5 lb
Item #
AA43H6
4 reviews

$157.40
$157.40 List Price: $262.33

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 472 points with this purchase.

See Details

View full details

Product Overview

The high-quality SSC Gunjet Type 43H Spray Gun is designed and built for heavy duty service. The long stem extends to the valve seat positioned behind the orifice disc for drip-free shutoff and instant operating response. The convenient trigger lock provides a continuous spraying capacity with adjustable stop trigger options at any desired position. Also, the valve cone spray continuously narrows to a final straight stream when you pull the trigger.

Manufacturer description

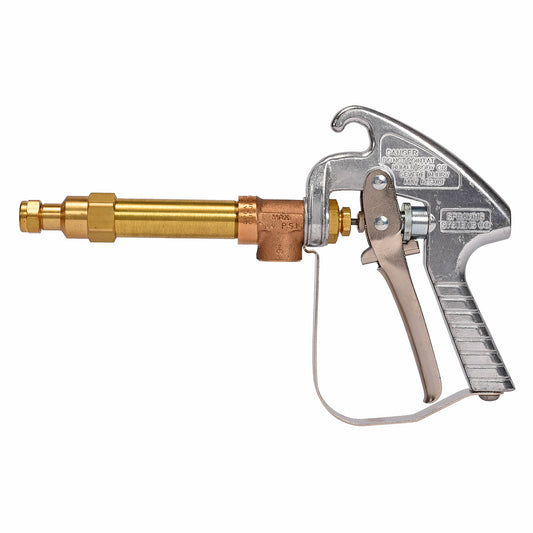

AA43H6. 1/2" FNPT Inlet, 800 max psi. Spraying Systems Co. Gunjet AA43H6 is designed for heavy duty service. Made of Brass. Stem extends through extension to valve seat located directly behind orifice disc for drip-free shutoff and instant operating response. Convenient trigger lock for continuous spraying. Gun length is 22" (Short version, 13", is also available use part number AA43HA6). Gun operates at 200-800 psi. Choice of five interchangeable orifice disc capacities: D2, D4, D6, D8, D10. AA43H6 comes equipped with D6 orifice disc.

Resources

Download Product Manual

Features

  • Construction: Brass
  • Max pressure: 800
  • Overall gun length: 22"
  • Inlet: 1/2" FNPT

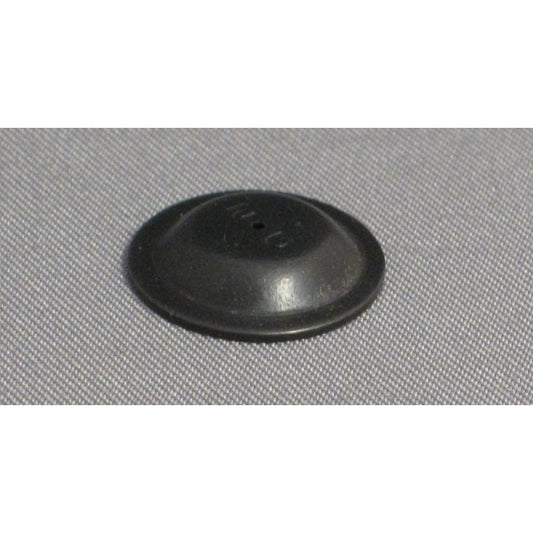

  • Disc size: 6 is standard, 2, 4, 8, 10 available
  • Weight: 3.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

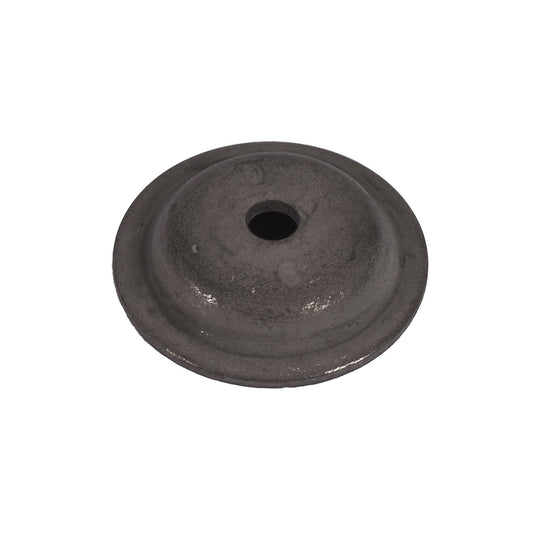

  • SSC D6 Orifice Disc
    • Ref No: 2
    • Part No: D6
    • Qty Req: 1
    Our price: $1.40 List price: $2.33
  • Nylon Gasket
    • Ref No: 3
    • Part No: CP4743NY
    • Qty Req: 1
    Our price: $1.46 List price: $2.44
  • Nozzle Housing, Brass
    • Ref No: 4
    • Part No: CP10566
    • Qty Req: 1
    Our price: $17.07 List price: $28.45
  • Seat Plug
    • Ref No: 5
    • Part No: 10565NY
    • Qty Req: 1
    Our price: $26.27 List price: $43.78
  • Guide Vane
    • Ref No: 6
    • Part No: CP10571
    • Qty Req: 1
    Our price: $8.24 List price: $9.70
  • Aluminum Gasket
    • Ref No: 7
    • Part No: CP6943AL
    • Qty Req: 2
    Our price: $1.47 List price: $2.45
  • STEM, 16" LONG AA43H GUN- LONG VER
    • Ref No: NA
    • Part No: CP19238416SS
    • Qty Req: 0
    Our price: $21.62 List price: $36.03
  • Brass Tubing
    • Ref No: 9
    • Part No: CP6604
    • Qty Req: 1
    Our price: $35.07 List price: $58.45
  • Inlet Body, Brass
    • Ref No: 10
    • Part No: CP6492
    • Qty Req: 1
    Our price: $38.89 List price: $64.81
  • Packing Washer
    • Ref No: 11
    • Part No: CP6601302SS
    • Qty Req: 1
    Our price: $3.76 List price: $6.26
  • Packing, Leather
    • Ref No: 12
    • Part No: CP6602LEA
    • Qty Req: 3
    Our price: $3.26 List price: $5.44
  • Packing, Teflonå¨
    • Ref No: 12
    • Part No: CP6602TEF
    • Qty Req: 3
    Our price: $8.20 List price: $13.66
  • Packing Screw, Brass
    • Ref No: 13
    • Part No: CP19237
    • Qty Req: 1
    Our price: $4.72 List price: $7.87
  • Locknut, Brass
    • Ref No: 14
    • Part No: CP6599
    • Qty Req: 1
    Our price: $3.20 List price: $5.33
  • Stem Nut
    • Ref No: 15
    • Part No: CP9641INP
    • Qty Req: 1
    Our price: $5.18 List price: $8.63
  • Trigger Stop Spring
    • Ref No: 16
    • Part No: CP6595SS
    • Qty Req: 1
    Our price: $2.81 List price: $4.68
  • Washer
    • Ref No: 17
    • Part No: CP7991IZP
    • Qty Req: 1
    Our price: $1.42 List price: $2.37
  • Trigger Guide
    • Ref No: 18
    • Part No: CP6597INP
    • Qty Req: 1
    Our price: $14.62 List price: $24.36
  • Spring Stud
    • Ref No: 19
    • Part No: CP6591SS
    • Qty Req: 1
    Our price: $3.35 List price: $5.58
  • Adjusting Nut
    • Ref No: 20
    • Part No: CP6589IZP
    • Qty Req: 1
    Our price: $4.37 List price: $7.28
  • Spring for Adjusting Nut
    • Ref No: 21
    • Part No: CP6594SS
    • Qty Req: 1
    Our price: $1.51 List price: $2.51
  • Spring Screw
    • Ref No: 22
    • Part No: CP6588IZP
    • Qty Req: 1
    Our price: $4.60 List price: $7.67
  • Spring Guide Washer
    • Ref No: 23
    • Part No: CP6592302SS
    • Qty Req: 1
    Our price: $2.35 List price: $3.91
  • Main Spring
    • Ref No: 24
    • Part No: CP65932SS
    • Qty Req: 1
    Our price: $4.72 List price: $7.87
  • Handle Body, Aluminum
    • Ref No: 25
    • Part No: CP144771AL
    • Qty Req: 1
    Our price: $51.23 List price: $85.38
  • Rivet
    • Ref No: 26
    • Part No: CP7623IZP
    • Qty Req: 1
    Our price: $1.42 List price: $2.37
  • Trigger
    • Ref No: 27
    • Part No: CP6509INP
    • Qty Req: 1
    Our price: $5.55 List price: $9.25
  • Trigger Stop
    • Ref No: 28
    • Part No: CP6510INP
    • Qty Req: 1
    Our price: $4.88 List price: $8.14
  • Screw
    • Ref No: 29
    • Part No: CP11757INP
    • Qty Req: 1
    Our price: $3.83 List price: $6.38
  • Trigger Guard
    • Ref No: 30
    • Part No: CP13798INP
    • Qty Req: 1
    Our price: $9.89 List price: $16.48
