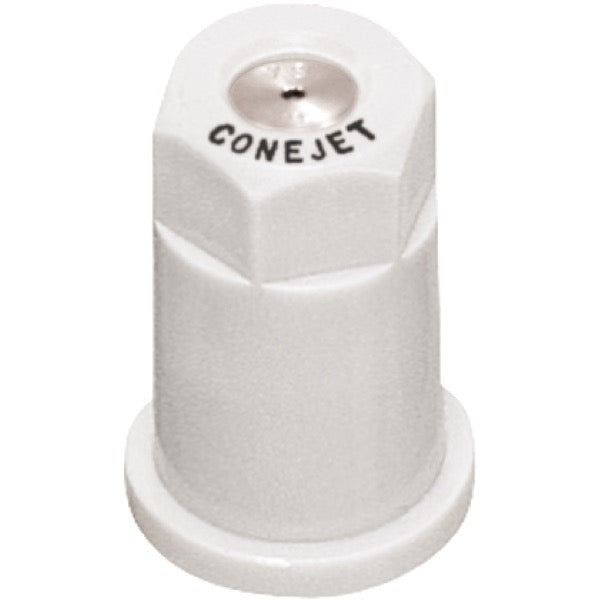

TX-VS2 TeeJet Stainless Steel ConeJet VisiFlo Hollow Cone Spray Tip

VisiFlo color-coded versions consist of stainless steel or ceramic orifice in a polypropylene body. Standard ConeJet spray nozzles (not color-coded) are available in brass and stainless steel with a 65° (TY) and 80° (TX) spray angles. Finely atomized hollow cone spray pattern provides thorough coverage. Maximum pressure rating of 300 psi (20 bar). Spray angle is 80° at 100 psi (7 bar). Excellent for use in directed applications in air blast spraying for orchards and vineyards and other specialty crops. Also well suited for applications of insecticides, fungicides, defoliants, and foliar fertilizers at pressures of 40 psi (3 bar) and above.

• Flow rate at 40 psi: 0.033 gpm
• Pressure range: 30-300 psi
• Color: White
• Common use: Airblast Spraying and Specialty Appliactions
• Pattern: Hollow Cone
• Material: Stainless Steel w/ Visiflo color-coding
