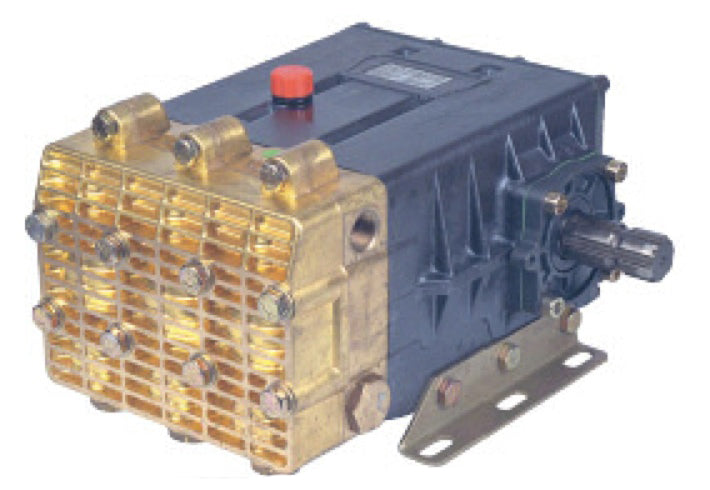

Udor GAMMA-103B/CC Plunger Pump

Udor GAMMA-103B/CC Plunger Pump

Brand:
Udor
Weight:
100.0 lb
Item #
GAMMA103BCC

Regular price $2,944.10
Sale price $2,944.10 Regular price List Price: $5,888.20

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 8,832 points with this purchase.

View full details

Collapsible content

Product Overview

This three cylinder plunger pump features brass manifolds and anodized aluminum components. Constructed with a heat-treated crankshaft, ceramic plungers, and a dual 1 3/8-inch 6-spline male shaft, it can deliver a maximum of 600 RPM. When using this plunger pump on any thru-shaft application, use of shaft protector #1219 is recommended; this protector must be purchased separately.

Manufacturer description

Three Cylinder Plunger Pump of Anodized Aluminum, Brass Manifolds, Construction with Ceramic Plungers and Dual 1-3/8", 6-Spline Male Shaft. Max RPM - 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Features

  • Max flow: 28 gpm
  • Max pressure: 1500 psi
  • Max speed: 600 rpm
  • Power requirement: 25 hp electric
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Brass manifolds
  • Large Capacity Vented Oil Bath Crank Case
  • Plunger: Solid ceramic
  • Port size: 1-1/4" hose barb inlet, (2) 3/4" FPT and (2) 3/8" FPT outlets
  • Industrial quality tapered roller bearings
  • High strength aluminum alloy connecting rods
  • Replaceable Teflon® coated body guides
  • Recommended control unit: 6005.15
  • Max fluid temperature: 160°F
  • Weight: 105 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Crankshaft
    • Ref No: sku:000240
    • Part No: 000240
    • Qty Req: 1
    Our price: $859.13 List price: $1,035.10
  • Seal
    • Ref No: sku:000724a
    • Part No: 000724a
    • Qty Req: 3
    Our price: $14.36 List price: $17.30
  • Double Lip Seal
    • Ref No: sku:000749
    • Part No: 000749
    • Qty Req: 2
    Our price: $24.15 List price: $29.10
  • Guide
    • Ref No: sku:001415
    • Part No: 001415
    • Qty Req: 3
    Our price: $182.18 List price: $219.49
  • Piston Seal
    • Ref No: sku:002101
    • Part No: 002101
    • Qty Req: 3
    Our price: $41.00 List price: $49.40
  • Rod Guide
    • Ref No: sku:011510
    • Part No: 011510
    • Qty Req: 3
    Our price: $57.10 List price: $68.80
  • Suction Elbow - Brass
    • Ref No: sku:020291
    • Part No: 020291
    • Qty Req: 1
    Our price: $54.45 List price: $65.60
  • Back Cover
    • Ref No: sku:0208A4
    • Part No: 0208A4
    • Qty Req: 1
    Our price: $171.31 List price: $206.40
  • Pump Body
    • Ref No: sku:0209A5
    • Part No: 0209A5
    • Qty Req: 1
    Our price: $1,380.95 List price: $1,663.80
  • Bearing
    • Ref No: sku:024808
    • Part No: 024808
    • Qty Req: 2
    Our price: $223.27 List price: $269.00
  • Slinger Ring
    • Ref No: sku:030145
    • Part No: 030145
    • Qty Req: 3
    Our price: $7.64 List price: $9.20
  • Spreader Ring
    • Ref No: sku:030701
    • Part No: 030701
    • Qty Req: 3
    Our price: $6.47 List price: $7.80
  • Brass Nut
    • Ref No: sku:030904
    • Part No: 030904
    • Qty Req: 3
    Our price: $27.72 List price: $33.40
  • Bearing Flange
    • Ref No: sku:0501H3
    • Part No: 0501H3
    • Qty Req: 2
    Our price: $111.55 List price: $134.40
  • Gasket
    • Ref No: sku:060234
    • Part No: 060234
    • Qty Req: 1
    Our price: $23.24 List price: $28.00
  • Gasket
    • Ref No: sku:060279
    • Part No: 060279
    • Qty Req: 2
    Our price: $3.15 List price: $3.80
  • Suction Nut - Brass
    • Ref No: sku:060413
    • Part No: 060413
    • Qty Req: 1
    Our price: $25.40 List price: $30.60
  • Gasket
    • Ref No: sku:060540
    • Part No: 060540
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 2
    Our price: $2.41 List price: $2.90
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 2
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: sku:110102
    • Part No: 110102
    • Qty Req: 1
    Our price: $2.66 List price: $3.20
  • O-Ring
    • Ref No: sku:110145
    • Part No: 110145
    • Qty Req: 6
    Our price: $4.81 List price: $5.80
  • O-Ring
    • Ref No: sku:110146
    • Part No: 110146
    • Qty Req: 3
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: sku:110147
    • Part No: 110147
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:110148
    • Part No: 110148
    • Qty Req: 2
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: sku:110149
    • Part No: 110149
    • Qty Req: 3
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: sku:110154
    • Part No: 110154
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: sku:110168
    • Part No: 110168
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Mounting Rails (Left)
    • Ref No: sku:120294
    • Part No: 120294
    • Qty Req: 2
    Our price: $34.86 List price: $42.00
  • Mounting Rails (Right)
    • Ref No: sku:120295
    • Part No: 120295
    • Qty Req: 2
    Our price: $34.86 List price: $42.00
  • Plunger
    • Ref No: sku:120517
    • Part No: 120517
    • Qty Req: 3
    Our price: $227.17 List price: $273.70
  • PTO Safety Shield (Optional)
    • Ref No: sku:121902
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: sku:121915
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Lift Ring
    • Ref No: sku:1240R9
    • Part No: 1240R9
    • Qty Req: 1
    Our price: $13.61 List price: $16.40
  • Washer
    • Ref No: sku:140305
    • Part No: 140305
    • Qty Req: 3
    Our price: $1.00 List price: $1.20
  • Washer
    • Ref No: sku:140308
    • Part No: 140308
    • Qty Req: 8
    Our price: $2.32 List price: $2.80
  • Washer
    • Ref No: sku:140309
    • Part No: 140309
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: sku:141102
    • Part No: 141102
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Rod Pin
    • Ref No: sku:150206
    • Part No: 150206
    • Qty Req: 3
    Our price: $17.93 List price: $21.60
  • Inlet Adapter
    • Ref No: sku:150406
    • Part No: 150406
    • Qty Req: 2
    Our price: $82.50 List price: $99.40
  • Snap Ring
    • Ref No: sku:150615
    • Part No: 150615
    • Qty Req: 3
    Our price: $1.91 List price: $2.30
  • Plug - Inlet
    • Ref No: sku:160330
    • Part No: 160330
    • Qty Req: 3
    Our price: $31.04 List price: $37.40
  • Inlet Plug 3/4"
    • Ref No: sku:160362
    • Part No: 160362
    • Qty Req: 3
    Our price: $11.87 List price: $14.30
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 2
    Our price: $16.85 List price: $20.30
  • Inner Head, Brass
    • Ref No: sku:160432
    • Part No: 160432
    • Qty Req: 3
    Our price: $1,867.33 List price: $2,249.80
  • Head
    • Ref No: sku:160433
    • Part No: 160433
    • Qty Req: 1
    Our price: $1,867.33 List price: $2,249.80
  • Vented Plug
    • Ref No: sku:162506
    • Part No: 162506
    • Qty Req: 1
    Our price: $14.86 List price: $17.90
  • Bolt
    • Ref No: sku:180403
    • Part No: 180403
    • Qty Req: 8
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: sku:180441
    • Part No: 180441
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: sku:180446
    • Part No: 180446
    • Qty Req: 8
    Our price: $7.89 List price: $9.50
  • Bolt
    • Ref No: sku:180504
    • Part No: 180504
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: sku:180524
    • Part No: 180524
    • Qty Req: 3
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: sku:180551
    • Part No: 180551
    • Qty Req: 8
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: sku:180609
    • Part No: 180609
    • Qty Req: 6
    Our price: $4.65 List price: $5.60
  • Con Rod Assembly
    • Ref No: sku:600038
    • Part No: 600038
    • Qty Req: 3
    Our price: $312.16 List price: $376.10
  • Valve Kit
    • Ref No: sku:606249
    • Part No: 606249
    • Qty Req: 6
    Our price: $350.34 List price: $422.10
  • Seal Kit
    • Ref No: sku:606250
    • Part No: 606250
    • Qty Req: 3
    Our price: $295.31 List price: $355.80
  • Brass Kit
    • Ref No: sku:606251
    • Part No: 606251
    • Qty Req: 3
    Our price: $560.33 List price: $675.10
