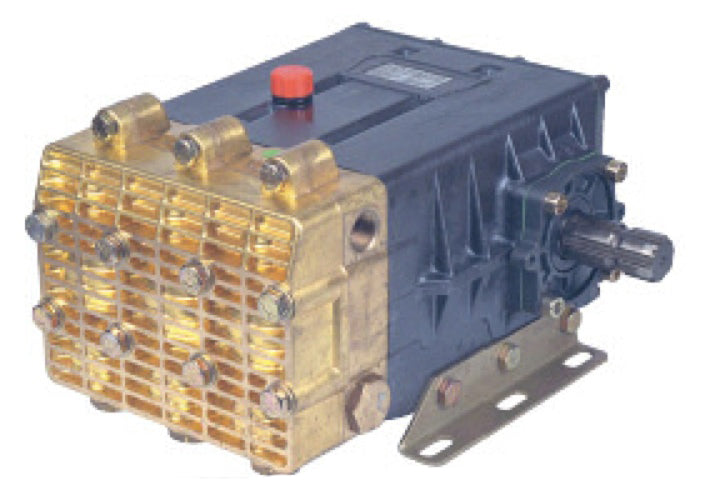

Name: Udor GAMMA-103B TS/1C Plunger Pump
Brand: Udor
SKU: GAMMA103BTS1C
Price: 2944.1 USD
Availability: InStock

Udor GAMMA-103B TS/1C Plunger Pump

Brand:

Udor

Weight:

100.0 lb

Item #

GAMMA103BTS1C

1 1

Udor GAMMA-103B TS/1C Plunger Pump

Brand:

Udor

Weight:

100.0 lb

Item #

GAMMA103BTS1C

$2,944.10

$2,944.10 List Price: ~~$5,888.20~~

We're here to help!

Let us know if you need assistance finding the right spray equipment

Product variants

Earn 8,832 points with this purchase.

See Details

View full details

Product Overview

Udor GAMMA-103B/CC Plunger Pump

28 GPM, 1500 PSI, 25 HP Electric Power Requirement.

Three Cylinder Plunger Pump of Anodized Aluminum, Brass Manifolds, Construction with Ceramic Plungers, (1) Solid 35mm solid keyed shaft and (1) 1-3/8" 6-Spline shaft. Max RPM - 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Features:

•Large Capacity Vented Oil Bath Crank Case

•Solid Ceramic Plungers

•Heat Treated Crank Shaft

•Stainless Steel Check Valves

•1-1/4" Hose Barb Inlet (3-Cylinder), 2" Hose Barb Inlet (6-Cylinder)

•(2) 3/4" Outlets (3-Cylinder), (4) 3/4" Outlets (6-Cylinder)

•Industrial Quality Tapered Roller Bearings

•Heavy Duty Bronze Connecting Rods

•Max. Fluid Temp. 160° F

•Replaceable PTFE Coated Body Guides

Resources

Download Product Manual

Parts breakdown

Diagram

Parts list

Crankshaft
- Ref No: sku:000242
- Part No: 000242
- Qty Req: 1
Our price: $916.90 List price: $1,104.70
Seal
- Ref No: sku:000724a
- Part No: 000724a
- Qty Req: 3
Our price: $14.36 List price: $17.30
Double Lip Seal
- Ref No: sku:000749
- Part No: 000749
- Qty Req: 2
Our price: $24.15 List price: $29.10
Guide
- Ref No: sku:001415
- Part No: 001415
- Qty Req: 3
Our price: $182.18 List price: $219.49
Piston Seal
- Ref No: sku:002101
- Part No: 002101
- Qty Req: 3
Our price: $41.00 List price: $49.40
Rod Guide
- Ref No: sku:011510
- Part No: 011510
- Qty Req: 3
Our price: $57.10 List price: $68.80
Suction Elbow - Brass
- Ref No: sku:020291
- Part No: 020291
- Qty Req: 1
Our price: $54.45 List price: $65.60
Back Cover
- Ref No: sku:0208A4
- Part No: 0208A4
- Qty Req: 1
Our price: $171.31 List price: $206.40
Pump Body
- Ref No: sku:0209A5
- Part No: 0209A5
- Qty Req: 1
Our price: $1,380.95 List price: $1,663.80
Bearing
- Ref No: sku:024808
- Part No: 024808
- Qty Req: 2
Our price: $223.27 List price: $269.00
Slinger Ring
- Ref No: sku:030145
- Part No: 030145
- Qty Req: 3
Our price: $7.64 List price: $9.20
Spreader Ring
- Ref No: sku:030701
- Part No: 030701
- Qty Req: 6
Our price: $6.47 List price: $7.80
Brass Nut
- Ref No: sku:030904
- Part No: 030904
- Qty Req: 3
Our price: $27.72 List price: $33.40
Bearing Flange
- Ref No: sku:0501H3
- Part No: 0501H3
- Qty Req: 2
Our price: $111.55 List price: $134.40
Gasket
- Ref No: sku:060234
- Part No: 060234
- Qty Req: 1
Our price: $23.24 List price: $28.00
Gasket
- Ref No: sku:060279
- Part No: 060279
- Qty Req: 2
Our price: $3.15 List price: $3.80
Suction Nut - Brass
- Ref No: sku:060413
- Part No: 060413
- Qty Req: 1
Our price: $25.40 List price: $30.60
Gasket
- Ref No: sku:060540
- Part No: 060540
- Qty Req: 3
Our price: $2.24 List price: $2.70
Gasket
- Ref No: sku:060542
- Part No: 060542
- Qty Req: 4
Our price: $2.41 List price: $2.90
Gasket
- Ref No: sku:060543
- Part No: 060543
- Qty Req: 4
Our price: $2.82 List price: $3.40
O-Ring
- Ref No: sku:110102
- Part No: 110102
- Qty Req: 1
Our price: $2.66 List price: $3.20
O-Ring
- Ref No: sku:110145
- Part No: 110145
- Qty Req: 6
Our price: $4.81 List price: $5.80
O-Ring
- Ref No: sku:110146
- Part No: 110146
- Qty Req: 5
Our price: $2.57 List price: $3.10
O-Ring
- Ref No: sku:110147
- Part No: 110147
- Qty Req: 6
Our price: $2.24 List price: $2.70
O-Ring
- Ref No: sku:110148
- Part No: 110148
- Qty Req: 2
Our price: $6.89 List price: $8.30
O-Ring
- Ref No: sku:110149
- Part No: 110149
- Qty Req: 3
Our price: $2.57 List price: $3.10
O-Ring
- Ref No: sku:110154
- Part No: 110154
- Qty Req: 3
Our price: $2.49 List price: $3.00
O-Ring
- Ref No: sku:110168
- Part No: 110168
- Qty Req: 1
Our price: $5.81 List price: $7.00
Mounting Rails (Left)
- Ref No: sku:120294
- Part No: 120294
- Qty Req: 2
Our price: $34.86 List price: $42.00
Mounting Rails (Right)
- Ref No: sku:120295
- Part No: 120295
- Qty Req: 2
Our price: $34.86 List price: $42.00
Plunger
- Ref No: sku:120517
- Part No: 120517
- Qty Req: 3
Our price: $227.17 List price: $273.70
PTO Safety Shield (Optional)
- Ref No: sku:121902
- Part No: 121902
- Qty Req: 1
Our price: $41.83 List price: $50.40
Thru-Shaft Protector (Optional)
- Ref No: sku:121915
- Part No: 121915
- Qty Req: 1
Our price: $17.76 List price: $21.40
Lift Ring
- Ref No: sku:1240R9
- Part No: 1240R9
- Qty Req: 1
Our price: $13.61 List price: $16.40
Washer
- Ref No: sku:140305
- Part No: 140305
- Qty Req: 3
Our price: $1.00 List price: $1.20
Washer
- Ref No: sku:140308
- Part No: 140308
- Qty Req: 8
Our price: $2.32 List price: $2.80
Washer
- Ref No: sku:140309
- Part No: 140309
- Qty Req: 2
Our price: $1.33 List price: $1.60
Washer
- Ref No: sku:141102
- Part No: 141102
- Qty Req: 3
Our price: $2.24 List price: $2.70
Lock Washer
- Ref No: sku:141103
- Part No: 141103
- Qty Req: 8
Our price: $1.91 List price: $2.30
Rod Pin
- Ref No: sku:150206
- Part No: 150206
- Qty Req: 3
Our price: $17.93 List price: $21.60
Inlet Adapter
- Ref No: sku:150406
- Part No: 150406
- Qty Req: 2
Our price: $82.50 List price: $99.40
Snap Ring
- Ref No: sku:150615
- Part No: 150615
- Qty Req: 3
Our price: $1.91 List price: $2.30
Plug - Inlet
- Ref No: sku:160330
- Part No: 160330
- Qty Req: 3
Our price: $31.04 List price: $37.40
Inlet Plug 3/4"
- Ref No: sku:160362
- Part No: 160362
- Qty Req: 3
Our price: $11.87 List price: $14.30
Plug
- Ref No: sku:160364
- Part No: 160364
- Qty Req: 2
Our price: $8.47 List price: $10.20
Manifold Plug
- Ref No: sku:160374
- Part No: 160374
- Qty Req: 2
Our price: $13.70 List price: $16.50
Oil Sight Gauge
- Ref No: sku:1603B8
- Part No: 1603B8
- Qty Req: 2
Our price: $16.85 List price: $20.30
Inner Head, Brass
- Ref No: sku:160432
- Part No: 160432
- Qty Req: 3
Our price: $1,867.33 List price: $2,249.80
Head
- Ref No: sku:160433
- Part No: 160433
- Qty Req: 1
Our price: $1,867.33 List price: $2,249.80
Vented Plug
- Ref No: sku:162506
- Part No: 162506
- Qty Req: 1
Our price: $14.86 List price: $17.90
Bolt
- Ref No: sku:180403
- Part No: 180403
- Qty Req: 8
Our price: $2.32 List price: $2.80
Bolt
- Ref No: sku:180441
- Part No: 180441
- Qty Req: 3
Our price: $2.32 List price: $2.80
Bolt
- Ref No: sku:180446
- Part No: 180446
- Qty Req: 8
Our price: $7.89 List price: $9.50
Bolt
- Ref No: sku:180504
- Part No: 180504
- Qty Req: 2
Our price: $2.49 List price: $3.00
Bolt
- Ref No: sku:180524
- Part No: 180524
- Qty Req: 3
Our price: $1.99 List price: $2.40
Bolt
- Ref No: sku:180551
- Part No: 180551
- Qty Req: 8
Our price: $2.49 List price: $3.00
Bolt
- Ref No: sku:180609
- Part No: 180609
- Qty Req: 6
Our price: $4.65 List price: $5.60
Con Rod Assembly
- Ref No: sku:600038
- Part No: 600038
- Qty Req: 3
Our price: $312.16 List price: $376.10
Valve Kit
- Ref No: sku:606249
- Part No: 606249
- Qty Req: 6
Our price: $350.34 List price: $422.10
Seal Kit
- Ref No: sku:606250
- Part No: 606250
- Qty Req: 3
Our price: $295.31 List price: $355.80
Brass Kit
- Ref No: sku:606251
- Part No: 606251
- Qty Req: 3
Our price: $560.33 List price: $675.10
