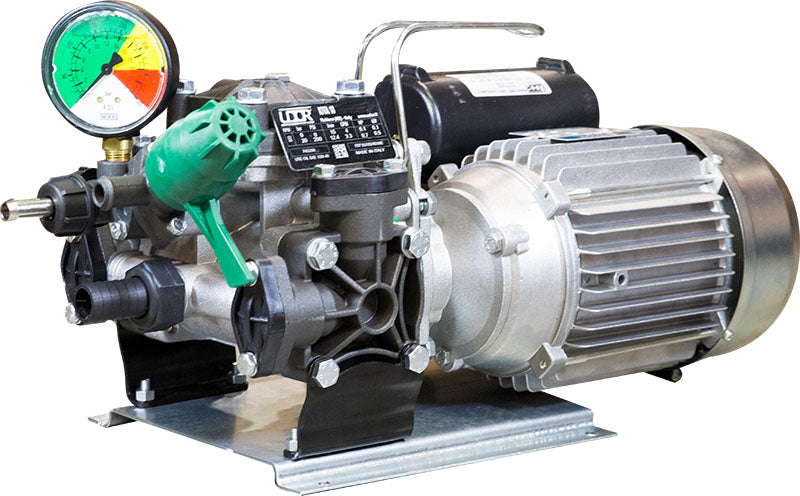

When you want complete control, you need this Udor IOTA-18/m 115 volt diaphragm pump that features a manual reset, handle and base plate for overload protection. The anodized aluminum construction makes this unit durable. The Udor quality is seen in every part of the pump, offering you the knowledge that it is ready to handle all your needs.

IOTA-18 pump with 115V TEFC motor w/ 10 amp draw. Complete with on/off switch, overload protection with manual reset, handle & base plate. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Download Product Manual

• Max flow: 4.5 gpm
• Max pressure: 200 psi
• Includes 6010.23 control unit and 115V TEFC motor
• Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Max fluid temperature: 140°F
• Weight: 33 lbs
