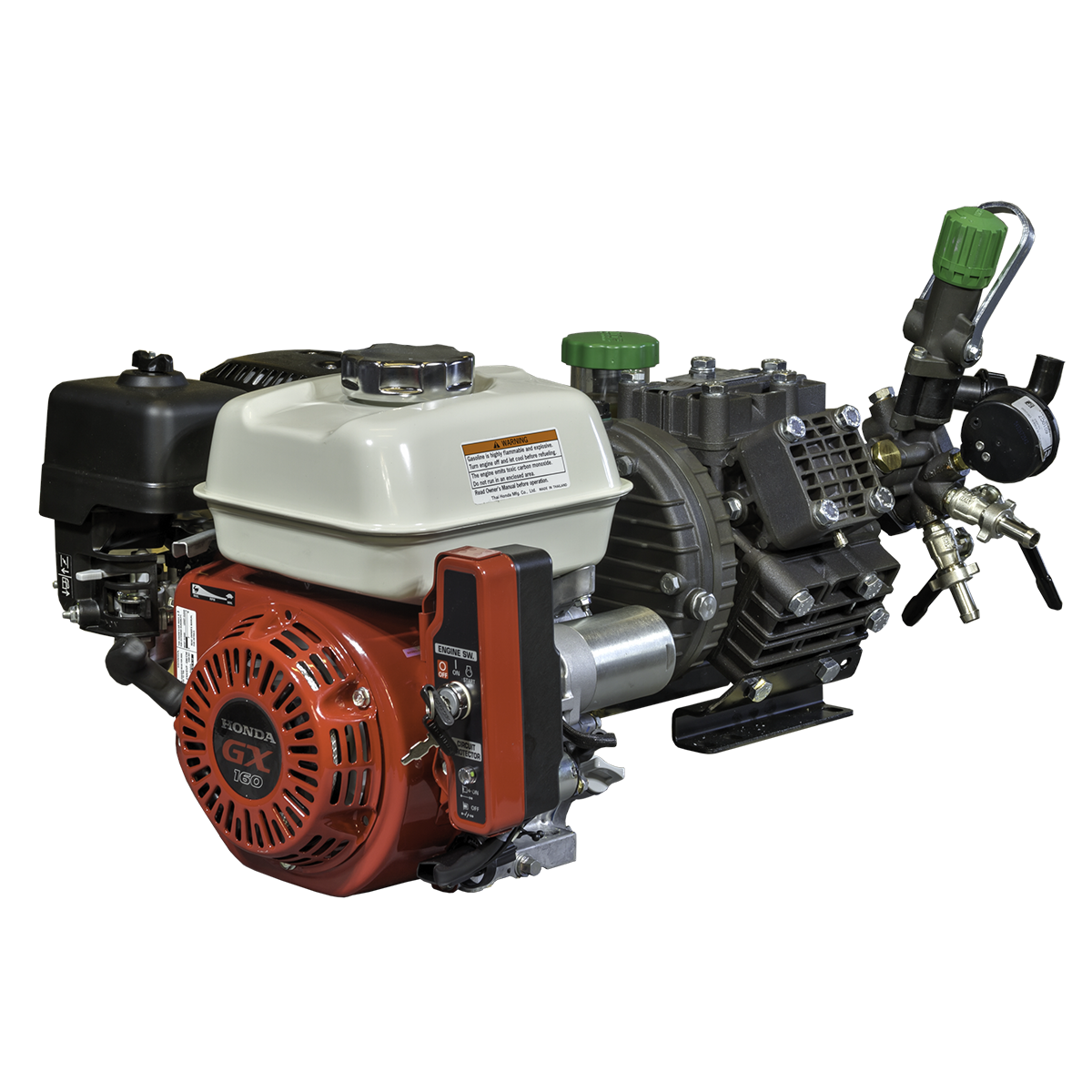

The Udor KAPPA-55/GR5 & Honda GX160 Electric Engine Assembly conveniently combines a powerful three diaphragm pump and a quiet, reliable electric start engine to create a versatile assembly that can be put towards such diverse applications as pressure washing, lawn and garden care, and industrial and agricultural equipment. Simply attach to a rig to quickly construct your own high performance sprayer.

KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions Ð without sacrificing power output or performance.

GXK55E

• Max flow: 15 gpm
• Max pressure: 350 psi
• Includes 6010.24/LP control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
• Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Max fluid temperature: 140°F
• Weight: 47 lbs Honda GX160 Engine:
• Engine type: Air-cooled 4-stroke OHV
• Starting sytem: Electric or recoil starter
• Shaft: 3/4" solid keyed
• Bore x stroke: 68 x 45 mm
• Displacement: 163 cm3
• Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
• Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
• PTO shaft rotation: Counterclockwise from PTO shaft side
• Compression ratio: 9.0 : 1
• Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
• Carburetor: Butterfly
• Ignition system: Transistorized magneto
• Lubrication system: Splash
• Governor system: Centrifugal mechanical
• Air cleaner: Dual element
• Oil capacity: 0.61 US qt. (0.58 L)
• Fuel tank capacity: 3.3 US qts (3.1 liters)
• Fuel: Unleaded 86 octane or higher
• Dry weight 33 lbs (15.1 kg)
• Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)
