Udor MC 13/20-GR Plunger Pump

Udor MC 13/20-GR Plunger Pump

Brand:
Udor
Weight:
33.0 lb
Item #
MC1320GR
1 1

Udor MC 13/20-GR Plunger Pump

Udor MC 13/20-GR Plunger Pump

Brand:
Udor
Weight:
33.0 lb
Item #
MC1320GR

$625.73
$625.73 List Price: $1,251.45

Free Shipping on Qualified Orders Over $100

In stock orders placed within

16 hrs 12 minsship out same day. Learn more

Earn 1,877 points with this purchase.

See Details

View full details

Product Overview

Udor MC 13/20-GR Plunger Pump

3.5 gpm, 3000 psi, 9 HP Gas Engine Power Requirement

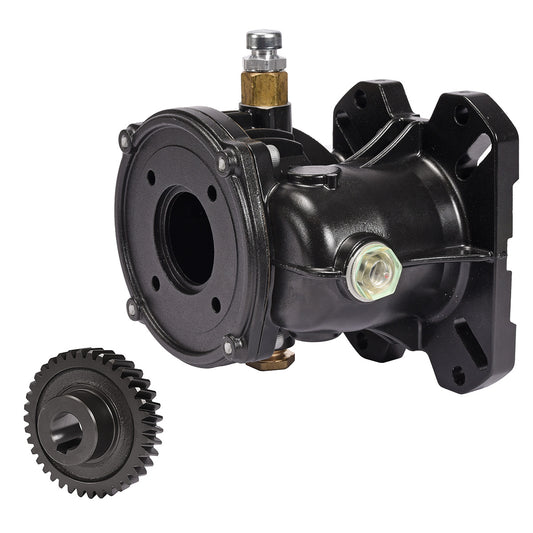

1" or 1-1/8" Hollow Shaft 2.2:1 Gear Reduction. Please specify the shaft size you require when ordering.

Features:

•9-1/2" L x 8-1/2" W x 4-1/2" H (Solid Shaft Model)

•1/2" Inlet 3/8" Outlet

•Brass Manifold

•Solid Ceramic Plungers

•Heat Treated Crankshaft

•Stainless Steel Check Valves

•Stainless Steel Piston Guides

•Direct Drive

•Electric Flange Models

•Industrial Quality Tapered Roller Bearings

•Replaceable PTFE Coated Body Guides

•Max. Fluid Temp. 160°F

•High Strength Aluminum Alloy Connecting Rods

•Heavy Duty Flat Base High Pressure Seals

•20 oz. Capacity Vented Oil Bath Crank Case

Download Product Manual

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000739
    • Part No: 000739
    • Qty Req: 3
    Our price: $13.70 List price: $16.50
  • Shaft Seal
    • Ref No: sku:000740
    • Part No: 000740
    • Qty Req: 1
    Our price: $16.77 List price: $20.20
  • Plunger Rod
    • Ref No: sku:001432
    • Part No: 001432
    • Qty Req: 3
    Our price: $44.74 List price: $53.90
  • Support Ring
    • Ref No: sku:002321
    • Part No: 002321
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • Crankshaft
    • Ref No: sku:002816
    • Part No: 002816
    • Qty Req: 1
    Our price: $209.74 List price: $252.70
  • Aluminum Connecting Rod
    • Ref No: sku:010339
    • Part No: 010339
    • Qty Req: 3
    Our price: $62.58 List price: $75.40
  • Rod Guide
    • Ref No: sku:011507
    • Part No: 011507
    • Qty Req: 3
    Our price: $18.92 List price: $22.80
  • Back Cover
    • Ref No: sku:020869
    • Part No: 020869
    • Qty Req: 1
    Our price: $28.97 List price: $34.90
  • Crankcase
    • Ref No: sku:020971
    • Part No: 020971
    • Qty Req: 1
    Our price: $245.85 List price: $296.20
  • Bearing
    • Ref No: sku:024802
    • Part No: 024802
    • Qty Req: 2
    Our price: $111.39 List price: $134.20
  • Slinger Ring
    • Ref No: sku:030155
    • Part No: 030155
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Plunger Nut
    • Ref No: sku:030318
    • Part No: 030318
    • Qty Req: 3
    Our price: $4.90 List price: $5.90
  • Bearing Cap
    • Ref No: sku:0501D8
    • Part No: 0501D8
    • Qty Req: 1
    Our price: $32.29 List price: $38.90
  • Bearing Cap
    • Ref No: sku:0501D9
    • Part No: 0501D9
    • Qty Req: 1
    Our price: $28.80 List price: $34.70
  • Gasket Back Cover
    • Ref No: sku:060277
    • Part No: 060277
    • Qty Req: 1
    Our price: $8.38 List price: $10.10
  • Aluminum Gasket
    • Ref No: sku:060509
    • Part No: 060509
    • Qty Req: 2
    Our price: $1.74 List price: $2.10
  • Gasket
    • Ref No: sku:060540
    • Part No: 060540
    • Qty Req: 2
    Our price: $2.24 List price: $2.70
  • Gasket
    • Ref No: sku:060549
    • Part No: 060549
    • Qty Req: 1
    Our price: $2.32 List price: $2.80
  • Key
    • Ref No: sku:080117
    • Part No: 080117
    • Qty Req: 1
    Our price: $4.57 List price: $5.50
  • O-Ring
    • Ref No: sku:110160
    • Part No: 110160
    • Qty Req: 3
    Our price: $2.41 List price: $2.90
  • O-Ring
    • Ref No: sku:110182
    • Part No: 110182
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • O-Ring
    • Ref No: sku:1101A2
    • Part No: 1101A2
    • Qty Req: 6
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:1101A3
    • Part No: 1101A3
    • Qty Req: 6
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:1101F6
    • Part No: 1101F6
    • Qty Req: 2
    Our price: $4.98 List price: $6.00
  • Plunger
    • Ref No: sku:120530a
    • Part No: 120530a
    • Qty Req: 3
    Our price: $49.84 List price: $60.05
  • Plunger Washer
    • Ref No: sku:140332
    • Part No: 140332
    • Qty Req: 3
    Our price: $2.41 List price: $2.90
  • Washer
    • Ref No: sku:141102
    • Part No: 141102
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Connecting Rod Pin
    • Ref No: sku:150213
    • Part No: 150213
    • Qty Req: 3
    Our price: $6.97 List price: $8.40
  • Shim
    • Ref No: sku:153401
    • Part No: 153401
    • Qty Req: 1
    Our price: $5.15 List price: $6.20
  • Shim
    • Ref No: sku:153402
    • Part No: 153402
    • Qty Req: 1
    Our price: $3.98 List price: $4.80
  • Plug
    • Ref No: sku:160360
    • Part No: 160360
    • Qty Req: 6
    Our price: $17.76 List price: $21.40
  • Inlet Plug 3/4"
    • Ref No: sku:160362
    • Part No: 160362
    • Qty Req: 2
    Our price: $11.87 List price: $14.30
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Plug
    • Ref No: sku:160367
    • Part No: 160367
    • Qty Req: 1
    Our price: $8.55 List price: $10.30
  • Oil Sight Glass
    • Ref No: sku:160369
    • Part No: 160369
    • Qty Req: 1
    Our price: $11.87 List price: $14.30
  • Manifold
    • Ref No: sku:160458
    • Part No: 160458
    • Qty Req: 1
    Our price: $424.13 List price: $511.00
  • Bolt
    • Ref No: sku:180402
    • Part No: 180402
    • Qty Req: 8
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: sku:180426
    • Part No: 180426
    • Qty Req: 5
    Our price: $1.91 List price: $2.30
  • Bolt
    • Ref No: sku:180457
    • Part No: 180457
    • Qty Req: 8
    Our price: $1.99 List price: $2.40
  • Dip Stick
    • Ref No: sku:605859
    • Part No: 605859
    • Qty Req: 1
    Our price: $7.47 List price: $9.00
