B&G 1 Gallon 9" Ext. Extenda-Ban Sprayer

B&G 1 Gallon 9" Ext. Extenda-Ban Sprayer

Brand:
B & G Equipment
Weight:
10.0 lb
Item #
N124S9
1 1

B&G 1 Gallon 9" Ext. Extenda-Ban Sprayer

B&G 1 Gallon 9" Ext. Extenda-Ban Sprayer

Brand:
B & G Equipment
Weight:
10.0 lb
Item #
N124S9

$345.00
$345.00 List Price: $424.88

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,035 points with this purchase.

See Details

View full details

Product Overview

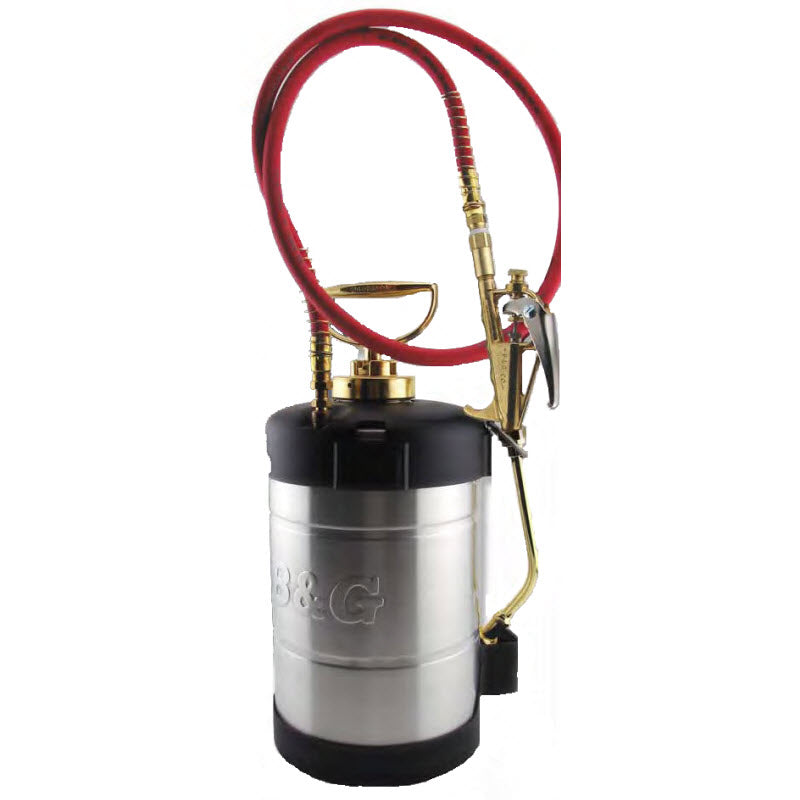

1 Gallon Stainless Steel 9" Extenda-Ban Handheld Sprayer from B&G.

Extenda-Ban Sprayers Include the following features:

-Extenda-Ban: Top quality valve for instant tip shut-off.

-4 Way Multeejet Tip (except where noted): with fine fan, coarse fan, pin stream, and either a Crack & Crevice straw or orifice ('"CC") or a second pin stream ("S").

-The B&G 4-Way Tip meets the labeling requirements of most modern insecticides.
1/2 gal = 2 L
1 gal = 4 L
2 gal = 7.6 L
3 gal = 11.3 L

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Siphon Tube 1 Gallon
    • Ref No: 2
    • Part No: OS297
    • Qty Req: 1
    Our price: $11.99 List price: $12.62
  • 1/8" Hose Adapter
    • Ref No: 3
    • Part No: HA298
    • Qty Req: 1
    Our price: $11.02 List price: $11.60
  • Tank Bottom (1 Gallon only)
    • Ref No: 4
    • Part No: TB1
    • Qty Req: 1
    Our price: $11.10 List price: $11.68
  • Tank Top (1 Gallon only)
    • Ref No: 5
    • Part No: TT1
    • Qty Req: 1
    Our price: $10.81 List price: $11.38
  • Tip Holder
    • Ref No: 8
    • Part No: 5700H
    • Qty Req: 1
    Our price: $6.57 List price: $6.92
  • 4' Red Hose
    • Ref No: 9
    • Part No: D50
    • Qty Req: 1
    Our price: $30.31 List price: $31.90
  • Hose Washer
    • Ref No: 10
    • Part No: D51P
    • Qty Req: 1
    Our price: $1.36 List price: $1.43
  • Pump Assembly (1 Gallon)
    • Ref No: 11
    • Part No: PO265
    • Qty Req: 1
    Our price: $150.27 List price: $158.18
  • Brass Pump Handle
    • Ref No: 12
    • Part No: P275
    • Qty Req: 1
    Our price: $47.79 List price: $50.30
  • Pump Lock Spring
    • Ref No: 13
    • Part No: P276
    • Qty Req: 1
    Our price: $1.36 List price: $1.43
  • Brass Pump Cap
    • Ref No: 14
    • Part No: P274
    • Qty Req: 1
    Our price: $50.56 List price: $53.22
  • Plunger Rod (1 Gallon)
    • Ref No: 15
    • Part No: PO273
    • Qty Req: 1
    Our price: $13.13 List price: $13.82
  • Plunger Nut S.S.
    • Ref No: 16
    • Part No: P269SS
    • Qty Req: 1
    Our price: $1.47 List price: $1.55
  • Back Plate
    • Ref No: 17
    • Part No: P272
    • Qty Req: 1
    Our price: $3.90 List price: $4.10
  • Poly Cup
    • Ref No: 18
    • Part No: NP277
    • Qty Req: 1
    Our price: $4.01 List price: $4.22
  • Leather Cup
    • Ref No: 18
    • Part No: NP271
    • Qty Req: 1
    Our price: $6.57 List price: $6.92
  • Cup Spreader Plate
    • Ref No: 19
    • Part No: NP270
    • Qty Req: 1
    Our price: $4.99 List price: $5.25
  • Lock Washer
    • Ref No: 20
    • Part No: P269A
    • Qty Req: 1
    Our price: $1.30 List price: $1.37
  • Pump Gasket
    • Ref No: 21
    • Part No: P268
    • Qty Req: 1
    Our price: $5.46 List price: $5.75
  • Pump Tube (1 Gallon)
    • Ref No: 22
    • Part No: PO267
    • Qty Req: 1
    Our price: $39.41 List price: $41.48
  • Check Valve
    • Ref No: 23
    • Part No: PV266
    • Qty Req: 3
    Our price: $5.49 List price: $5.78
  • Extenda-Ban 9" Valve (Less Tip)
    • Ref No: 24
    • Part No: 120
    • Qty Req: 1
    Our price: $220.37 List price: $231.97
  • Extenda-Ban 18" Valve (Less Tip)
    • Ref No: 24
    • Part No: 220
    • Qty Req: 1
    Our price: $231.21 List price: $243.38
  • Extenda-Ban 24" Valve (Less Tip)
    • Ref No: 24
    • Part No: 420
    • Qty Req: 1
    Our price: $204.73 List price: $215.50
  • Extenda-Ban 36" Valve (Less Tip)
    • Ref No: 24
    • Part No: 530
    • Qty Req: 1
    Our price: $205.16 List price: $215.96
  • Valve Body Kit
    • Ref No: 25
    • Part No: VB147
    • Qty Req: 1
    Our price: $89.24 List price: $93.93
  • Valve Trigger Kit
    • Ref No: 26
    • Part No: VT140
    • Qty Req: 1
    Our price: $21.25 List price: $22.37
  • Packing Nut
    • Ref No: 30
    • Part No: PN1502
    • Qty Req: 1
    Our price: $16.15 List price: $17.00
  • Valve Packing
    • Ref No: 31
    • Part No: VP151
    • Qty Req: 3
    Our price: $5.30 List price: $5.58
  • Adjusting Screw
    • Ref No: 34
    • Part No: AS148
    • Qty Req: 1
    Our price: $12.14 List price: $12.78
  • Safety Lock Nut
    • Ref No: 36
    • Part No: SL162
    • Qty Req: 1
    Our price: $5.92 List price: $6.23
  • 50 Mesh Strainer Gasket
    • Ref No: 37
    • Part No: MS14550
    • Qty Req: 1
    Our price: $11.70 List price: $12.32
  • Nylon Gasket
    • Ref No: 39
    • Part No: NG146
    • Qty Req: 3
    Our price: $2.58 List price: $2.72
  • Strainer Housing
    • Ref No: 40
    • Part No: SA143
    • Qty Req: 1
    Our price: $15.34 List price: $16.15
  • 9" Valve Cable
    • Ref No: 41
    • Part No: VC152
    • Qty Req: 1
    Our price: $36.46 List price: $38.38
  • 18" Valve Cable
    • Ref No: 41
    • Part No: VC153
    • Qty Req: 1
    Our price: $38.25 List price: $40.27
  • 24" Valve Cable
    • Ref No: 41
    • Part No: VC163
    • Qty Req: 1
    Our price: $47.72 List price: $50.23
  • 36" Valve Cable
    • Ref No: 41
    • Part No: VC165
    • Qty Req: 1
    Our price: $57.52 List price: $60.55
  • 9" Brass Extension
    • Ref No: 42
    • Part No: VE154
    • Qty Req: 1
    Our price: $37.98 List price: $39.98
  • 18" Brass Extension
    • Ref No: 42
    • Part No: VE155
    • Qty Req: 1
    Our price: $50.02 List price: $52.65
  • 24" Brass Extension
    • Ref No: 42
    • Part No: VE164
    • Qty Req: 1
    Our price: $49.61 List price: $52.22
  • 36" Brass Extension
    • Ref No: 42
    • Part No: VE166
    • Qty Req: 1
    Our price: $49.61 List price: $52.22
  • Valve Spring
    • Ref No: 43
    • Part No: VS156
    • Qty Req: 1
    Our price: $2.93 List price: $3.08
  • Stem Nut
    • Ref No: 44
    • Part No: SSL157
    • Qty Req: 1
    Our price: $5.61 List price: $5.90
  • Seat Stem
    • Ref No: 45
    • Part No: SS158
    • Qty Req: 1
    Our price: $4.53 List price: $4.77
  • Soft Seat Gasket
    • Ref No: 46
    • Part No: SP159
    • Qty Req: 1
    Our price: $11.97 List price: $12.60
  • Multeejet C&C Tip Assembly (48-52)
    • Ref No: 47
    • Part No: 5850CC
    • Qty Req: 1
    Our price: $66.66 List price: $70.17
  • Multeejet C&C Tip Holder
    • Ref No: 48
    • Part No: 9751M
    • Qty Req: 1
    Our price: $30.43 List price: $32.03
  • Viton Gasket
    • Ref No: 49
    • Part No: 4190
    • Qty Req: 3
    Our price: $3.04 List price: $3.20
  • Multeejet C&C Tip
    • Ref No: 50
    • Part No: 5800CC
    • Qty Req: 1
    Our price: $30.84 List price: $32.47
  • Tip Retainer
    • Ref No: 51
    • Part No: 4596
    • Qty Req: 1
    Our price: $14.77 List price: $15.55
  • Crack & Crevice Extension
    • Ref No: 52
    • Part No: 5700B
    • Qty Req: 1
    Our price: $19.22 List price: $20.23
