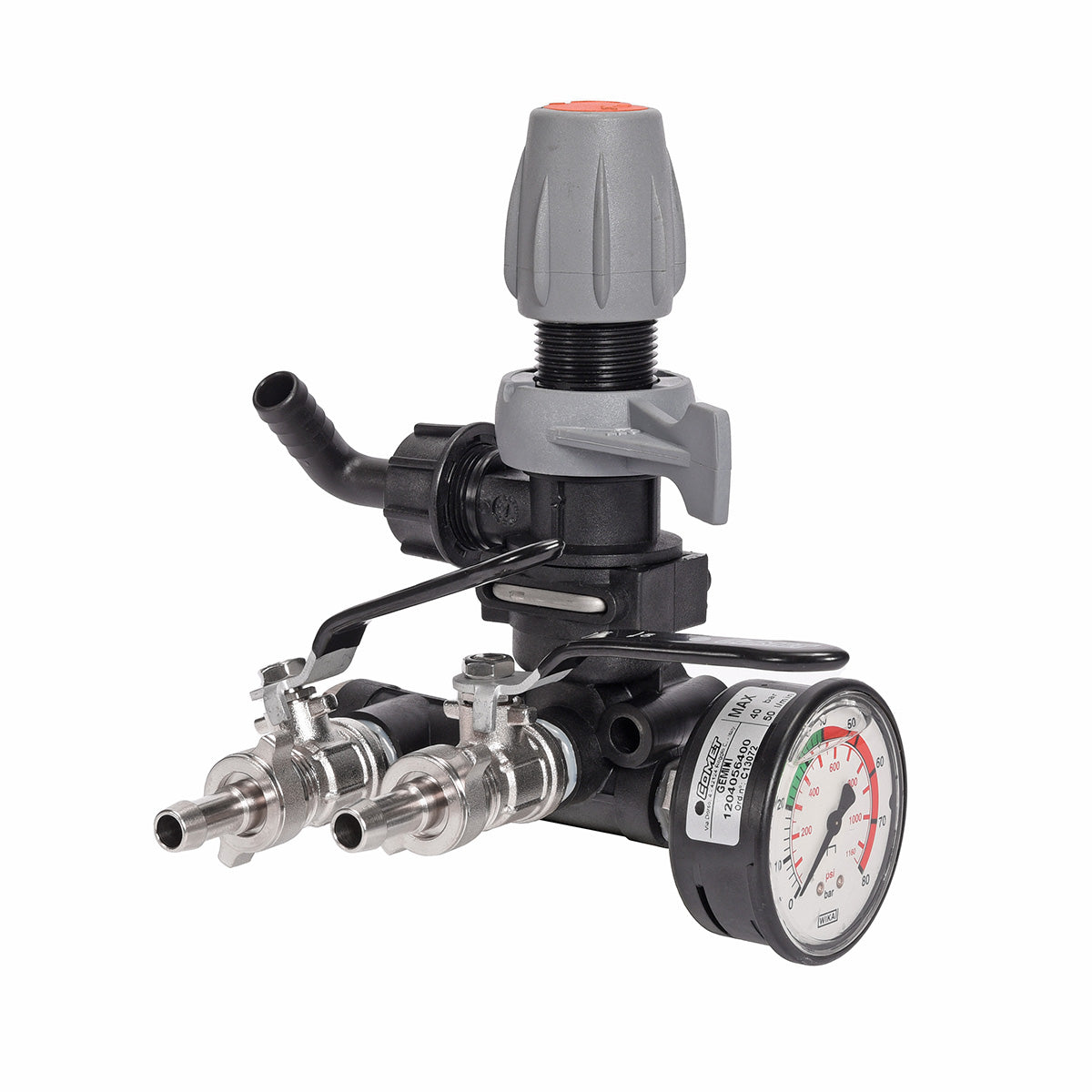

Name: 1204/564 APS41 Control Unit
Brand: Comet
SKU: 1204564
Price: 197.53 USD
Availability: InStock

1204/564 APS41 Control Unit

Brand:

Comet

Weight:

2.5 lb

Item #

1204564

1 1

1204/564 APS41 Control Unit

Brand:

Comet

Weight:

2.5 lb

Item #

1204564

$197.53

$197.53 List Price: ~~$282.19~~

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Product variants

Earn 593 points with this purchase.

See Details

View full details

Product Overview

The control unit works with your APS41 and APS41TS Comet pumps, giving you more control over how you use your pumping and spraying equipment. Use the pressure knob and manual dump lever to make adjustments of any capacity while operating your pump. The control unit includes two 3/8" ball valve outlets and 3/4" hose barb bypass.

Manufacturer description

The Comet 1204.0564.00 Pressure Regulator will attach to the Comet APS41 Diaphragm Pumps in order to regulate and maintain pressure. The pressure regulator also comes assembled on the Comet APS41GR version as well. It is important to note that every diaphragm pump requires the use of a pressure regulator. If you don't order a version that includes a regulator, for instance the Comet APS41, then you will have to purchase the regulator separately.

Features

Max flow: 15 gpm
Max pressure: 560 psi
Port sizes: (2) 3/8" ball valve outlets, 1/2" HB bypass
Includes pressure gauge, adjustable pressure knob, and manual dump lever
Weight: 3 lbs

Parts breakdown

Diagram

Parts list

Plug
- Ref No: 1
- Part No: 3202256
- Qty Req: 1
Our price: $3.09 List price: $3.63
Adjustable Nut
- Ref No: 2
- Part No: 122399
- Qty Req: 1
Our price: $8.47 List price: $9.96
Lever
- Ref No: 4
- Part No: 160076
- Qty Req: 1
Our price: $10.64 List price: $12.52
Spring
- Ref No: 5
- Part No: 1802212
- Qty Req: 1
Our price: $10.72 List price: $12.61
Ring
- Ref No: 7
- Part No: 9266
- Qty Req: 1
Our price: $8.38 List price: $9.86
Guide
- Ref No: 8
- Part No: 242627
- Qty Req: 1
Our price: $18.63 List price: $21.92
O-Ring
- Ref No: 9
- Part No: 121072
- Qty Req: 1
Our price: $5.39 List price: $6.34
O-Ring
- Ref No: 10
- Part No: 1210461
- Qty Req: 1
Our price: $0.73 List price: $0.86
Body
- Ref No: 12
- Part No: 424432
- Qty Req: 1
Our price: $43.25 List price: $50.88
O-Ring
- Ref No: 13
- Part No: 121079
- Qty Req: 1
Our price: $1.02 List price: $1.20
Plunger
- Ref No: 14
- Part No: 36000114
- Qty Req: 1
Our price: $25.67 List price: $30.20
O-Ring
- Ref No: 16
- Part No: 12100021
- Qty Req: 1
Our price: $0.90 List price: $1.06
Valve Seat
- Ref No: 15
- Part No: 3009133
- Qty Req: 1
Our price: $7.35 List price: $8.65
Body
- Ref No: 18
- Part No: 424369
- Qty Req: 1
Our price: $44.63 List price: $52.50
Reducer
- Ref No: 19
- Part No: 28256
- Qty Req: 1
Our price: $11.22 List price: $13.20
Wing Nut
- Ref No: 21
- Part No: 12000059
- Qty Req: 1
Our price: $3.04 List price: $3.58
Bypass Barb 1/2"
- Ref No: 22
- Part No: 28010080
- Qty Req: 1
Our price: $10.64 List price: $12.52
O-Ring
- Ref No: 23
- Part No: 12100036
- Qty Req: 1
Our price: $0.71 List price: $0.84
Pin
- Ref No: 24
- Part No: 300527
- Qty Req: 1
Our price: $1.23 List price: $1.45
Hook
- Ref No: 25
- Part No: 12020051
- Qty Req: 1
Our price: $10.51 List price: $12.37
Plug
- Ref No: 26
- Part No: 32000007
- Qty Req: 1
Our price: $31.94 List price: $37.58
Wing Nut
- Ref No: 27
- Part No: 12000038
- Qty Req: 1
Our price: $8.11 List price: $9.54
Hose Barb
- Ref No: 28
- Part No: 28020018
- Qty Req: 1
Our price: $7.61 List price: $8.95
Gasket
- Ref No: 29
- Part No: 12090013
- Qty Req: 1
Our price: $0.90 List price: $1.06
O-Ring
- Ref No: 50
- Part No: 12100447
- Qty Req: 1
Our price: $0.68 List price: $0.80
Ball Valve
- Ref No: 31
- Part No: 121415
- Qty Req: 1
Our price: $89.08 List price: $104.80
Left Tap
- Ref No: 30
- Part No: 28260030
- Qty Req: 1
Our price: $69.50 List price: $81.76
Hose Adapter
- Ref No: 51
- Part No: 28030468
- Qty Req: 1
Our price: $22.67 List price: $26.67
Washer
- Ref No: 52
- Part No: 28110004
- Qty Req: 4
Our price: $0.48 List price: $0.56
Screw
- Ref No: 53
- Part No: 36090165
- Qty Req: 2
Our price: $1.41 List price: $1.66
Hose Tail
- Ref No: 54
- Part No: 28030474
- Qty Req: 1
Our price: $22.66 List price: $26.66
