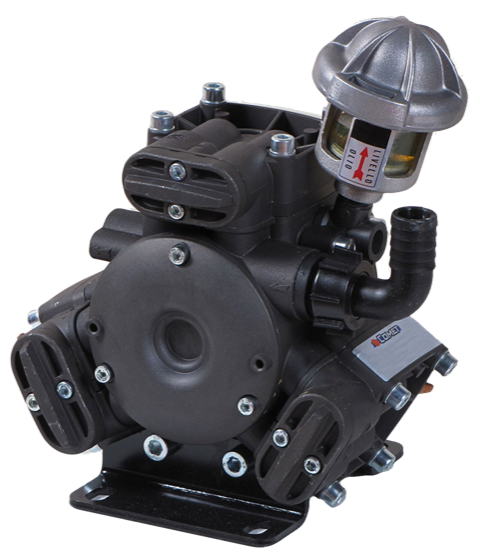

Comet APS41 Diaphragm Pump

Comet APS41 Diaphragm Pump

Brand:
Comet
Weight:
21.25 lb
Item #
APS41
6 reviews
Skip to product information
1 of 1

Comet APS41 Diaphragm Pump

Comet APS41 Diaphragm Pump

Brand:
Comet
Weight:
21.25 lb
Item #
APS41
6 reviews

Regular price $779.00
Sale price $779.00 Regular price List Price: $1,346.21

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,337 points with this purchase.

View full details

Collapsible content

Product Overview

The anodized aluminum body of this Comet diaphragm pump make it impervious to agricultural chemicals and allow it to sustain immense pressures of about 580 PSI while delivering up to 11 gpm. Because of its universal drive face and convenient mounting rails, this is one of the easiest industrial pumps to use on the job.

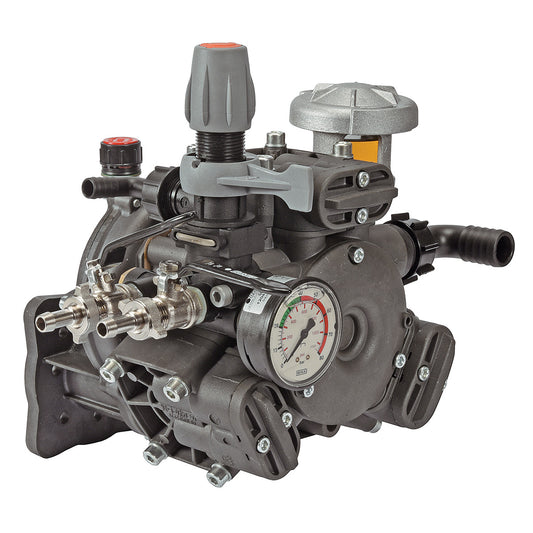

**Regulator shown in picture sold separately**

Manufacturer description

Three diaphragm pump with universal drive face and mounting rails. The APS Series are constructed of anodized aluminum for maximum pressure, while maintaining resistance to most agricultural chemicals.

Features

  • Max flow: 11 gpm
  • Max pressure: 580 psi
  • Max rpm: 550
  • Port sizes: 1" HB inlet, 3/8" HB outlet
  • Shaft: Flanged for shaft kit or gearbox
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Buna standard Desmopan® and Viton® available
  • Housing: Anodized aluminum
  • Recommended pressure regulator: 1204.0564.00 (1204/564)
  • Recommended gearbox: 5005/216 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 22 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Snap Ring
    • Ref No: 1
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.39 List price: $7.52
  • Oil Seal
    • Ref No: 2
    • Part No: 00190085
    • Qty Req: 1
    Our price: $22.91 List price: $26.95
  • Shaft
    • Ref No: 3
    • Part No: 00010444
    • Qty Req: 1
    Our price: $496.07 List price: $583.61
  • Connecting Rod Ring
    • Ref No: 4
    • Part No: 00100026
    • Qty Req: 2
    Our price: $25.31 List price: $29.78
  • Ball Bearing
    • Ref No: 5
    • Part No: 04380001
    • Qty Req: 1
    Our price: $179.27 List price: $210.91
  • Snap Ring
    • Ref No: 6
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.53 List price: $5.33
  • Ball Bearing
    • Ref No: 7
    • Part No: 04380066
    • Qty Req: 1
    Our price: $43.99 List price: $51.75
  • Pump Crankcase
    • Ref No: 8
    • Part No: 04030147
    • Qty Req: 1
    Our price: $485.61 List price: $571.31
  • Pump Mounting Bracket
    • Ref No: 10
    • Part No: 24000089
    • Qty Req: 2
    Our price: $18.16 List price: $21.36
  • Screw
    • Ref No: 11
    • Part No: 36090179
    • Qty Req: 2
    Our price: $7.77 List price: $9.14
  • Oil Plug
    • Ref No: 12
    • Part No: 32000080
    • Qty Req: 1
    Our price: $5.17 List price: $6.08
  • Diaphragm Holder Screw
    • Ref No: 13
    • Part No: 36050027
    • Qty Req: 2
    Our price: $13.70 List price: $16.12
  • Disc
    • Ref No: 14
    • Part No: 06020033
    • Qty Req: 3
    Our price: $11.65 List price: $13.70
  • Piston Diaphragm, Buna - Comet Diaphragm Pump APS41 / MC25 / MP20/30
    • Ref No: 15
    • Part No: 18000020
    • Qty Req: 3
    Our price: $15.00 List price: $17.65
  • Piston Sleeve
    • Ref No: 16
    • Part No: 04000080
    • Qty Req: 3
    Our price: $115.27 List price: $135.61
  • Compression Ring
    • Ref No: 17
    • Part No: 00200010
    • Qty Req: 3
    Our price: $9.67 List price: $11.38
  • Piston
    • Ref No: 18
    • Part No: 24090097
    • Qty Req: 3
    Our price: $64.34 List price: $75.69
  • Connecting Rod Assembly (Set of 3)
    • Ref No: 19
    • Part No: 02050069
    • Qty Req: 1
    Our price: $125.83 List price: $148.04
  • Pin
    • Ref No: 20
    • Part No: 30110024
    • Qty Req: 3
    Our price: $11.33 List price: $13.33
  • Snap Ring
    • Ref No: 21
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.44 List price: $0.52
  • Screw
    • Ref No: 22
    • Part No: 36090165
    • Qty Req: 2
    Our price: $1.41 List price: $1.66
  • Washer
    • Ref No: 23
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.48 List price: $0.56
  • Standard Hose Adapter
    • Ref No: 24
    • Part No: 28030467
    • Qty Req: 1
    Our price: $21.99 List price: $25.87
  • O-Ring
    • Ref No: 25
    • Part No: 12100447
    • Qty Req: 1
    Our price: $0.68 List price: $0.80
  • Standard Hose Adapter Kit
    • Ref No: 26
    • Part No: 50040151
    • Qty Req: 1
    Our price: $22.66 List price: $26.66
  • Cover
    • Ref No: 27
    • Part No: 04020141
    • Qty Req: 1
    Our price: $5.92 List price: $6.96
  • O-Ring
    • Ref No: 28
    • Part No: 12100122
    • Qty Req: 1
    Our price: $2.36 List price: $2.78
  • Oil Neck Glass
    • Ref No: 29
    • Part No: 04210015
    • Qty Req: 1
    Our price: $15.85 List price: $21.13
  • O-Ring
    • Ref No: 30
    • Part No: 12100233
    • Qty Req: 1
    Our price: $0.48 List price: $0.56
  • Oil Cup Assembly
    • Ref No: 33
    • Part No: 12080013
    • Qty Req: 1
    Our price: $33.13 List price: $38.98
  • Screw
    • Ref No: 32
    • Part No: 36090002
    • Qty Req: 2
    Our price: $1.73 List price: $2.04
  • Screw
    • Ref No: 36
    • Part No: 36090014
    • Qty Req: 12
    Our price: $2.14 List price: $2.52
  • Right Head
    • Ref No: 38
    • Part No: 32180308
    • Qty Req: 2
    Our price: $86.11 List price: $101.31
  • Valve Spring
    • Ref No: 40
    • Part No: 18020177
    • Qty Req: 6
    Our price: $1.73 List price: $2.04
  • Valve Plate
    • Ref No: 41
    • Part No: 36040007
    • Qty Req: 4
    Our price: $2.66 List price: $3.13
  • O-Ring
    • Ref No: 43
    • Part No: 12100451
    • Qty Req: 6
    Our price: $7.07 List price: $8.32
  • Valve Assembly
    • Ref No: 44
    • Part No: 12200052
    • Qty Req: 6
    Our price: $19.99 List price: $23.52
  • O-Ring
    • Ref No: 45
    • Part No: 12100015
    • Qty Req: 6
    Our price: $2.01 List price: $2.37
  • Valve Plug
    • Ref No: 46
    • Part No: 32020259
    • Qty Req: 3
    Our price: $38.35 List price: $45.12
  • Screw
    • Ref No: 47
    • Part No: 36090032
    • Qty Req: 12
    Our price: $0.97 List price: $1.14
  • O-Ring
    • Ref No: 48
    • Part No: 12100145
    • Qty Req: 1
    Our price: $1.04 List price: $1.22
  • Nipple
    • Ref No: 49
    • Part No: 20000100
    • Qty Req: 1
    Our price: $4.89 List price: $5.75
  • O-Ring
    • Ref No: 50
    • Part No: 12100048
    • Qty Req: 1
    Our price: $0.90 List price: $1.06
  • Supply Elbow 1"
    • Ref No: 51
    • Part No: 28010075
    • Qty Req: 1
    Our price: $14.96 List price: $17.60
  • Wing Nut
    • Ref No: 52
    • Part No: 12000049
    • Qty Req: 1
    Our price: $9.03 List price: $10.62
  • Left Head
    • Ref No: 54
    • Part No: 32180309
    • Qty Req: 1
    Our price: $86.11 List price: $101.31
  • O-Ring
    • Ref No: 55
    • Part No: 12100101
    • Qty Req: 1
    Our price: $1.58 List price: $1.86
  • O-Ring
    • Ref No: 56
    • Part No: 12100225
    • Qty Req: 1
    Our price: $3.88 List price: $4.57
  • Manifold
    • Ref No: 57
    • Part No: 10090181
    • Qty Req: 1
    Our price: $62.70 List price: $73.77
