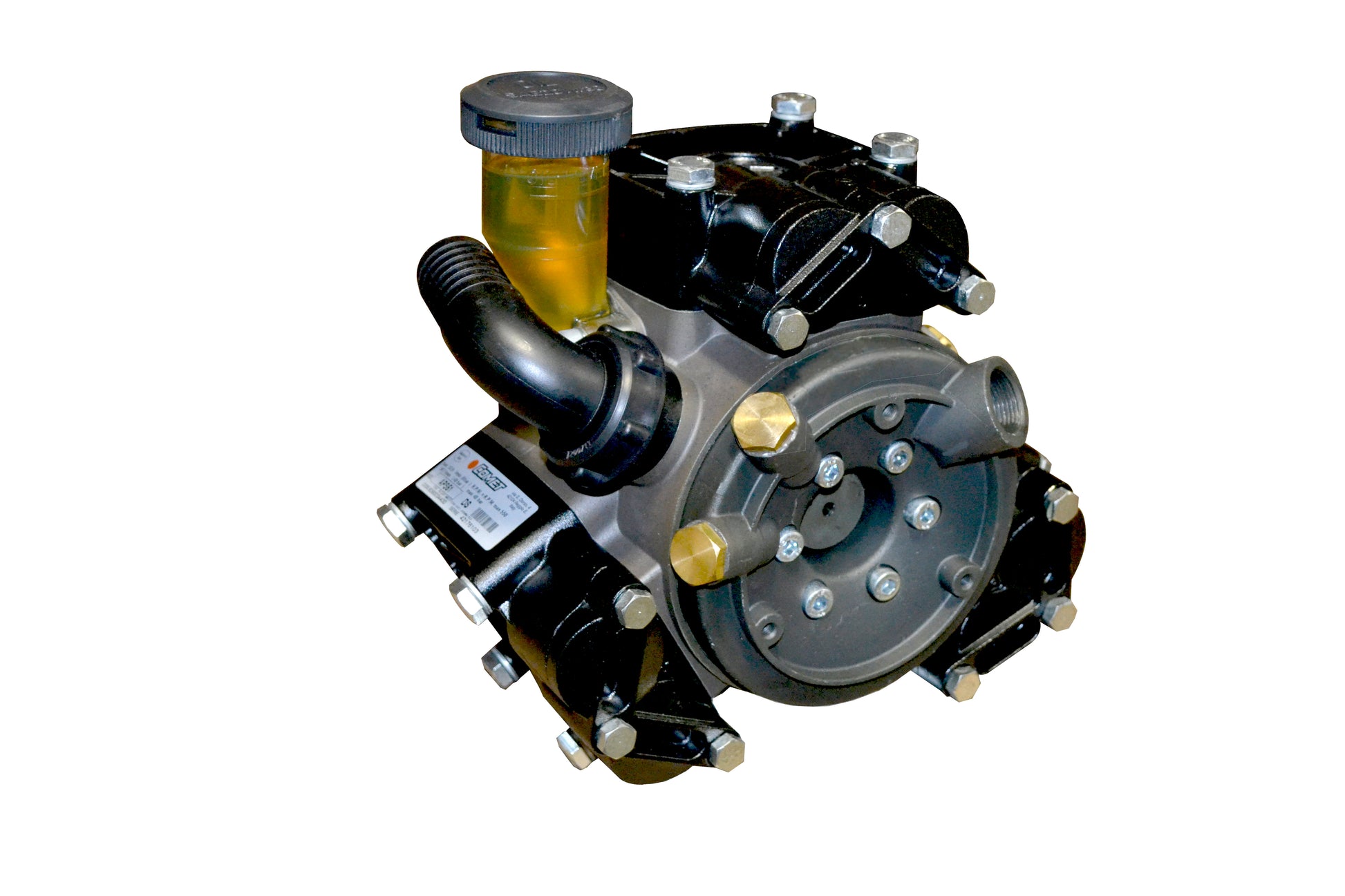

Comet APS51 Diaphragm Pump

Comet APS51 Diaphragm Pump

Brand:
Comet
Weight:
36.0 lb
Item #
APS51
1 1

Comet APS51 Diaphragm Pump

Comet APS51 Diaphragm Pump

Brand:
Comet
Weight:
36.0 lb
Item #
APS51

$1,214.25
$1,214.25 List Price: $1,868.08

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,643 points with this purchase.

See Details

View full details

Product Overview

The APS51 Diaphragm Pump from Comet includes three diaphragms and a universal drive face, giving you a stronger performance for your spraying needs. The anodized aluminum makes higher pressure spraying possible, up to 580 PSI. Additionally, the material provides strong chemical resistance to most agricultural or industrial chemicals. At only 36 lbs, this diaphragm pump is powerful, yet convenient to operate and manipulate.

Manufacturer description

Three diaphragm pump with universal drive face to attach gearbox or shaft kit. High pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, hydrostatic testing and agricultural spraying.

Resources

Download Product Manual

Features

  • Max flow: 14 gpm
  • Max pressure: 580 psi
  • Max rpm: 550
  • Port sizes: 1-1/4" HB inlet, 1/2" HB outlet

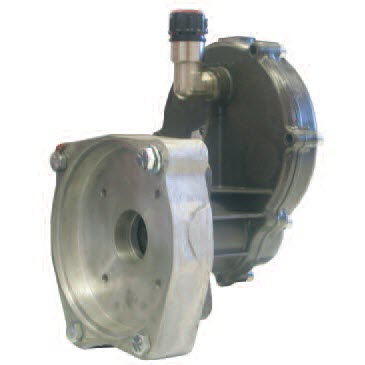

  • Shaft: Universal drive face to attach gearbox or shaft kit
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna and Viton® available
  • Housing: Anodized aluminum
  • Recommended pressure regulator: 1204/189 or 1204/205
  • Max fluid temperature: 140°F
  • Weight: 36 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Wing Nut
    • Ref No: 1
    • Part No: 12000011
    • Qty Req: 1
    Our price: $15.22 List price: $17.91
  • Suction Elbow
    • Ref No: 2
    • Part No: 28010009
    • Qty Req: 1
    Our price: $26.81 List price: $31.54
  • O-Ring
    • Ref No: 3
    • Part No: 12100034
    • Qty Req: 1
    Our price: $1.13 List price: $1.33
  • Coupling
    • Ref No: 4
    • Part No: 28030108
    • Qty Req: 1
    Our price: $36.24 List price: $42.64
  • O-Ring
    • Ref No: 5
    • Part No: 12100173
    • Qty Req: 1
    Our price: $1.27 List price: $1.49
  • Wing Nut
    • Ref No: 7
    • Part No: 12000038
    • Qty Req: 1
    Our price: $8.11 List price: $9.54
  • Hose Barb
    • Ref No: 8
    • Part No: 28020018
    • Qty Req: 1
    Our price: $7.61 List price: $8.95
  • Gasket
    • Ref No: 9
    • Part No: 12090013
    • Qty Req: 1
    Our price: $0.90 List price: $1.06
  • Left Tap
    • Ref No: 10
    • Part No: 28260030
    • Qty Req: 1
    Our price: $69.50 List price: $81.76
  • Complete Tap
    • Ref No: 11
    • Part No: 12140014
    • Qty Req: 1
    Our price: $89.08 List price: $104.80
  • Screw
    • Ref No: 13
    • Part No: 36090006
    • Qty Req: 6
    Our price: $1.79 List price: $2.10
  • Manifold Flange
    • Ref No: 14
    • Part No: 10090095
    • Qty Req: 1
    Our price: $199.88 List price: $266.50
  • O-Ring
    • Ref No: 15
    • Part No: 12100349
    • Qty Req: 1
    Our price: $4.52 List price: $5.32
  • O-Ring
    • Ref No: 16
    • Part No: 12100345
    • Qty Req: 1
    Our price: $4.80 List price: $5.65
  • O-Ring
    • Ref No: 17
    • Part No: 12100347
    • Qty Req: 1
    Our price: $1.84 List price: $2.17
  • Oil Seal
    • Ref No: 18
    • Part No: 00190083
    • Qty Req: 1
    Our price: $13.90 List price: $16.35
  • Special Cap
    • Ref No: 19
    • Part No: 04320031
    • Qty Req: 1
    Our price: $19.63 List price: $23.09
  • Screw
    • Ref No: 20
    • Part No: 36090078
    • Qty Req: 12
    Our price: $4.23 List price: $4.98
  • Washer
    • Ref No: 21
    • Part No: 28110098
    • Qty Req: 11
    Our price: $0.48 List price: $0.57
  • Pump Manifold
    • Ref No: 22
    • Part No: 32180103
    • Qty Req: 3
    Our price: $130.94 List price: $154.05
  • O-Ring
    • Ref No: 23
    • Part No: 12100047
    • Qty Req: 6
    Our price: $1.03 List price: $1.21
  • O-Ring
    • Ref No: 24
    • Part No: 12100443
    • Qty Req: 6
    Our price: $1.26 List price: $1.48
  • Valve Seat
    • Ref No: 25
    • Part No: 30090115
    • Qty Req: 6
    Our price: $18.65 List price: $21.94
  • Valve Plate
    • Ref No: 26
    • Part No: 36040023
    • Qty Req: 6
    Our price: $3.21 List price: $3.78
  • Valve Spring
    • Ref No: 27
    • Part No: 18020015
    • Qty Req: 6
    Our price: $1.82 List price: $2.14
  • Valve Cage
    • Ref No: 28
    • Part No: 12050029
    • Qty Req: 6
    Our price: $2.20 List price: $2.59
  • Valve Assembly
    • Ref No: 29
    • Part No: 12200035
    • Qty Req: 6
    Our price: $27.27 List price: $32.08
  • O-Ring
    • Ref No: 30
    • Part No: 12100032
    • Qty Req: 6
    Our price: $1.24 List price: $1.46
  • Plug
    • Ref No: 31
    • Part No: 32020197
    • Qty Req: 3
    Our price: $42.62 List price: $50.14
  • Screw
    • Ref No: 33
    • Part No: 36090049
    • Qty Req: 2
    Our price: $10.43 List price: $12.27
  • Pump Mounting Bracket
    • Ref No: 34
    • Part No: 24000066
    • Qty Req: 2
    Our price: $35.78 List price: $42.09
  • O-Ring
    • Ref No: 35
    • Part No: 12100044
    • Qty Req: 1
    Our price: $2.36 List price: $2.48
  • Plug
    • Ref No: 36
    • Part No: 32000010
    • Qty Req: 1
    Our price: $20.74 List price: $24.40
  • Connecting Rod Assembly (Set of 3)
    • Ref No: 37
    • Part No: 02050053
    • Qty Req: 1
    Our price: $170.50 List price: $200.59
  • Piston
    • Ref No: 38
    • Part No: 24090067
    • Qty Req: 3
    Our price: $87.93 List price: $103.45
  • Compression Ring
    • Ref No: 39
    • Part No: 00200008
    • Qty Req: 3
    Our price: $11.75 List price: $13.82
  • Piston Sleeve
    • Ref No: 40
    • Part No: 04000072
    • Qty Req: 3
    Our price: $138.92 List price: $163.44
  • Diaphragm Holder Screw
    • Ref No: 41
    • Part No: 36050005
    • Qty Req: 3
    Our price: $26.73 List price: $31.45
  • Washer
    • Ref No: 42
    • Part No: 06020010
    • Qty Req: 3
    Our price: $5.65 List price: $6.65
  • Diaphragm, Buna
    • Ref No: 43
    • Part No: 18000088
    • Qty Req: 3
    Our price: $26.65 List price: $31.35
  • Pin
    • Ref No: 44
    • Part No: 30110021
    • Qty Req: 3
    Our price: $14.96 List price: $17.60
  • Snap Ring
    • Ref No: 45
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.44 List price: $0.52
  • Roller Bearing
    • Ref No: 47
    • Part No: 04370022
    • Qty Req: 1
    Our price: $59.00 List price: $69.41
  • Ring
    • Ref No: 48
    • Part No: 00090186
    • Qty Req: 1
    Our price: $1.95 List price: $2.29
  • Connecting Rod Ring
    • Ref No: 49
    • Part No: 00100021
    • Qty Req: 2
    Our price: $40.35 List price: $47.47
  • Snap Ring
    • Ref No: 50
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.53 List price: $5.33
  • Ball Bearing
    • Ref No: 51
    • Part No: 04380001
    • Qty Req: 1
    Our price: $179.27 List price: $210.91
  • Throughshaft, APS51
    • Ref No: 52
    • Part No: 00010516
    • Qty Req: 1
    Our price: $457.84 List price: $538.64
  • Oil Seal
    • Ref No: 53
    • Part No: 00190085
    • Qty Req: 1
    Our price: $22.91 List price: $26.95
  • Snap Ring
    • Ref No: 54
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.39 List price: $7.52
  • Cover
    • Ref No: 55
    • Part No: 04020141
    • Qty Req: 1
    Our price: $5.92 List price: $6.96
  • O-Ring
    • Ref No: 56
    • Part No: 12100122
    • Qty Req: 1
    Our price: $2.36 List price: $2.78
  • Oil Neck Glass
    • Ref No: 57
    • Part No: 04210015
    • Qty Req: 1
    Our price: $15.85 List price: $21.13
  • Screw
    • Ref No: 58
    • Part No: 36090002
    • Qty Req: 2
    Our price: $1.73 List price: $2.04
  • Washer
    • Ref No: 59
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.48 List price: $0.56
  • O-Ring
    • Ref No: 60
    • Part No: 12100233
    • Qty Req: 1
    Our price: $0.48 List price: $0.56
  • Crankcase
    • Ref No: 72
    • Part No: 04030115
    • Qty Req: 1
    Our price: $876.17 List price: $1,030.79
