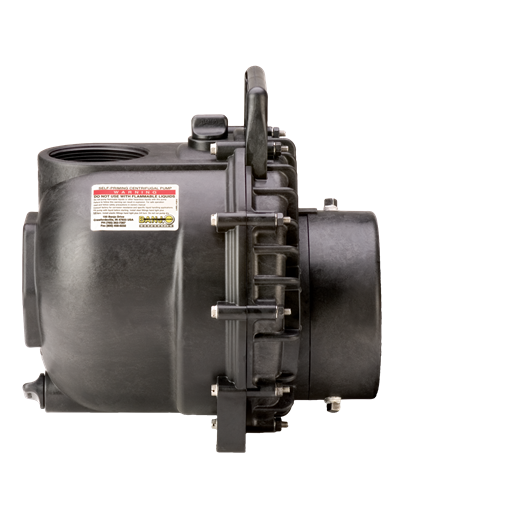

3" Poly Wet Pump Only for 1" Shaft

3" Poly Wet Pump Only for 1" Shaft

Brand:
Banjo
Weight:
15.3 lb
Item #
300POW
1 1

3" Poly Wet Pump Only for 1" Shaft

3" Poly Wet Pump Only for 1" Shaft

Brand:
Banjo
Weight:
15.3 lb
Item #
300POW

$448.18
$448.18 List Price: $1,054.54

Earn 1,345 points with this purchase.

See Details

View full details

Product Overview

3" Poly wet seal pump only with full impeller.



Manufacturer description

Poly wet seal pump from Banjo- 3" Poly wet seal pump only

Resources

Download Product Manual

Features

  • Run dry capability
  • Double seal contained in ethylene glycol reservoir. Carbon ceramic seal faces with stainless steel cup and spring with EPDM rubber
  • Pump end separated from engine
  • V-shaped for quicker priming

Parts breakdown

Diagram

Diagram parts

Parts list

  • 3" Poly Wet Seal Reservoir
    • Ref No: 1
    • Part No: 12201W
    • Qty Req: 1
    Our price: $58.63 List price: $117.26
  • 3" Poly Wet Seal Rear Bracket
    • Ref No: 2
    • Part No: 12703AW
    • Qty Req: 1
    Our price: $78.43 List price: $156.85
  • Poly Pump Check Valve
    • Ref No: 3
    • Part No: 12705
    • Qty Req: 1
    Our price: $13.34 List price: $26.67
  • #13 O-Ring EPDM
    • Ref No: 4
    • Part No: 12709
    • Qty Req: 4
    Our price: $0.77 List price: $1.54
  • O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.77 List price: $1.54
  • Body O-Ring
    • Ref No: 6
    • Part No: 12719A
    • Qty Req: 1
    Our price: $11.80 List price: $23.60
  • SS Body Screw
    • Ref No: 7
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.12 List price: $6.24
  • SS Volute Screw
    • Ref No: 8
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.12 List price: $6.24
  • O-Ring Segment
    • Ref No: 9
    • Part No: 12754
    • Qty Req: 1
    Our price: $4.96 List price: $9.91
  • Impeller Hex Nut
    • Ref No: 10
    • Part No: 12775A
    • Qty Req: 1
    Our price: $11.80 List price: $23.60
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 11
    • Part No: 12777
    • Qty Req: 2
    Our price: $2.36 List price: $4.72
  • SS Upper Volute Screw
    • Ref No: 12
    • Part No: 12900
    • Qty Req: 1
    Our price: $1.30 List price: $2.60
  • SS Rear Bracket Washer
    • Ref No: 13
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.77 List price: $1.54
  • Impeller Key
    • Ref No: 14
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.52 List price: $3.03
  • Screw (5/16-24 X 3½" 316 Stainless Steel)
    • Ref No: 16
    • Part No: 13034
    • Qty Req: 4
    Our price: $7.23 List price: $14.46
  • Adapter Shaft For 3" Poly Wet Seal 11 HP Engine
    • Ref No: 17
    • Part No: 13055
    • Qty Req: 1
    Our price: $91.38 List price: $182.75
  • Poly Pump Volute
    • Ref No: 18
    • Part No: 13702
    • Qty Req: 1
    Our price: $60.15 List price: $120.29
  • Body Assembly
    • Ref No: 19
    • Part No: 13712
    • Qty Req: 1
    Our price: $152.28 List price: $304.55
  • O-Ring EPDM
    • Ref No: 20
    • Part No: 13719
    • Qty Req: 1
    Our price: $2.23 List price: $4.45
  • Screw (24 X 2¼" HFS)
    • Ref No: 21
    • Part No: 13766
    • Qty Req: 1
    Our price: $3.12 List price: $6.24
  • 3" Poly Pump Impeller
    • Ref No: 22
    • Part No: 13772
    • Qty Req: 1
    Our price: $48.74 List price: $97.48
  • Wet Seal Mechanical Seal Assembly EPDM
    • Ref No: 23
    • Part No: 15035E
    • Qty Req: 1
    Our price: $185.76 List price: $371.52
  • Key
    • Ref No: 24
    • Part No: 16901
    • Qty Req: 1
    Our price: $3.18 List price: $6.36
  • O-Ring EPDM
    • Ref No: 25
    • Part No: A204
    • Qty Req: 1
    Our price: $1.14 List price: $2.27
  • Gasket for 1" Check Valve
    • Ref No: 26
    • Part No: CV10175
    • Qty Req: 1
    Our price: $1.31 List price: $2.61
  • Prime/Drain Plug O-Ring
    • Ref No: 28
    • Part No: UV15163
    • Qty Req: 2
    Our price: $0.83 List price: $1.65
  • SS Lock Washer
    • Ref No: 29
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.87 List price: $1.74
  • SS Body Nut
    • Ref No: 30
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.87 List price: $1.74
