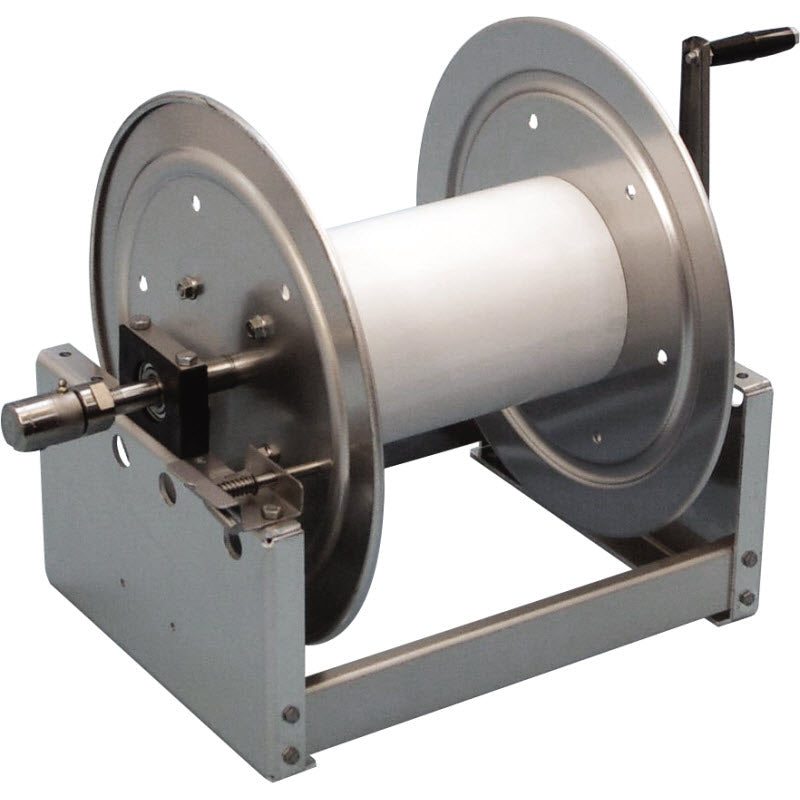

The heavy duty aluminum frame of the 4312 Titan 12" Aluminum Hose Reel makes this unit ideal for commercial and residential use. The ball bearing support and nickel plated swivel sit atop a grease fitting. The spring loaded pin-lock facilitates an adjustable molded resin drag. Also included in the design are a PVC spool, carbon steel manifold, SS disks, and plated steel hardware.

4312 Titan 12" aluminum manual hose reel is the standard reel used on all Kings Sprayers. Lightweight and corrosion resistant, Titan reels are a great choice for multiple applications. Equipped with hand crank opposite from swivel for easy rewinding. The 12" reel will hold up to 200' of 1/2" ID hose or 300' of 3/8" ID. Features: PVC spool Stainless steel tierods and fasteners Iron Manifold (Stainless steel manifold available for handling fertilizer and other corrosives) Resin bearing holders with stainless back plates for corrosion resistance

• Frame and discs: Aluminum
• Distance between discs: 12"
• Rewind: Manual hand crank
• Manifold: Carbon steel standard, stainless steel available
• Hose capacity: 300' of 3/8" ID or 200' of 1/2" ID
• Port sizes: 1/2" FNPT inlet and outlet
• Max pressure rating: 5000 psi
• Spool: PVC
• Swivel: 1/2" FNPT Super Swivel
• Stainless steel tierods and fasteners
• Resin bearing holders with stainless back plates for corrosion resistance
• Rectangular design more easily accommodates a simple and inexpensive stacking kit as well as hose guide
• Recommended hose guide: 7212 or 7252
• Weight: 30 lbs
