Install this 5059-3610-D011 High Flow Bypass 12VDC Pump from SHURflo. This product is a bypass diaphragm pump with a maximum pressure rating of 90 PSI and a flow rate of 5.3 GPM. Fabricated from chemical-resistant materials, it's ideal for heavy-duty spraying jobs as well as fluid transfers. And as a bonus, it is able to run dry without sustaining a fault in its assemblies.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

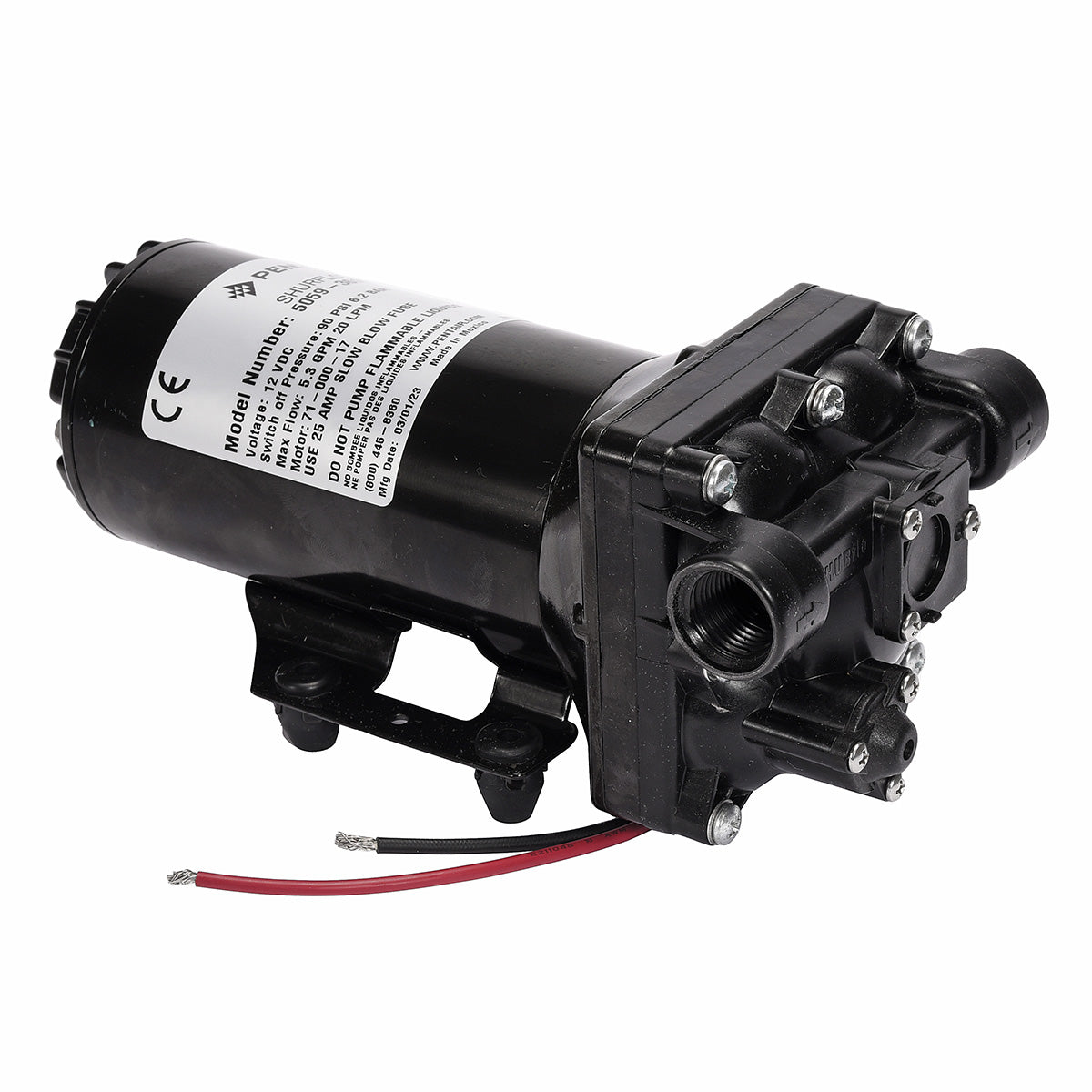

**Automatic Demand version shown in picture** The 5059 Series diaphragm pump is SHURflo's highest flowing pump. With its conical shaped Viton® valves and automatic demand switch, the 5059 Series pump is the pump of choice for sprayers used on the farm or around the yard. These 12 VDC pumps deliver up to 5.3 GPM providing maximum performance in a wide range of applications.

Download Product Manual

• Bypass
• Self-priming up to 8 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 5.3 gpm
• Max pressure: 90 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Max Draw: 20.9
• Port size: 1/2" FNPT
• Weight: 8 lbs
