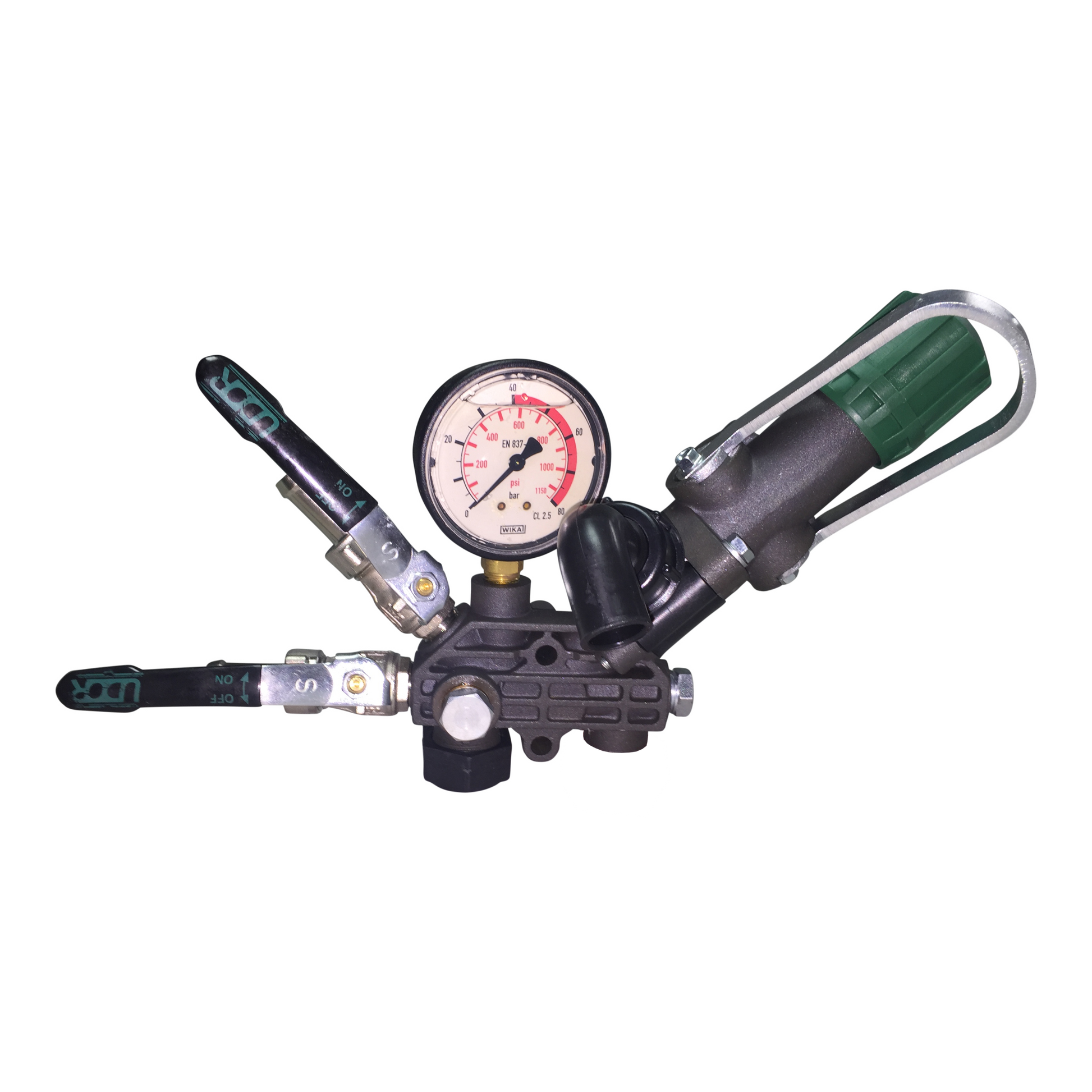

6010.24 Control Unit KAPPA-40/55/55GR8

6010.24 Control Unit KAPPA-40/55/55GR8

Brand:
Udor
Weight:
5.0 lb
Item #
601024
4 reviews
1 1

6010.24 Control Unit KAPPA-40/55/55GR8

6010.24 Control Unit KAPPA-40/55/55GR8

Brand:
Udor
Weight:
5.0 lb
Item #
601024
4 reviews

$216.81
$216.81 List Price: $297.00

Earn 650 points with this purchase.

See Details

View full details

Product Overview

The Udor 6010.24 control unit is designed for precise pressure control and ease of use. Control the pressure simply by turning the adjustment knob in and out. The more you screw it in, the more pressure you create. Switch easily from bypass to pressure mode simply by the metal handle.

Manufacturer description

Pump or remote mounted control with adjustable pressure regulator with manual dump lever. Includes two 1/2" ball valve discharge ports & pressure gauge. Control is standard on KAPPA-40/55.

Resources

Download Product Manual

Features

  • Mounts to pump models: KAPPA-40, KAPPA-55
  • Max flow: 20 gpm
  • Max pressure: 560 psi
  • Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, glycerin filled
  • Weight: 3 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Valve Body (601024, 604706)
    • Ref No: 426
    • Part No: 020440
    • Qty Req: 1
    Our price: $84.25 List price: $101.50
  • Main Body (601024, 604706)
    • Ref No: 428
    • Part No: 020448
    • Qty Req: 1
    Our price: $116.62 List price: $140.50
  • Regulator Piston
    • Ref No: 459
    • Part No: 020510
    • Qty Req: 1
    Our price: $24.98 List price: $30.10
  • Valve Cylinder Cam
    • Ref No: 460
    • Part No: 020511
    • Qty Req: 2
    Our price: $20.09 List price: $24.20
  • Bypass Elbow Hose Barb
    • Ref No: 776
    • Part No: 025404
    • Qty Req: 1
    Our price: $11.29 List price: $13.60
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Bypass Barb Nut
    • Ref No: 1040
    • Part No: 060426
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Spring
    • Ref No: 1233
    • Part No: 090124
    • Qty Req: 1
    Our price: $10.71 List price: $12.90
  • 300 PSI Spring (LP Models)
    • Ref No: 1238
    • Part No: 090147
    • Qty Req: 1
    Our price: $10.71 List price: $12.90
  • Dump Valve Lever
    • Ref No: 1275
    • Part No: 090225
    • Qty Req: 1
    Our price: $10.87 List price: $13.10
  • Diaphragm
    • Ref No: 1304
    • Part No: 090326
    • Qty Req: 1
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Plunger Bolt O-Ring
    • Ref No: 1370
    • Part No: 110106
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1374
    • Part No: 110112
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1389
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • R.V. Body
    • Ref No: 1494
    • Part No: 120333
    • Qty Req: 1
    Our price: $35.52 List price: $42.80
  • Steel Poppet (Optional)
    • Ref No: 1545
    • Part No: 120419
    • Qty Req: 1
    Our price: $25.15 List price: $30.30
  • Washer
    • Ref No: 1841
    • Part No: 140306
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Seat
    • Ref No: 1936
    • Part No: 150123
    • Qty Req: 1
    Our price: $29.88 List price: $36.00
  • Plug
    • Ref No: 2274
    • Part No: 160344
    • Qty Req: 2
    Our price: $4.73 List price: $5.70
  • Adjustment Knob
    • Ref No: 2379
    • Part No: 180117
    • Qty Req: 1
    Our price: $16.43 List price: $19.80
  • Bolt
    • Ref No: 2477
    • Part No: 180810
    • Qty Req: 2
    Our price: $2.41 List price: $2.90
  • Bolt
    • Ref No: 2479
    • Part No: 180474
    • Qty Req: 4
    Our price: $2.32 List price: $2.80
  • S.S. Bolt
    • Ref No: 2630
    • Part No: 181001
    • Qty Req: 1
    Our price: $5.64 List price: $6.80
  • Barb Nut
    • Ref No: 7330
    • Part No: 060429
    • Qty Req: 1
    Our price: $7.55 List price: $9.10
  • Plug
    • Ref No: 7700
    • Part No: 160322
    • Qty Req: 1
    Our price: $2.24 List price: $2.70
