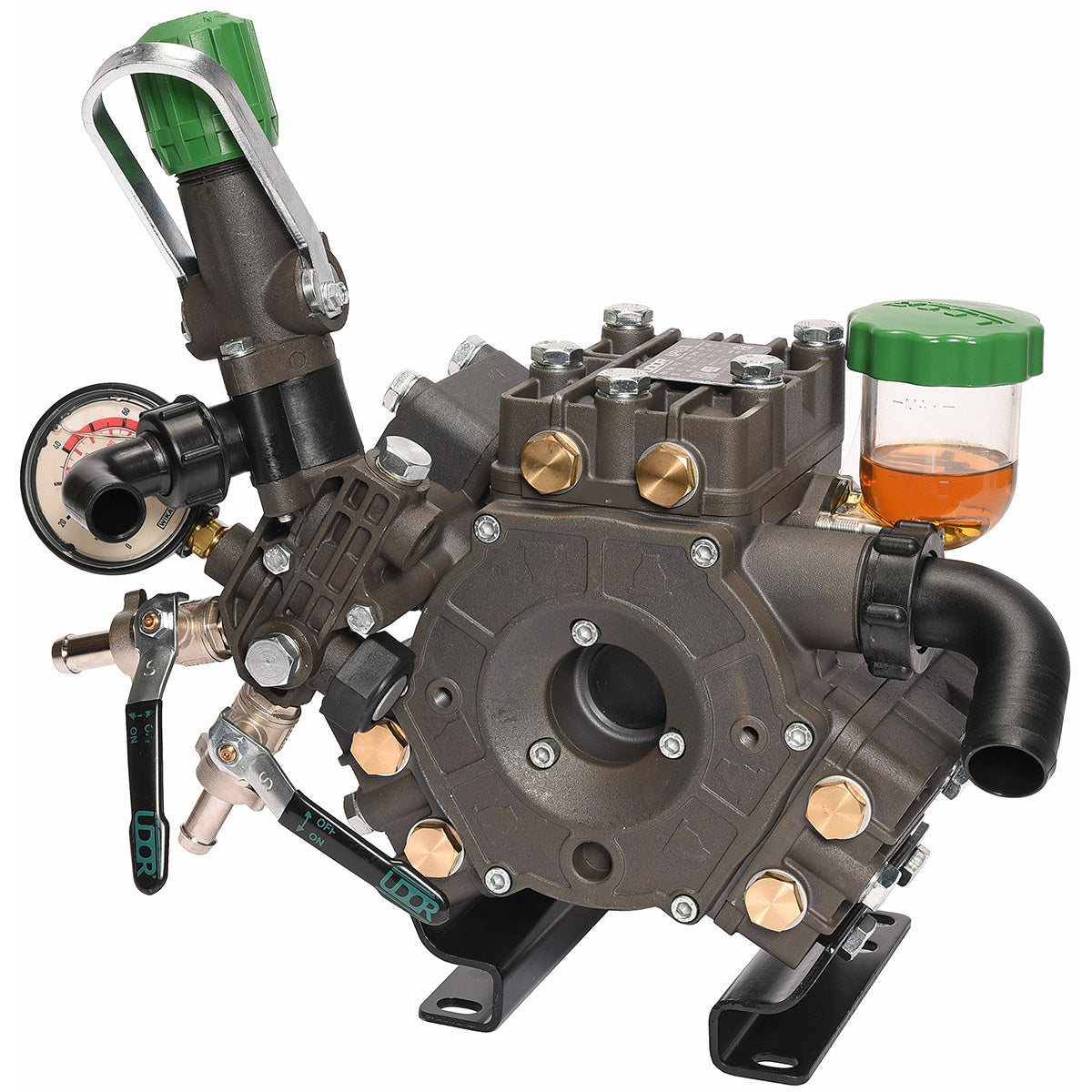

Udor KAPPA-55 Diaphragm Pump

Udor KAPPA-55 Diaphragm Pump

Brand:
Udor
Weight:
35.25 lb
Item #
KAPPA55

Regular price $1,003.37
Sale price $1,003.37 Regular price List Price: $1,824.30

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,010 points with this purchase.

View full details

Collapsible content

Product Overview

Connect this durable, powerful Udor KAPPA-55 Diaphragm Pump into your medium-pressure sprayer system. Made to handle pressures up to 560 PSI and a maximum flow of 15 GPM, it features a universal drive face, a regulator unit with adjustable pressure controllers and a pressure gauge for careful pressure monitoring. Furthermore, it features a manual dump lever, dual ball valve outlets and a pulsation dampener. Use this state-of-the-art pump for agricultural, commercial and industrial sprayers.

Manufacturer description

KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 15 gpm
  • Max pressure: 560 psi
  • Includes 6010.24 control unit
  • Shaft: Flanged for shaft kit or gearbox
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum

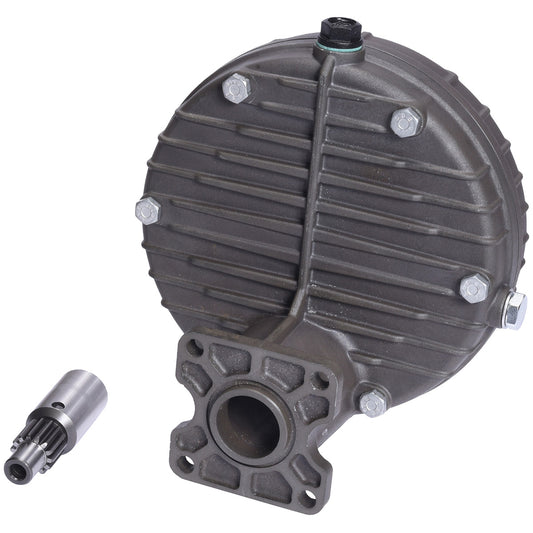

  • Recommended gearbox: 5027.75 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines or 5033.A4 with 1" hollow shaft for mounting on 8-9 hp engines
  • Max fluid temperature: 140°F
  • Weight: 39 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Accumulator Diaphragm - Udor KAPPA-55
    • Ref No: sku:090308
    • Part No: 090308
    • Qty Req: 1
    Our price: $18.92 List price: $22.80
  • Accumulator Head
    • Ref No: sku:020846
    • Part No: 020846
    • Qty Req: 1
    Our price: $71.96 List price: $86.70
  • Head Bolt (Hex Head - New Style)
    • Ref No: sku:180445
    • Part No: 180445
    • Qty Req: 19
    Our price: $4.32 List price: $5.20
  • Washer
    • Ref No: sku:140309
    • Part No: 140309
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Air Valve Assembly
    • Ref No: sku:060816
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Aluminum Gasket
    • Ref No: sku:060509
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • O-Ring
    • Ref No: sku:110187
    • Part No: 110187
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • O-Ring
    • Ref No: sku:110162
    • Part No: 110162
    • Qty Req: 1
    Our price: $6.06 List price: $7.30
  • Flange
    • Ref No: sku:050185
    • Part No: 050185
    • Qty Req: 1
    Our price: $59.35 List price: $71.50
  • Bolt
    • Ref No: sku:180520
    • Part No: 180520
    • Qty Req: 9
    Our price: $2.32 List price: $2.80
  • Body Plug
    • Ref No: sku:021806
    • Part No: 021806
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • Pump Body T.S.(KAPPA-55/TS)
    • Ref No: sku:020946
    • Part No: 020946
    • Qty Req: 1
    Our price: $487.63 List price: $587.50
  • Pump Head - KAPPA-25/33/35/43/53
    • Ref No: sku:6017F2
    • Part No: 6017F2
    • Qty Req: 3
    Our price: $121.35 List price: $146.20
  • Head
    • Ref No: sku:1604G9
    • Part No: 1604G9
    • Qty Req: 3
    Our price: $121.35 List price: $146.20
  • Plug
    • Ref No: sku:1603G9
    • Part No: 1603G9
    • Qty Req: 6
    Our price: $11.87 List price: $14.30
  • O-Ring
    • Ref No: sku:110127
    • Part No: 110127
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • VALVE ASSEMBLY
    • Ref No: sku:606304
    • Part No: 606304
    • Qty Req: 6
    Our price: $29.63 List price: $35.70
  • Diaphragm Bolt (KAPPA-30/33/40/43/55/75/100)
    • Ref No: sku:0010204
    • Part No: 0010204
    • Qty Req: 3
    Our price: $21.66 List price: $26.10
  • Diaphragm Washer
    • Ref No: sku:030143
    • Part No: 030143
    • Qty Req: 3
    Our price: $13.61 List price: $16.40
  • PISTON DIAPHRAGM - 90mm - GREENTECH
    • Ref No: sku:090315
    • Part No: 090315
    • Qty Req: 3
    Our price: $44.07 List price: $53.10
  • Piston Diaphragm Buna-N (Opt.)
    • Ref No: sku:090343
    • Part No: 090343
    • Qty Req: 3
    Our price: $29.05 List price: $35.00
  • Piston Sleeve (KAPPA-55)
    • Ref No: sku:020631
    • Part No: 020631
    • Qty Req: 3
    Our price: $126.99 List price: $153.00
  • PLUG 3/8 G
    • Ref No: sku:1603D4
    • Part No: 1603D4
    • Qty Req: 1
    Our price: $10.79 List price: $13.00
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Mounting Rail - Left Side
    • Ref No: sku:120264
    • Part No: 120264
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • Mounting Rail - Right Side
    • Ref No: sku:120263
    • Part No: 120263
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • Seal Retainer (Udor Diaphragm Pump- Kappa-55)
    • Ref No: sku:0050102
    • Part No: 0050102
    • Qty Req: 1
    Our price: $16.43 List price: $19.80
  • Seal (KAPPA-30/40/55, RO-70)
    • Ref No: sku:000701
    • Part No: 000701
    • Qty Req: 1
    Our price: $41.92 List price: $50.50
  • Crankshaft
    • Ref No: sku:000271
    • Part No: 000271
    • Qty Req: 1
    Our price: $396.57 List price: $477.80
  • Ball Bearing (KAPPA-30/40/55/75/100, RO-70)
    • Ref No: sku:021401
    • Part No: 021401
    • Qty Req: 1
    Our price: $231.32 List price: $278.70
  • Snap Ring
    • Ref No: sku:150601
    • Part No: 150601
    • Qty Req: 1
    Our price: $7.64 List price: $9.20
  • Spacer (KAPPA-30/40/55)
    • Ref No: sku:030250
    • Part No: 030250
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Retaining Ring (KAPPA-30, KAPPA-40, KAPPA-55)
    • Ref No: sku:000106
    • Part No: 000106
    • Qty Req: 2
    Our price: $36.02 List price: $43.40
  • Washer (KAPPA-30/40/55)
    • Ref No: sku:030130
    • Part No: 030130
    • Qty Req: 1
    Our price: $8.96 List price: $10.80
  • Bearing (KAPPA-30/40/55)
    • Ref No: sku:000602
    • Part No: 000602
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Bolt
    • Ref No: sku:180407
    • Part No: 180407
    • Qty Req: 4
    Our price: $2.32 List price: $2.80
  • Connecting Rod Pin
    • Ref No: sku:150203
    • Part No: 150203
    • Qty Req: 3
    Our price: $15.36 List price: $18.50
  • Snap Ring
    • Ref No: sku:150615
    • Part No: 150615
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • PISTON RING
    • Ref No: sku:150910
    • Part No: 150910
    • Qty Req: 3
    Our price: $11.95 List price: $14.40
  • Piston
    • Ref No: sku:120562
    • Part No: 120562
    • Qty Req: 3
    Our price: $78.60 List price: $94.70
  • Connecting Rod
    • Ref No: sku:151918
    • Part No: 151918
    • Qty Req: 3
    Our price: $51.29 List price: $61.80
  • OIL BOWL ASSEMBLY
    • Ref No: sku:603313
    • Part No: 603313
    • Qty Req: 1
    Our price: $68.23 List price: $82.20
  • Oil Reservoir Cap
    • Ref No: sku:020865
    • Part No: 020865
    • Qty Req: 1
    Our price: $12.87 List price: $15.50
  • O-ring
    • Ref No: sku:1101B6
    • Part No: 1101B6
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: sku:110198
    • Part No: 110198
    • Qty Req: 1
    Our price: $5.31 List price: $6.40
  • Oil Reservoir
    • Ref No: sku:120328
    • Part No: 120328
    • Qty Req: 1
    Our price: $37.85 List price: $45.60
  • Screw
    • Ref No: sku:180571
    • Part No: 180571
    • Qty Req: 2
    Our price: $2.32 List price: $2.80
  • Washer
    • Ref No: sku:140307
    • Part No: 140307
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • O-Ring
    • Ref No: sku:110129
    • Part No: 110129
    • Qty Req: 7
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: sku:110141
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Suction Elbow (KAPPA-55/75, RO-70)
    • Ref No: sku:020252
    • Part No: 020252
    • Qty Req: 1
    Our price: $19.51 List price: $23.50
  • Suction Nut
    • Ref No: sku:060418
    • Part No: 060418
    • Qty Req: 1
    Our price: $13.20 List price: $15.90
