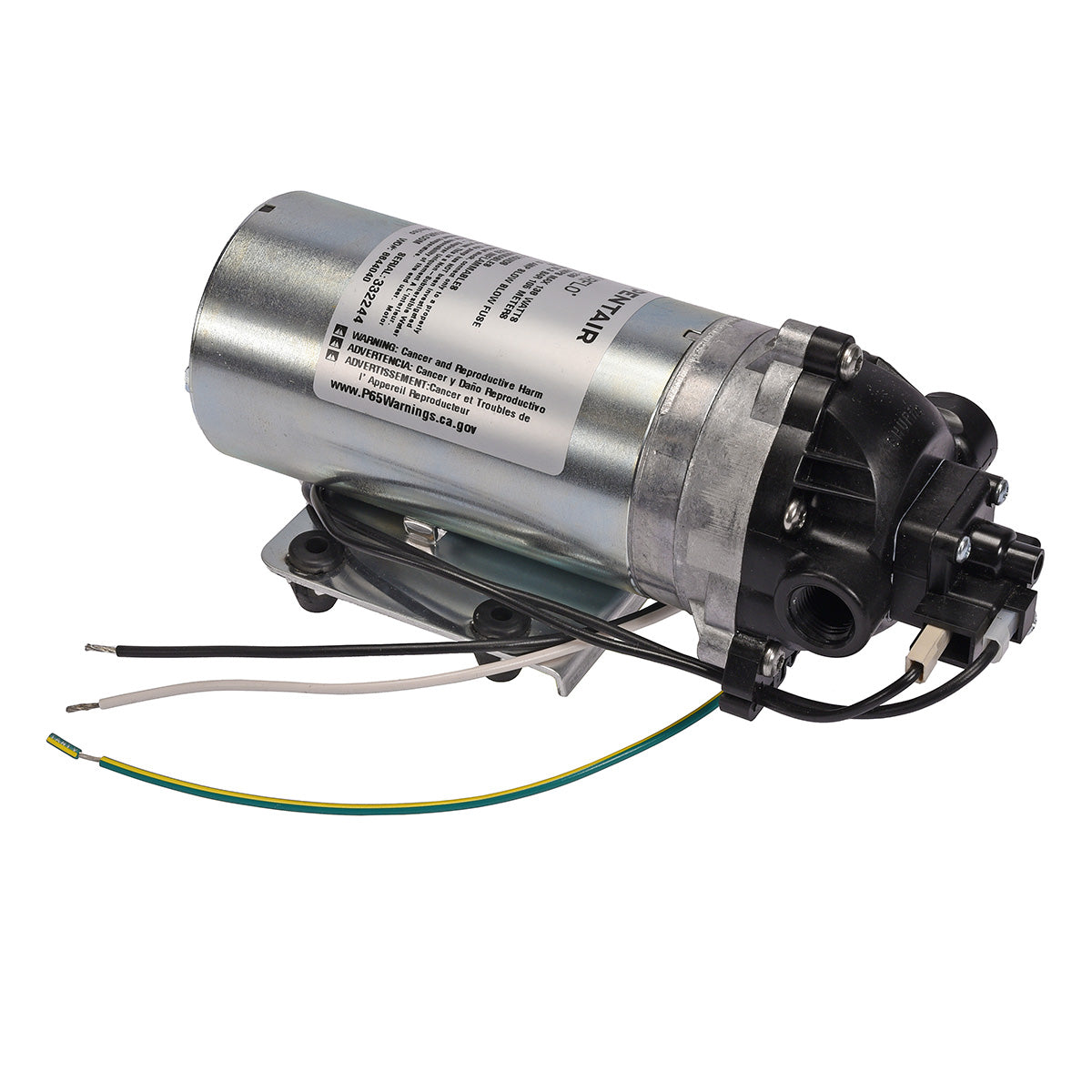

The same reliable performance delivered by the 12 VDC models in the SHURflo 8000 and 8020 series is now available with 115 VAC capacity. The santoprene diaphragm helps create the high pressure draw required for many agricultural applications; this pump has a low amp draw and flow rates up to 1.6 GPM. This compact model can be mounted in any position and is easy to service and maintain.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

These SHURflo 8000 and 8020 Series pumps provide the same reliability as the 12 VDC version, except in a 115 VAC capacity. They are ideal in agricultural applications that require high pressure with flow rates up to 1.6 GPM [6.1 l/min] and low amp draw. They can be mounted in any position, are compact, and are designed for easy maintenance.

Download Product Manual

• Automatic Demand
• Self-priming up to 8 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 1.5 gpm
• Max pressure: 150 psi
• Voltage: 115VAC
• Component material: Viton® valves, Santoprene® diaphragm
• Max Draw: 1.0
• Port size: 3/8" FNPT
• Weight: 6 lbs
