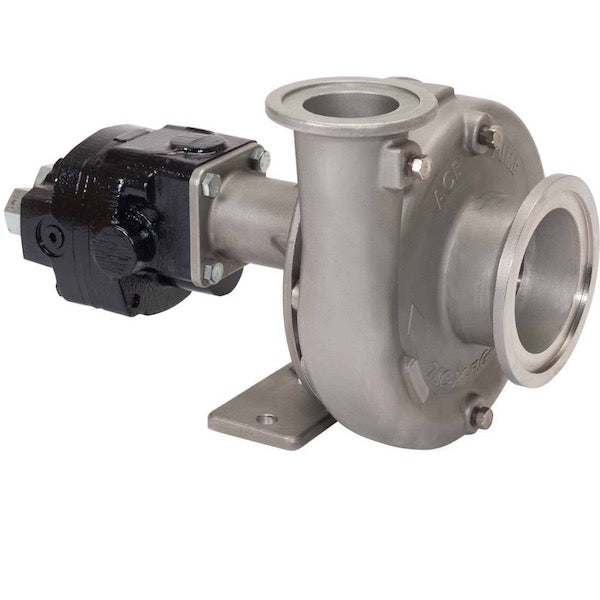

Name: Ace FMCSC-205FS-HYD-304 Hydraulic Driven Centrifugal Pump
Brand: Ace Pumps
SKU: FMCSC205FSHYD304
Price: 2090.4 USD
Availability: InStock

Ace FMCSC-205FS-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FSHYD304

1 1

Ace FMCSC-205FS-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FSHYD304

$2,090.40

$2,090.40 List Price: ~~$3,484.00~~

Product variants

Earn 6,271 points with this purchase.

See Details

View full details

Product Overview

Ace FMCSC-205FS-HYD-304 Hydraulic Driven Centrifugal Pump

Manufacturer description

Stainless Steel wet end
Integrated Pressure Relief Valve prevents overspeeding
Severe Duty Silicon Carbide Mechanical Seal with O-ring Seat for Improved Survivability
Chemical Resistant Thermoplastic Impeller

Resources

Download Product Manual

Features

Port sizes: Inlet 300 Flange, Outlet 220 Flange
Max Pressure: 120 PSI
Max Flow: 240 GPM
Weight: 40 lbs

Parts breakdown

Diagram

Parts list

Pipe Plug, 1/8" NPT
- Ref No: 1
- Part No: BAC53
- Qty Req: 4
Our price: $0.53 List price: $0.75
Pipe plug, 1/8" NPT stainless steel (-FS model)
- Ref No: 1
- Part No: 41120
- Qty Req: 4
Our price: $4.38 List price: $6.25
Volute, 300 standard flange x 220 full port flange, cast iron
- Ref No: 2
- Part No: 7AC14FLG
- Qty Req: 1
Our price: $381.33 List price: $544.75
Volute, 300 flange x 220 flange, 316 stainless steel (-FS model)
- Ref No: 2
- Part No: 7AC14FLGSS
- Qty Req: 1
Our price: $637.50 List price: $1,062.50
Nut, 3/8” NF, stainless steel
- Ref No: 3
- Part No: BAC23BSS
- Qty Req: 1
Our price: $1.05 List price: $1.50
Washer, 3/8”, stainless steel, self-locking
- Ref No: 4
- Part No: BAC24BSS
- Qty Req: 1
Our price: $5.95 List price: $8.50
Impeller, thermoplastic
- Ref No: 5
- Part No: BAC26200P
- Qty Req: 1
Our price: $113.93 List price: $162.75
Impeller, cast iron (optional)
- Ref No: 5
- Part No: BAC26200CI
- Qty Req: 1
Our price: $242.03 List price: $345.75
Impeller, 316 stainless steel (-FS model) (optional)
- Ref No: 5
- Part No: BAC26200SS
- Qty Req: 1
Our price: $324.28 List price: $463.25
O-ring, body seal
- Ref No: 6
- Part No: BAC4A
- Qty Req: 1
Our price: $6.65 List price: $9.50
Seal, silicon carbide
- Ref No: 7
- Part No: BAC7SC205V
- Qty Req: 1
Our price: $146.83 List price: $209.75
Mounting frame for 205 pump
- Ref No: 8
- Part No: BAC14205HYD
- Qty Req: 1
Our price: $326.73 List price: $466.75
Mounting frame for 205 pump, 316 stainless steel (-FS model)
- Ref No: 8
- Part No: BAC14205HYDSS
- Qty Req: 1
Our price: $673.50 List price: $1,122.50
Cap screw, 3/8” NC x 3/4” hex head
- Ref No: 9
- Part No: 40950
- Qty Req: 4
Our price: $0.70 List price: $1.00
Cap screw, 3/8” NC x 3/4” hex head, stainless steel
- Ref No: 9
- Part No: 40930
- Qty Req: 4
Our price: $2.10 List price: $3.00
Cap screw, 5/16” NC x 3/4” hex head, motor to pump
- Ref No: 10
- Part No: 41330
- Qty Req: 4
Our price: $0.70 List price: $1.00
Slinger
- Ref No: 11
- Part No: BAC54
- Qty Req: 1
Our price: $1.75 List price: $2.50
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 12
- Part No: BACH33
- Qty Req: 2
Our price: $1.40 List price: $2.00
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 13
- Part No: BACH32HD
- Qty Req: 3
Our price: $2.80 List price: $4.00
Ball bearing, sealed, BAC-6-205 shaft
- Ref No: 14
- Part No: 40880
- Qty Req: 2
Our price: $20.83 List price: $29.75
Shaft, extended keyway, tang, stainless steel
- Ref No: 15
- Part No: BAC6205HYDSS
- Qty Req: 1
Our price: $174.13 List price: $248.75
Key, 1/8” x 1/8” x 13/16”, extended keyway
- Ref No: 16
- Part No: BAC25
- Qty Req: 1
Our price: $1.05 List price: $1.50
Seal support spacer for 205 series pump
- Ref No: 17
- Part No: S305
- Qty Req: 1
Our price: $14.35 List price: $20.50
Hydraulic Motor
- Ref No: 18
- Part No: BAC75HYD304N
- Qty Req: 1
Our price: $686.55 List price: $1,144.25
O-ring, #8 SAE fitting
- Ref No: 19
- Part No: 41875ACE
- Qty Req: 1
Our price: $1.05 List price: $1.50
O-ring, #10 SAE fitting
- Ref No: 20
- Part No: 41445
- Qty Req: 1
Our price: $1.05 List price: $1.50
Body, restrictor orifice, #8SAE x 1/2” NPT
- Ref No: 21
- Part No: BAC808SAE
- Qty Req: 1
Our price: $19.25 List price: $27.50
O-ring, orifice insert
- Ref No: 22
- Part No: 41448
- Qty Req: 1
Our price: $1.05 List price: $1.50
Restrictor orifice insert, .125
- Ref No: 23
- Part No: BAC798
- Qty Req: 1
Our price: $9.80 List price: $14.00
Reverse check assembly, #10 SAE x 1/2” NPT
- Ref No: 24
- Part No: BAC7810SAE
- Qty Req: 1
Our price: $26.60 List price: $38.00
Flow limiter (optional)
- Ref No: 25
- Part No: LS304N
- Qty Req: 1
Our price: $75.95 List price: $108.50
