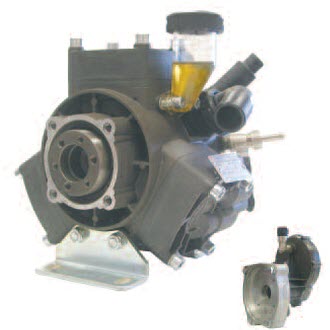

Comet APS51GR8 Diaphragm Pump

Comet APS51GR8 Diaphragm Pump

Brand:
Comet
Weight:
44.0 lb
Item #
APS51GR8
1 1

Comet APS51GR8 Diaphragm Pump

Comet APS51GR8 Diaphragm Pump

Brand:
Comet
Weight:
44.0 lb
Item #
APS51GR8

$1,971.94
$1,971.94 List Price: $3,033.75

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 5,916 points with this purchase.

See Details

View full details

Product Overview

14.5 gpm, 580 psi.

Three diaphragm pump with gear reduction for gas engines with 1" shaft. Includes pressure regulator with manual dump lever.

High pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, hydrostatic testing and agricultural spraying.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Wing Nut
    • Ref No: 1
    • Part No: 12000011
    • Qty Req: 1
    Our price: $13.84 List price: $18.45
  • Suction Elbow
    • Ref No: 2
    • Part No: 28010009
    • Qty Req: 1
    Our price: $24.37 List price: $32.49
  • O-Ring
    • Ref No: 3
    • Part No: 12100034
    • Qty Req: 1
    Our price: $1.03 List price: $1.37
  • Coupling
    • Ref No: 4
    • Part No: 28030108
    • Qty Req: 1
    Our price: $32.94 List price: $43.92
  • O-Ring
    • Ref No: 5
    • Part No: 12100173
    • Qty Req: 1
    Our price: $1.15 List price: $1.53
  • Wing Nut
    • Ref No: 7
    • Part No: 12000038
    • Qty Req: 1
    Our price: $7.37 List price: $9.83
  • Hose Barb
    • Ref No: 8
    • Part No: 28020018
    • Qty Req: 1
    Our price: $6.92 List price: $9.22
  • Gasket
    • Ref No: 9
    • Part No: 12090013
    • Qty Req: 1
    Our price: $0.82 List price: $1.09
  • Left Tap
    • Ref No: 10
    • Part No: 28260030
    • Qty Req: 1
    Our price: $63.16 List price: $84.21
  • Complete Tap
    • Ref No: 11
    • Part No: 12140014
    • Qty Req: 1
    Our price: $80.96 List price: $107.94
  • Screw
    • Ref No: 13
    • Part No: 36090006
    • Qty Req: 6
    Our price: $1.79 List price: $2.10
  • Manifold Flange
    • Ref No: 14
    • Part No: 10090095
    • Qty Req: 1
    Our price: $205.95 List price: $274.60
  • O-Ring
    • Ref No: 15
    • Part No: 12100349
    • Qty Req: 1
    Our price: $4.52 List price: $5.32
  • O-Ring
    • Ref No: 16
    • Part No: 12100345
    • Qty Req: 1
    Our price: $4.37 List price: $5.82
  • O-Ring
    • Ref No: 17
    • Part No: 12100347
    • Qty Req: 1
    Our price: $1.68 List price: $2.24
  • Oil Seal
    • Ref No: 18
    • Part No: 00190083
    • Qty Req: 1
    Our price: $12.63 List price: $16.84
  • Special Cap
    • Ref No: 19
    • Part No: 04320031
    • Qty Req: 1
    Our price: $17.84 List price: $23.78
  • Screw
    • Ref No: 20
    • Part No: 36090078
    • Qty Req: 12
    Our price: $3.85 List price: $5.13
  • Washer
    • Ref No: 21
    • Part No: 28110098
    • Qty Req: 11
    Our price: $0.48 List price: $0.57
  • Pump Manifold
    • Ref No: 22
    • Part No: 32180103
    • Qty Req: 3
    Our price: $119.00 List price: $158.67
  • O-Ring
    • Ref No: 23
    • Part No: 12100047
    • Qty Req: 6
    Our price: $0.94 List price: $1.25
  • O-Ring
    • Ref No: 24
    • Part No: 12100443
    • Qty Req: 6
    Our price: $1.14 List price: $1.52
  • Valve Seat
    • Ref No: 25
    • Part No: 30090115
    • Qty Req: 6
    Our price: $16.95 List price: $22.60
  • Valve Plate
    • Ref No: 26
    • Part No: 36040023
    • Qty Req: 6
    Our price: $2.92 List price: $3.89
  • Valve Spring
    • Ref No: 27
    • Part No: 18020015
    • Qty Req: 6
    Our price: $1.65 List price: $2.20
  • Valve Cage
    • Ref No: 28
    • Part No: 12050029
    • Qty Req: 6
    Our price: $2.00 List price: $2.67
  • Valve Assembly
    • Ref No: 29
    • Part No: 12200035
    • Qty Req: 6
    Our price: $24.78 List price: $33.04
  • O-Ring
    • Ref No: 30
    • Part No: 12100032
    • Qty Req: 6
    Our price: $1.13 List price: $1.50
  • Plug
    • Ref No: 31
    • Part No: 32020197
    • Qty Req: 3
    Our price: $38.73 List price: $51.64
  • Screw
    • Ref No: 33
    • Part No: 36090049
    • Qty Req: 2
    Our price: $9.48 List price: $12.64
  • Pump Mounting Bracket
    • Ref No: 34
    • Part No: 24000066
    • Qty Req: 2
    Our price: $35.78 List price: $42.09
  • O-Ring
    • Ref No: 35
    • Part No: 12100044
    • Qty Req: 1
    Our price: $2.36 List price: $2.48
  • Plug
    • Ref No: 36
    • Part No: 32000010
    • Qty Req: 1
    Our price: $18.85 List price: $25.13
  • Connecting Rod Assembly (Set of 3)
    • Ref No: 37
    • Part No: 02050053
    • Qty Req: 1
    Our price: $154.96 List price: $206.61
  • Piston
    • Ref No: 38
    • Part No: 24090067
    • Qty Req: 3
    Our price: $87.93 List price: $103.45
  • Compression Ring
    • Ref No: 39
    • Part No: 00200008
    • Qty Req: 3
    Our price: $10.67 List price: $14.23
  • Piston Sleeve
    • Ref No: 40
    • Part No: 04000072
    • Qty Req: 3
    Our price: $126.26 List price: $168.34
  • Diaphragm Holder Screw
    • Ref No: 41
    • Part No: 36050005
    • Qty Req: 3
    Our price: $24.29 List price: $32.39
  • Washer
    • Ref No: 42
    • Part No: 06020010
    • Qty Req: 3
    Our price: $5.14 List price: $6.85
  • Diaphragm, Buna
    • Ref No: 43
    • Part No: 18000088
    • Qty Req: 3
    Our price: $24.22 List price: $32.29
  • Pin
    • Ref No: 44
    • Part No: 30110021
    • Qty Req: 3
    Our price: $13.60 List price: $18.13
  • Snap Ring
    • Ref No: 45
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.41 List price: $0.54
  • Roller Bearing
    • Ref No: 47
    • Part No: 04370022
    • Qty Req: 1
    Our price: $53.62 List price: $71.49
  • Ring
    • Ref No: 48
    • Part No: 00090186
    • Qty Req: 1
    Our price: $1.77 List price: $2.36
  • Connecting Rod Ring
    • Ref No: 49
    • Part No: 00100021
    • Qty Req: 2
    Our price: $36.67 List price: $48.89
  • Snap Ring
    • Ref No: 50
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.12 List price: $5.49
  • Ball Bearing
    • Ref No: 51
    • Part No: 04380001
    • Qty Req: 1
    Our price: $162.93 List price: $217.24
  • 6 Holes Shaft, APS51
    • Ref No: 52
    • Part No: 00010277
    • Qty Req: 1
    Our price: $641.72 List price: $855.63
  • Oil Seal
    • Ref No: 53
    • Part No: 00190085
    • Qty Req: 1
    Our price: $20.82 List price: $27.76
  • Snap Ring
    • Ref No: 54
    • Part No: 30200002
    • Qty Req: 1
    Our price: $5.81 List price: $7.75
  • Cover
    • Ref No: 55
    • Part No: 04020141
    • Qty Req: 1
    Our price: $5.38 List price: $7.17
  • O-Ring
    • Ref No: 56
    • Part No: 12100122
    • Qty Req: 1
    Our price: $2.36 List price: $2.78
  • Oil Neck Glass
    • Ref No: 57
    • Part No: 04210015
    • Qty Req: 1
    Our price: $19.22 List price: $25.63
  • Screw
    • Ref No: 58
    • Part No: 36090002
    • Qty Req: 2
    Our price: $1.58 List price: $2.10
  • Washer
    • Ref No: 59
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.44 List price: $0.58
  • O-Ring
    • Ref No: 60
    • Part No: 12100233
    • Qty Req: 1
    Our price: $0.44 List price: $0.58
  • Crankcase
    • Ref No: 72
    • Part No: 04030115
    • Qty Req: 1
    Our price: $796.28 List price: $1,061.71
