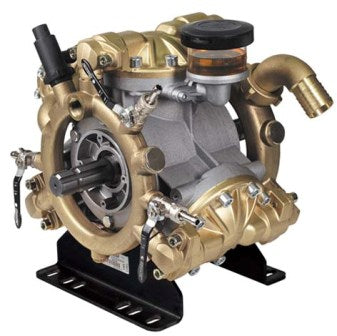

Comet IDS1401 Diaphragm Pump

Comet IDS1401 Diaphragm Pump

Brand:
Comet
Weight:
99.0 lb
Item #
IDS1401
1 1

Comet IDS1401 Diaphragm Pump

Comet IDS1401 Diaphragm Pump

Brand:
Comet
Weight:
99.0 lb
Item #
IDS1401

$3,719.08
$3,719.08 List Price: $5,721.66

Earn 11,157 points with this purchase.

See Details

View full details

Product Overview

37 gpm, 725 psi.

Three diaphragm pump with 1 3/8" male 6 spline PTO shaft on both sides.

High pressure pumps with brass heads and bronze external manifolds for excellent corrosion resistance in high pressure applications such as orchard, vegetable and vineyard spraying, de-icing and circuit board washing.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Screw
    • Ref No: 1&35
    • Part No: 36070220
    • Qty Req: 6&8
    Our price: $1.84 List price: $2.16
  • Support Cover
    • Ref No: 2
    • Part No: 04050069
    • Qty Req: 1
    Our price: $174.52 List price: $205.32
  • O-Ring
    • Ref No: 3
    • Part No: 12100558
    • Qty Req: 1
    Our price: $5.41 List price: $6.37
  • Oil Seal
    • Ref No: 4
    • Part No: 00190068
    • Qty Req: 1
    Our price: $19.95 List price: $23.47
  • Ball Bearing
    • Ref No: 5
    • Part No: 04380088
    • Qty Req: 2
    Our price: $486.07 List price: $571.85
  • Spacer
    • Ref No: 6
    • Part No: 06010264
    • Qty Req: 2
    Our price: $13.16 List price: $15.48
  • Connecting Rod Washer
    • Ref No: 7
    • Part No: 28130030
    • Qty Req: 2
    Our price: $71.37 List price: $83.97
  • Connecting Rod Ring
    • Ref No: 8
    • Part No: 00100003
    • Qty Req: 2
    Our price: $85.59 List price: $100.69
  • Roller Bearing
    • Ref No: 9
    • Part No: 04370078
    • Qty Req: 2
    Our price: $418.18 List price: $491.98
  • Eccentric Shaft
    • Ref No: 10
    • Part No: 00010488
    • Qty Req: 1
    Our price: $846.72 List price: $996.14
  • Screw
    • Ref No: 11
    • Part No: 36090189
    • Qty Req: 24
    Our price: $4.92 List price: $5.79
  • Pump Manifold
    • Ref No: 12
    • Part No: 32180340
    • Qty Req: 3
    Our price: $447.51 List price: $526.48
  • Disc
    • Ref No: 13
    • Part No: 06020056
    • Qty Req: 3
    Our price: $52.65 List price: $61.94
  • Bolt
    • Ref No: 14
    • Part No: 24190042
    • Qty Req: 3
    Our price: $5.12 List price: $6.02
  • Diaphragm (Buna)
    • Ref No: 15
    • Part No: 18000012
    • Qty Req: 3
    Our price: $40.55 List price: $47.70
  • Diaphragm (Desmopan)
    • Ref No: 15
    • Part No: 18000098
    • Qty Req: 3
    Our price: $49.87 List price: $58.67
  • Diaphragm (Viton)
    • Ref No: 15
    • Part No: 18000031
    • Qty Req: 3
    Our price: $419.43 List price: $493.45
  • Piston Sleeve
    • Ref No: 16
    • Part No: 04000083
    • Qty Req: 3
    Our price: $219.35 List price: $258.06
  • Compression Ring
    • Ref No: 17
    • Part No: 00200012
    • Qty Req: 3
    Our price: $16.70 List price: $19.65
  • Piston
    • Ref No: 18
    • Part No: 24090110
    • Qty Req: 3
    Our price: $135.14 List price: $158.99
  • Connecting Rod Assembly
    • Ref No: 19
    • Part No: 02050072
    • Qty Req: 1
    Our price: $222.53 List price: $261.80
  • Snap Ring
    • Ref No: 20
    • Part No: 30200022
    • Qty Req: 6
    Our price: $1.06 List price: $1.25
  • Connecting Rod Pin
    • Ref No: 21
    • Part No: 30110025
    • Qty Req: 3
    Our price: $44.44 List price: $52.28
  • Pump Crankcase
    • Ref No: 22
    • Part No: 04030157
    • Qty Req: 1
    Our price: $1,315.04 List price: $1,547.10
  • Oil Seal
    • Ref No: 23
    • Part No: 00190087
    • Qty Req: 1
    Our price: $15.98 List price: $18.80
  • Retaining Clip
    • Ref No: 24
    • Part No: 30200032
    • Qty Req: 1
    Our price: $9.21 List price: $10.84
  • Cap
    • Ref No: 25
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 26
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Oil Bowl
    • Ref No: 27
    • Part No: 04210012
    • Qty Req: 1
    Our price: $62.13 List price: $73.09
  • O-Ring
    • Ref No: 28
    • Part No: 12100002
    • Qty Req: 2
    Our price: $0.92 List price: $1.08
  • Compensator Support
    • Ref No: 29
    • Part No: 30020566
    • Qty Req: 1
    Our price: $64.51 List price: $75.89
  • Screw
    • Ref No: 30
    • Part No: 36090002
    • Qty Req: 2
    Our price: $1.73 List price: $2.04
  • O-Ring
    • Ref No: 31
    • Part No: 12100110
    • Qty Req: 1
    Our price: $1.07 List price: $1.26
  • O-Ring
    • Ref No: 32 and 84
    • Part No: 12100441
    • Qty Req: 1
    Our price: $0.40 List price: $0.47
  • Plug
    • Ref No: 33 72 and 85
    • Part No: 32000007
    • Qty Req: 3
    Our price: $31.94 List price: $37.58
  • Pump Mounting Bracket
    • Ref No: 34
    • Part No: 24000095
    • Qty Req: 2
    Our price: $91.84 List price: $108.05
  • Oil Cup Assembly
    • Ref No: 36
    • Part No: 12080023
    • Qty Req: 1
    Our price: $126.21 List price: $148.48
  • Pulsation Dampner
    • Ref No: 39
    • Part No: 12250026
    • Qty Req: 1
    Our price: $457.64 List price: $538.40
  • Gasket
    • Ref No: 40
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Air Valve
    • Ref No: 41
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Screw
    • Ref No: 42
    • Part No: 36090099
    • Qty Req: 8
    Our price: $2.37 List price: $2.79
  • Pressure Accumulator
    • Ref No: 43
    • Part No: 00030035
    • Qty Req: 1
    Our price: $282.85 List price: $332.77
  • Accumulator Diaphragm
    • Ref No: 44
    • Part No: 18000177
    • Qty Req: 1
    Our price: $29.62 List price: $34.85
  • Diaphragm Support Cap
    • Ref No: 45
    • Part No: 04600037
    • Qty Req: 1
    Our price: $11.94 List price: $14.05
  • O-Ring
    • Ref No: 48
    • Part No: 12100033
    • Qty Req: 1
    Our price: $1.27 List price: $1.49
  • Elbow
    • Ref No: 49
    • Part No: 28060027
    • Qty Req: 3
    Our price: $101.87 List price: $119.85
  • Screw
    • Ref No: 50
    • Part No: 36090022
    • Qty Req: 6
    Our price: $2.27 List price: $2.67
  • O-Ring
    • Ref No: 51
    • Part No: 12100003
    • Qty Req: 3
    Our price: $1.00 List price: $1.18
  • O-Ring
    • Ref No: 52
    • Part No: 12100090
    • Qty Req: 3
    Our price: $2.49 List price: $2.93
  • Valve Cage
    • Ref No: 53
    • Part No: 12050039
    • Qty Req: 6
    Our price: $3.39 List price: $3.99
  • Valve Spring
    • Ref No: 54
    • Part No: 18020248
    • Qty Req: 6
    Our price: $2.16 List price: $2.54
  • Valve
    • Ref No: 55
    • Part No: 36040031
    • Qty Req: 6
    Our price: $3.94 List price: $4.63
  • Valve Seat
    • Ref No: 56
    • Part No: 30090146
    • Qty Req: 6
    Our price: $35.27 List price: $41.49
  • Complete Valve Assembly
    • Ref No: 57
    • Part No: 12200066
    • Qty Req: 3
    Our price: $45.67 List price: $53.73
  • O-Ring
    • Ref No: 58
    • Part No: 12100018
    • Qty Req: 3
    Our price: $1.71 List price: $2.01
  • O-Ring
    • Ref No: 59
    • Part No: 12100011
    • Qty Req: 3
    Our price: $1.50 List price: $1.76
  • Elbow
    • Ref No: 60
    • Part No: 28060026
    • Qty Req: 6
    Our price: $102.04 List price: $120.05
  • O-Ring
    • Ref No: 62
    • Part No: 12100498
    • Qty Req: 1
    Our price: $2.13 List price: $2.50
  • Wing Nut
    • Ref No: 65 and 77
    • Part No: 12000038
    • Qty Req: 3
    Our price: $8.11 List price: $9.54
  • Safety Valve
    • Ref No: 64
    • Part No: 12190041
    • Qty Req: 2
    Our price: $65.78 List price: $77.39
  • Plug
    • Ref No: 63 and 73
    • Part No: 32000064
    • Qty Req: 2
    Our price: $45.67 List price: $53.73
  • Hose Barb
    • Ref No: 66 and 76
    • Part No: 28020018
    • Qty Req: 3
    Our price: $7.61 List price: $8.95
  • Gasket
    • Ref No: 67 and 75
    • Part No: 12090013
    • Qty Req: 3
    Our price: $0.90 List price: $1.06
  • Left Tap
    • Ref No: 69
    • Part No: 12140019
    • Qty Req: 1
    Our price: $93.42 List price: $109.90
  • Delivery Manifold
    • Ref No: 70
    • Part No: 04150058
    • Qty Req: 1
    Our price: $1,013.50 List price: $1,192.35
  • Right Tap
    • Ref No: 74
    • Part No: 28260032
    • Qty Req: 1
    Our price: $74.89 List price: $88.11
  • Complete Right Tap
    • Ref No: 78
    • Part No: 12140018
    • Qty Req: 1
    Our price: $80.87 List price: $95.14
  • O-Ring
    • Ref No: 79
    • Part No: 12100200
    • Qty Req: 1
    Our price: $1.32 List price: $1.55
  • Suction Elbow Tail
    • Ref No: 80
    • Part No: 28010085
    • Qty Req: 1
    Our price: $130.95 List price: $154.06
  • Wing Nut
    • Ref No: 81
    • Part No: 12000060
    • Qty Req: 1
    Our price: $62.69 List price: $73.75
  • Plug
    • Ref No: 82
    • Part No: 32000115
    • Qty Req: 1
    Our price: $42.64 List price: $50.16
  • Suction Manifold
    • Ref No: 83
    • Part No: 04150060
    • Qty Req: 1
    Our price: $1,061.18 List price: $1,248.45
