Designed for small to medium scale agricultural liquid dispersal, the MC25GR (also known as the MC25DS) from Comet is a diaphragm pump capable of putting out up to 5 gallons per minute. Its lightweight design makes is easy to mount nearly anywhere, including tractors, trucks or other spray equipment. With a fully adjustable pressure regulator, this pump is designed for watering, applying pesticides or herbicides, or spraying water-soluble paints and soaps.

Two diaphragm pump complete with pressure regulator and gearbox to mount on 3 to 5.5 hp gas engines. For spraying and weed control in small to medium dimension crops, parks, gardens, vegetable plots, greenhouses or for water soluble detergent or paint distribution. Also knows as the MC25DS.

Download Product Manual

• Max flow: 5 gpm
• Max pressure: 350 psi
• Max rpm: 550

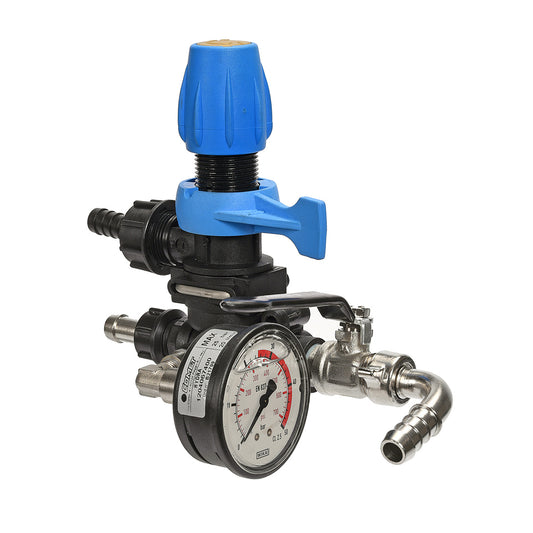

• Includes 1204.0674.00 (1204/674) pressure regulator and gearbox with 3/4" hollow shaft for mounting on 3 to 5.5 hp gas engines
• Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna and Viton® available
• Housing: Anodized aluminum
• Max fluid temperature: 140°F
• Weight: 14 lbs
