Comet MP30 Diaphragm Pump

Comet MP30 Diaphragm Pump

Brand:
Comet
Weight:
15.0 lb
Item #
MP30
1 review
1 1

Comet MP30 Diaphragm Pump

Comet MP30 Diaphragm Pump

Brand:
Comet
Weight:
15.0 lb
Item #
MP30
1 review

$821.40
$821.40 List Price: $1,263.69

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,464 points with this purchase.

See Details

View full details

Product Overview

This Comet diaphragm pump allows for up to 7 GPM and 435 PSI. Parts are made of anodized aluminum for durability against liquids. It features a twin configuration with medium pressure internal manifold pumps. It also has universal mounting rails and drive face, making this pump ideal for all kinds of uses, from heavy industrial to lawn care.

**Pressure regulator shown in pictures sold separately.**

Manufacturer description

Two diaphragm pump with universal drive face. The MP Series are constructed of anodized aluminum for maximum pressure, while maintaining resistance to most agricultural chemicals.

Resources

Download Product Manual

Features

  • Max flow: 7.7 gpm
  • Max pressure: 435 psi
  • Max rpm: 550
  • Port sizes: 3/4" HB inlet
  • Shaft: Flanged for shaft kit or gearbox
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Buna standard Desmopan® and Viton® available
  • Housing: Anodized aluminum

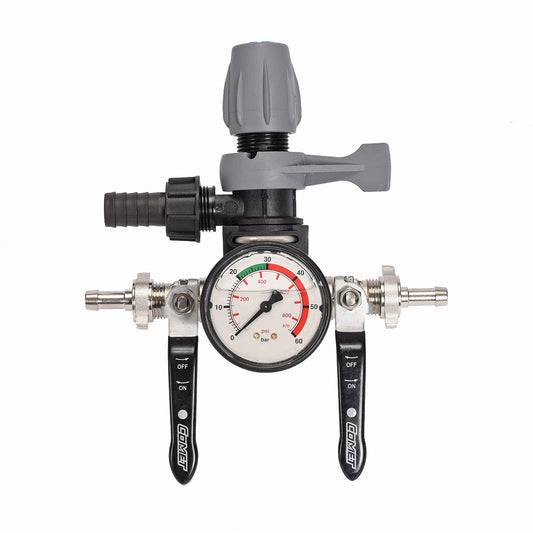

  • Recommended pressure regulator: 1204.0560.00 (1204/560)
  • Recommended gearbox: 5005/216 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 15 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Screw
    • Ref No: 1
    • Part No: 36090095
    • Qty Req: 4
    Our price: $3.58 List price: $4.21
  • Pulsation Dampner Body MP30 (Orange)
    • Ref No: 2
    • Part No: 00030021
    • Qty Req: 1
    Our price: $88.32 List price: $103.90
  • Accumulator Diaphragm, Comet Diaphragm Pump MC25 / MP20/30
    • Ref No: 3
    • Part No: 18000033
    • Qty Req: 1
    Our price: $19.58 List price: $23.03
  • Diaphragm Support Cap
    • Ref No: 4
    • Part No: 04600011
    • Qty Req: 1
    Our price: $17.05 List price: $20.06
  • Pump Crankcase
    • Ref No: 5
    • Part No: 04030083
    • Qty Req: 1
    Our price: $419.44 List price: $493.46
  • Oil Cap
    • Ref No: 7
    • Part No: 18000081
    • Qty Req: 2
    Our price: $6.60 List price: $7.77
  • Oil Neck
    • Ref No: 8
    • Part No: 04210013
    • Qty Req: 2
    Our price: $10.00 List price: $11.76
  • Flat Gasket
    • Ref No: 9
    • Part No: 12010071
    • Qty Req: 2
    Our price: $3.37 List price: $3.96
  • Air Valve
    • Ref No: 10
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Gasket
    • Ref No: 11
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Roller Bearing
    • Ref No: 12
    • Part No: 04370026
    • Qty Req: 1
    Our price: $42.25 List price: $49.71
  • Connecting Rod Washer
    • Ref No: 13
    • Part No: 28130047
    • Qty Req: 1
    Our price: $11.09 List price: $13.05
  • Connecting Rod Ring
    • Ref No: 14
    • Part No: 00100008
    • Qty Req: 2
    Our price: $26.47 List price: $31.14
  • Eccentric
    • Ref No: 15
    • Part No: 08000009
    • Qty Req: 1
    Our price: $180.83 List price: $212.74
  • Roller Bearing
    • Ref No: 16
    • Part No: 04370027
    • Qty Req: 1
    Our price: $69.78 List price: $82.09
  • Washer
    • Ref No: 17
    • Part No: 28130023
    • Qty Req: 1
    Our price: $23.89 List price: $28.11
  • Ball Bearing (MP20, MP30)
    • Ref No: 18
    • Part No: 04380037
    • Qty Req: 1
    Our price: $159.77 List price: $187.97
  • Oil Seal
    • Ref No: 19
    • Part No: 00190023
    • Qty Req: 1
    Our price: $24.14 List price: $28.40
  • Key
    • Ref No: 20
    • Part No: 16020021
    • Qty Req: 1
    Our price: $57.85 List price: $69.70
  • Shaft
    • Ref No: 21
    • Part No: 00040010
    • Qty Req: 1
    Our price: $330.79 List price: $389.16
  • O-Ring
    • Ref No: 22
    • Part No: 12100069
    • Qty Req: 1
    Our price: $5.70 List price: $6.70
  • Bolt
    • Ref No: 24
    • Part No: 36090009
    • Qty Req: 4
    Our price: $3.12 List price: $3.67
  • O-Ring
    • Ref No: 25
    • Part No: 12100057
    • Qty Req: 2
    Our price: $0.71 List price: $0.83
  • O-Ring
    • Ref No: 26
    • Part No: 12100021
    • Qty Req: 2
    Our price: $0.90 List price: $1.06
  • Connecting Rod Assembly (Set of 2)
    • Ref No: 27
    • Part No: 02050021
    • Qty Req: 1
    Our price: $106.58 List price: $125.39
  • Piston
    • Ref No: 28
    • Part No: 24090041
    • Qty Req: 2
    Our price: $75.74 List price: $89.11
  • Piston Sleeve
    • Ref No: 29
    • Part No: 04000053
    • Qty Req: 2
    Our price: $141.58 List price: $166.56
  • Piston Diaphragm, Buna - Comet Diaphragm Pump APS41 / MC25 / MP20/30
    • Ref No: 30
    • Part No: 18000020
    • Qty Req: 2
    Our price: $15.00 List price: $17.65
  • Disc
    • Ref No: 31
    • Part No: 06020008
    • Qty Req: 2
    Our price: $9.25 List price: $10.88
  • Diaphragm Holder Screw
    • Ref No: 32
    • Part No: 36050027
    • Qty Req: 2
    Our price: $13.70 List price: $16.12
  • Gudgeon Pin
    • Ref No: 33
    • Part No: 30110013
    • Qty Req: 2
    Our price: $11.65 List price: $13.71
  • Snap Ring
    • Ref No: 34
    • Part No: 30200020
    • Qty Req: 4
    Our price: $0.43 List price: $0.50
  • Delivery Hook
    • Ref No: 35
    • Part No: 12020060
    • Qty Req: 1
    Our price: $12.55 List price: $14.76
  • Screw
    • Ref No: 36
    • Part No: 36220017
    • Qty Req: 2
    Our price: $1.64 List price: $1.93
  • U-Bolt (MP20, MP30)
    • Ref No: 37
    • Part No: 04180033
    • Qty Req: 2
    Our price: $27.28 List price: $32.09
  • Plug
    • Ref No: 38
    • Part No: 32020081
    • Qty Req: 2
    Our price: $15.76 List price: $18.54
  • O-Ring
    • Ref No: 39&44
    • Part No: 12100191
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Valve Cage
    • Ref No: 40
    • Part No: 12050021
    • Qty Req: 4
    Our price: $10.41 List price: $12.25
  • Valve Spring
    • Ref No: 41
    • Part No: 18020034
    • Qty Req: 4
    Our price: $1.79 List price: $2.10
  • Valve Plate
    • Ref No: 42
    • Part No: 36040007
    • Qty Req: 4
    Our price: $2.66 List price: $3.13
  • Valve Seat
    • Ref No: 43
    • Part No: 30090057
    • Qty Req: 4
    Our price: $15.65 List price: $18.41
  • Valve Assembly
    • Ref No: 45
    • Part No: 12200021
    • Qty Req: 4
    Our price: $30.80 List price: $36.24
  • Pump Manifold
    • Ref No: 46
    • Part No: 32180069
    • Qty Req: 2
    Our price: $111.01 List price: $130.60
  • Washer
    • Ref No: 47
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.48 List price: $0.56
  • Screw
    • Ref No: 48
    • Part No: 36090097
    • Qty Req: 8
    Our price: $2.50 List price: $2.94
  • Pump Mounting Bracket
    • Ref No: 49
    • Part No: 24000043
    • Qty Req: 2
    Our price: $17.31 List price: $20.36
  • Wing Nut
    • Ref No: 50
    • Part No: 12000008
    • Qty Req: 1
    Our price: $6.10 List price: $7.18
  • Hose Barb
    • Ref No: 51
    • Part No: 28000019
    • Qty Req: 1
    Our price: $11.48 List price: $13.50
  • O-Ring
    • Ref No: 52
    • Part No: 12100039
    • Qty Req: 1
    Our price: $0.81 List price: $0.95
  • Elbow
    • Ref No: 53
    • Part No: 28030027
    • Qty Req: 1
    Our price: $18.06 List price: $21.25
