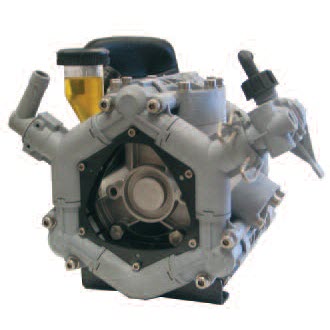

Comet P36 (Poly) Diaphragm Pump

Comet P36 (Poly) Diaphragm Pump

Brand:
Comet
Weight:
18.0 lb
Item #
P36
1 1

Comet P36 (Poly) Diaphragm Pump

Comet P36 (Poly) Diaphragm Pump

Brand:
Comet
Weight:
18.0 lb
Item #
P36

$1,532.08
$1,532.08 List Price: $2,357.04

Earn 4,596 points with this purchase.

See Details

View full details

Product Overview

9.6 gpm, 150 psi.

Three diaphragm pump with 30mm solid keyed shaft and mounting rails.

Plastic (P36) or plastic coated aluminum (P48) heads with plastic manifolds for premium corrosion resistance. Great for mild acids and mold removal agents, as well as agriculture, lawn care and pest control.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Screw
    • Ref No: 1
    • Part No: 36090171
    • Qty Req: 2
    Our price: $3.32 List price: $3.90
  • Flange
    • Ref No: 2
    • Part No: 10040013
    • Qty Req: 1
    Our price: $20.31 List price: $23.89
  • Oil Seal
    • Ref No: 3
    • Part No: 00190101
    • Qty Req: 1
    Our price: $19.26 List price: $22.66
  • Ball Bearing
    • Ref No: 4
    • Part No: 04380016
    • Qty Req: 1
    Our price: $91.89 List price: $108.10
  • Non-Throughshaft
    • Ref No: 5
    • Part No: 00010554
    • Qty Req: 1
    Our price: $440.77 List price: $518.55
  • Key
    • Ref No: 6
    • Part No: 16020018
    • Qty Req: 1
    Our price: $4.91 List price: $5.78
  • Connecting Rod Ring
    • Ref No: 7
    • Part No: 00100013
    • Qty Req: 2
    Our price: $25.98 List price: $30.57
  • Ball Bearing
    • Ref No: 8
    • Part No: 04380066
    • Qty Req: 1
    Our price: $43.99 List price: $51.75
  • Screw
    • Ref No: 10
    • Part No: 36070221
    • Qty Req: 4
    Our price: $1.79 List price: $2.11
  • Pump Mounting Bracket
    • Ref No: 11
    • Part No: 24000105
    • Qty Req: 2
    Our price: $37.67 List price: $44.32
  • Pump Crankcase
    • Ref No: 12
    • Part No: 04030163
    • Qty Req: 1
    Our price: $396.30 List price: $466.23
  • Connecting Rod Assembly
    • Ref No: 14
    • Part No: 02050075
    • Qty Req: 1
    Our price: $211.98 List price: $249.39
  • Pin
    • Ref No: 15
    • Part No: 30110021
    • Qty Req: 3
    Our price: $14.96 List price: $17.60
  • Snap Ring
    • Ref No: 16
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.44 List price: $0.52
  • Piston
    • Ref No: 17
    • Part No: 24090067
    • Qty Req: 3
    Our price: $87.93 List price: $103.45
  • Compression Ring
    • Ref No: 18
    • Part No: 00200008
    • Qty Req: 3
    Our price: $11.75 List price: $13.82
  • Piston Sleeve
    • Ref No: 19
    • Part No: 04000085
    • Qty Req: 3
    Our price: $149.14 List price: $175.46
  • Diaphragm, Viton
    • Ref No: 20
    • Part No: 18000095
    • Qty Req: 3
    Our price: $154.79 List price: $182.10
  • Disc
    • Ref No: 21
    • Part No: 06020043
    • Qty Req: 3
    Our price: $8.04 List price: $9.46
  • Screw
    • Ref No: 22
    • Part No: 36050116
    • Qty Req: 3
    Our price: $25.50 List price: $30.00
  • O-Ring
    • Ref No: 25
    • Part No: 12100233
    • Qty Req: 1
    Our price: $0.48 List price: $0.56
  • Washer
    • Ref No: 26 36 52 and 63
    • Part No: 28110099
    • Qty Req: 37
    Our price: $1.24 List price: $1.46
  • Screw
    • Ref No: 27
    • Part No: 36090203
    • Qty Req: 2
    Our price: $5.91 List price: $6.95
  • Oil Neck Glass
    • Ref No: 28
    • Part No: 04210015
    • Qty Req: 1
    Our price: $15.85 List price: $21.13
  • O-Ring
    • Ref No: 29
    • Part No: 12100122
    • Qty Req: 1
    Our price: $2.36 List price: $2.78
  • Cover
    • Ref No: 30
    • Part No: 04020141
    • Qty Req: 1
    Our price: $5.92 List price: $6.96
  • Oil Cup Assembly
    • Ref No: 33
    • Part No: 12080013
    • Qty Req: 1
    Our price: $33.13 List price: $38.98
  • Pump Manifold
    • Ref No: 34
    • Part No: 32180376
    • Qty Req: 3
    Our price: $90.69 List price: $106.69
  • Screw
    • Ref No: 35
    • Part No: 36090156
    • Qty Req: 24
    Our price: $2.64 List price: $3.11
  • Valve
    • Ref No: 37
    • Part No: 12200071
    • Qty Req: 6
    Our price: $57.60 List price: $67.77
  • Valve Cage
    • Ref No: 38
    • Part No: 12050044
    • Qty Req: 6
    Our price: $3.28 List price: $3.86
  • Valve Spring
    • Ref No: 39
    • Part No: 18020015
    • Qty Req: 6
    Our price: $1.82 List price: $2.14
  • Valve
    • Ref No: 40
    • Part No: 36040033
    • Qty Req: 6
    Our price: $6.72 List price: $7.90
  • Valve Seat
    • Ref No: 41
    • Part No: 30090160
    • Qty Req: 6
    Our price: $57.23 List price: $67.33
  • O-Ring (Viton)
    • Ref No: 42
    • Part No: 12100576
    • Qty Req: 6
    Our price: $18.03 List price: $21.21
  • Elbow Suction Coupling
    • Ref No: 44
    • Part No: 28010090
    • Qty Req: 1
    Our price: $17.93 List price: $21.09
  • Wing Nut
    • Ref No: 45
    • Part No: 12000054
    • Qty Req: 1
    Our price: $14.14 List price: $16.63
  • O-Ring (Viton)
    • Ref No: 46
    • Part No: 12100210
    • Qty Req: 1
    Our price: $6.69 List price: $7.87
  • Suction Coupling
    • Ref No: 47
    • Part No: 28030534
    • Qty Req: 1
    Our price: $21.40 List price: $25.18
  • O-Ring (Viton)
    • Ref No: 48 and 65
    • Part No: 12100604
    • Qty Req: 24
    Our price: $7.23 List price: $8.50
  • Outlet Fitting
    • Ref No: 49 and 62
    • Part No: 28060030
    • Qty Req: 6
    Our price: $30.80 List price: $36.23
  • Connection Coupling
    • Ref No: 50 and 60
    • Part No: 28030531
    • Qty Req: 4
    Our price: $30.80 List price: $36.23
  • Screw
    • Ref No: 51 and 64
    • Part No: 36090206
    • Qty Req: 12
    Our price: $5.37 List price: $6.32
  • Special Nut
    • Ref No: 53 and 61
    • Part No: 06000064
    • Qty Req: 12
    Our price: $8.45 List price: $9.94
  • Nut
    • Ref No: 56
    • Part No: 06040103
    • Qty Req: 6
    Our price: $1.28 List price: $1.51
  • Washer
    • Ref No: 57
    • Part No: 28110129
    • Qty Req: 6
    Our price: $1.07 List price: $1.26
  • Back Flange
    • Ref No: 58
    • Part No: 00090321
    • Qty Req: 1
    Our price: $50.92 List price: $59.90
  • Outlet Coupling
    • Ref No: 66
    • Part No: 28030532
    • Qty Req: 1
    Our price: $24.12 List price: $28.38
  • Elbow for Comet P36
    • Ref No: 70
    • Part No: 28030538
    • Qty Req: 1
    Our price: $25.32 List price: $29.79
  • O-Ring (Viton)
    • Ref No: 71
    • Part No: 12100064
    • Qty Req: 2
    Our price: $11.08 List price: $13.04
  • Delivery Hook
    • Ref No: 72
    • Part No: 12020060
    • Qty Req: 1
    Our price: $12.55 List price: $14.76
  • Screw
    • Ref No: 74
    • Part No: 36090207
    • Qty Req: 6
    Our price: $3.83 List price: $4.51
  • Flange
    • Ref No: 75
    • Part No: 00090323
    • Qty Req: 1
    Our price: $44.79 List price: $52.69
