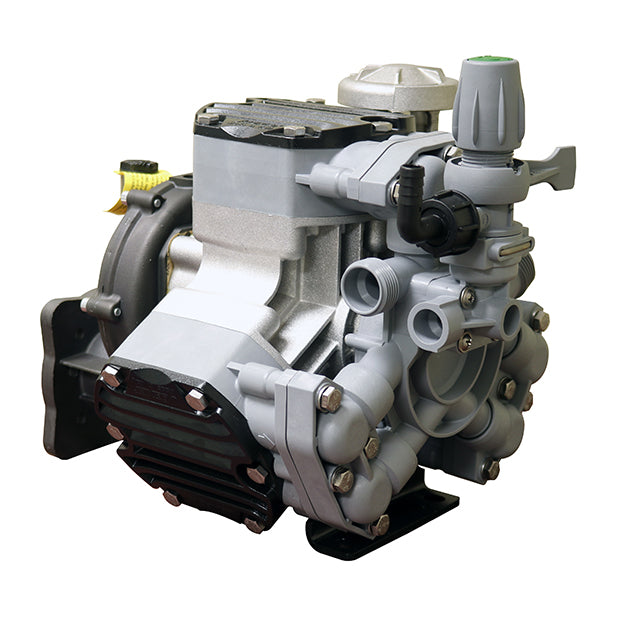

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump

Brand:
Comet
Weight:
40.55 lb
Item #
P40GR
Skip to product information
1 of 1

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump

Brand:
Comet
Weight:
40.55 lb
Item #
P40GR

Regular price $1,450.00
Sale price $1,450.00 Regular price List Price: $2,937.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,350 points with this purchase.

View full details

Collapsible content

Product Overview

The latest in innovation for the soft wash industry is here! Comet has designed a higher flow version of their poly series pumps - say hello to the P40GR. Enjoy flow rates up to 11 gpm and pressures up to 300 psi and a longer pump life due to upgraded chemical resistant components.

Manufacturer description

The Comet P40GR comes complete with pressure regulator and gearbox for mounting on 5 to 6.5 hp gas engines. With polypropylene manifolds and stainless steel parts this pump can handle even the most corrosive chemicals.

  • Chemical Resistant Wet Parts Compatible with Aggressive Soft Wash Chemicals
  • Single Piece Manifold For Reduced Leak Points & Quick Service
  • Increased Flow and Pressure (11 GPM @ 300 PSI)
  • Molded Inserts That Cannot Come Loose
  • Bolt-On Regulator To Prevent Leaks When Adjusting Pressure Knob
  • Aluminum Head Plates To Prevent Flexing of the Heads
  • Metal Oil Cup For Impact Resistance
  • Ideal Application:  Professional Soft Washing (Mold, Bacteria, Mildew, Moss, Fungus, Algae)

Features

  • Max flow: 11 gpm
  • Max pressure: 300 psi
  • Max rpm: 550
  • Horsepower required: 3.0
  • Includes pressure regulator and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, 3/4" outlet, 1/2" HB bypass
  • Pump shaft rotation: CW and CCW
  • Max fluid temperature: 140°F
  • Weight: 31 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plug
    • Ref No: 1
    • Part No: 32020254
    • Qty Req: 1
    Our price: $2.73 List price: $3.21
  • Screw
    • Ref No: 2
    • Part No: 36090293
    • Qty Req: 1
    Our price: $1.37 List price: $1.61
  • Wing Nut
    • Ref No: 3
    • Part No: 12230099
    • Qty Req: 1
    Our price: $8.47 List price: $9.96
  • Lever
    • Ref No: 4
    • Part No: 16000076
    • Qty Req: 1
    Our price: $10.64 List price: $12.52
  • Spring
    • Ref No: 5
    • Part No: 18020403
    • Qty Req: 1
    Our price: $25.94 List price: $30.52
  • Ring
    • Ref No: 6
    • Part No: 00090330
    • Qty Req: 1
    Our price: $11.49 List price: $13.52
  • Valve Spring
    • Ref No: 7
    • Part No: 24260028
    • Qty Req: 1
    Our price: $18.09 List price: $21.28
  • Gasket
    • Ref No: 8
    • Part No: 12160006
    • Qty Req: 1
    Our price: $4.51 List price: $5.30
  • O-Ring
    • Ref No: 9
    • Part No: 12100461
    • Qty Req: 1
    Our price: $0.73 List price: $0.86
  • Pin
    • Ref No: 10
    • Part No: 30050103
    • Qty Req: 1
    Our price: $52.43 List price: $61.68
  • Oil Bowl
    • Ref No: 11
    • Part No: 18090001
    • Qty Req: 1
    Our price: $14.98 List price: $17.62
  • Wing Nut
    • Ref No: 12
    • Part No: 12000059
    • Qty Req: 1
    Our price: $3.04 List price: $3.58
  • Bypass Barb 1/2"
    • Ref No: 13
    • Part No: 28010080
    • Qty Req: 1
    Our price: $10.64 List price: $12.52
  • O-Ring
    • Ref No: 14
    • Part No: 12100086
    • Qty Req: 1
    Our price: $9.49 List price: $11.16
  • Body
    • Ref No: 15
    • Part No: 04240436
    • Qty Req: 1
    Our price: $43.25 List price: $50.88
  • O-Ring
    • Ref No: 16
    • Part No: 12100243
    • Qty Req: 1
    Our price: $7.14 List price: $8.40
  • Plunger
    • Ref No: 17
    • Part No: 36000114
    • Qty Req: 1
    Our price: $25.67 List price: $30.20
  • Valve Spring
    • Ref No: 19
    • Part No: 12100207
    • Qty Req: 1
    Our price: $5.79 List price: $6.81
  • Hook
    • Ref No: 20
    • Part No: 12020051
    • Qty Req: 1
    Our price: $10.51 List price: $12.37
  • Non-Throughshaft
    • Ref No: 21
    • Part No: 36250108
    • Qty Req: 4
    Our price: $5.47 List price: $6.43
  • Body
    • Ref No: 22
    • Part No: 04240564
    • Qty Req: 1
    Our price: $23.49 List price: $27.63
  • O-Ring
    • Ref No: 23
    • Part No: 12100781
    • Qty Req: 1
    Our price: $9.61 List price: $11.30
  • Manifold for Comet P40GR
    • Ref No: 24
    • Part No: 04150084
    • Qty Req: 1
    Our price: $98.05 List price: $130.73
  • Elbow Suction Coupling
    • Ref No: 25
    • Part No: 28010090
    • Qty Req: 1
    Our price: $17.93 List price: $21.09
  • Wing Nut
    • Ref No: 26
    • Part No: 12000054
    • Qty Req: 1
    Our price: $14.14 List price: $16.63
  • Pump Crankcase
    • Ref No: 28
    • Part No: 04030420
    • Qty Req: 1
    Our price: $329.04 List price: $387.10
  • O-Ring
    • Ref No: 29
    • Part No: 12100044
    • Qty Req: 1
    Our price: $2.36 List price: $2.48
  • Plug
    • Ref No: 30
    • Part No: 32000010
    • Qty Req: 1
    Our price: $20.74 List price: $24.40
  • O-Ring
    • Ref No: 33
    • Part No: 12100039
    • Qty Req: 1
    Our price: $0.81 List price: $0.95
  • Oil Cup
    • Ref No: 34
    • Part No: 04210035
    • Qty Req: 1
    Our price: $35.14 List price: $41.34
  • Screw
    • Ref No: 35
    • Part No: 36090230
    • Qty Req: 2
    Our price: $3.03 List price: $3.57
  • O-Ring
    • Ref No: 36
    • Part No: 12100030
    • Qty Req: 1
    Our price: $1.84 List price: $2.17
  • Diaphragm
    • Ref No: 37
    • Part No: 18000001
    • Qty Req: 1
    Our price: $6.51 List price: $7.66
  • Compensator Cover
    • Ref No: 38
    • Part No: 04020522
    • Qty Req: 1
    Our price: $32.61 List price: $38.36
  • Bearing
    • Ref No: 39
    • Part No: 04380150
    • Qty Req: 1
    Our price: $58.48 List price: $68.80
  • Snap Ring
    • Ref No: 40
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.53 List price: $5.33
  • Ball Bearing
    • Ref No: 41
    • Part No: 04380001
    • Qty Req: 1
    Our price: $179.27 List price: $210.91
  • Connecting Rod Ring
    • Ref No: 42
    • Part No: 00100026
    • Qty Req: 2
    Our price: $25.31 List price: $29.78
  • Oil Seal
    • Ref No: 43
    • Part No: 00190085
    • Qty Req: 1
    Our price: $22.91 List price: $26.95
  • Shaft
    • Ref No: 44
    • Part No: 00010729
    • Qty Req: 1
    Our price: $366.44 List price: $431.11
  • Snap Ring
    • Ref No: 45
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.39 List price: $7.52
  • Screw
    • Ref No: 46
    • Part No: 36070288
    • Qty Req: 18
    Our price: $4.10 List price: $4.82
  • Washer
    • Ref No: 47
    • Part No: 28110108
    • Qty Req: 2
    Our price: $1.24 List price: $1.46
  • Connecting Rod
    • Ref No: 48
    • Part No: 02050106
    • Qty Req: 3
    Our price: $105.12 List price: $123.67
  • Piston
    • Ref No: 49
    • Part No: 24090067
    • Qty Req: 3
    Our price: $87.93 List price: $103.45
  • Compression Ring
    • Ref No: 50
    • Part No: 00200008
    • Qty Req: 3
    Our price: $11.75 List price: $13.82
  • Piston Sleeve
    • Ref No: 51
    • Part No: 04000117
    • Qty Req: 3
    Our price: $73.10 List price: $86.00
  • Diaphragm, Buna
    • Ref No: 52
    • Part No: 18000088
    • Qty Req: 3
    Our price: $26.65 List price: $31.35
  • Disc
    • Ref No: 53
    • Part No: 06020043
    • Qty Req: 3
    Our price: $8.04 List price: $9.46
  • Screw
    • Ref No: 54
    • Part No: 36050116
    • Qty Req: 3
    Our price: $25.50 List price: $30.00
  • Snap Ring
    • Ref No: 55
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.44 List price: $0.52
  • Pin
    • Ref No: 56
    • Part No: 30110021
    • Qty Req: 3
    Our price: $14.96 List price: $17.60
  • Screw
    • Ref No: 57
    • Part No: 36070282
    • Qty Req: 6
    Our price: $4.10 List price: $4.82
  • Plug
    • Ref No: 59
    • Part No: 32020470
    • Qty Req: 3
    Our price: $26.21 List price: $30.84
  • O-Ring
    • Ref No: 60
    • Part No: 12100506
    • Qty Req: 6
    Our price: $5.73 List price: $6.74
  • Spacer
    • Ref No: 61
    • Part No: 06010458
    • Qty Req: 3
    Our price: $36.60 List price: $43.06
  • Spacer
    • Ref No: 62
    • Part No: 06010457
    • Qty Req: 3
    Our price: $23.21 List price: $27.31
  • O-Ring
    • Ref No: 63
    • Part No: 12100838
    • Qty Req: 6
    Our price: $9.55 List price: $11.24
  • Valve Seat
    • Ref No: 64
    • Part No: 30090257
    • Qty Req: 6
    Our price: $28.13 List price: $33.09
  • Valve
    • Ref No: 65
    • Part No: 36040033
    • Qty Req: 6
    Our price: $6.72 List price: $7.90
  • Valve Spring
    • Ref No: 66
    • Part No: 18020015
    • Qty Req: 6
    Our price: $1.82 List price: $2.14
  • Valve Cage
    • Ref No: 67
    • Part No: 12050044
    • Qty Req: 6
    Our price: $3.28 List price: $3.86
  • Screw
    • Ref No: 68
    • Part No: 36070295
    • Qty Req: 6
    Our price: $3.42 List price: $4.02
  • P40 Pump Manifold DX (Right)
    • Ref No: 69
    • Part No: 32180563
    • Qty Req: 2
    Our price: $105.12 List price: $123.67
  • P40 Pump Manifold SX (Left)
    • Ref No: 69
    • Part No: 32180564
    • Qty Req: 1
    Our price: $105.12 List price: $123.67
  • Head Cap
    • Ref No: 70
    • Part No: 04600070
    • Qty Req: 3
    Our price: $31.67 List price: $37.26
  • Screw
    • Ref No: 73
    • Part No: 36250109
    • Qty Req: 15
    Our price: $5.47 List price: $6.43
  • O-Ring
    • Ref No: 74
    • Part No: 12100149
    • Qty Req: 1
    Our price: $5.30 List price: $6.23
  • O-Ring
    • Ref No: 75
    • Part No: 12100565
    • Qty Req: 1
    Our price: $21.79 List price: $25.63
  • O-Ring (Viton)
    • Ref No: 76
    • Part No: 12100604
    • Qty Req: 12
    Our price: $7.23 List price: $8.50
  • Elbow
    • Ref No: 77
    • Part No: 28010110
    • Qty Req: 1
    Our price: $14.48 List price: $17.03
  • O-Ring
    • Ref No: 78
    • Part No: 12100481
    • Qty Req: 1
    Our price: $6.74 List price: $7.93
  • Wing Nut
    • Ref No: 79
    • Part No: 12000049
    • Qty Req: 1
    Our price: $9.03 List price: $10.62
  • O-Ring (Viton)
    • Ref No: 80
    • Part No: 12100210
    • Qty Req: 1
    Our price: $6.69 List price: $7.87
  • Spacer
    • Ref No: 81
    • Part No: 06010459
    • Qty Req: 1
    Our price: $40.68 List price: $47.86
  • Mounting Bracket
    • Ref No: 82
    • Part No: 24000170
    • Qty Req: 1
    Our price: $33.32 List price: $39.20
  • Screw
    • Ref No: 83
    • Part No: 36070195
    • Qty Req: 3
    Our price: $3.59 List price: $4.22
  • 12080030
    • Ref No: 101
    • Part No: 12080030
    • Qty Req: 1
    Our price: $72.19 List price: $84.93
  • Complete Valve
    • Ref No: 103
    • Part No: 12200105
    • Qty Req: 6
    Our price: $39.87 List price: $46.91
  • Fittings Kit
    • Ref No: 104
    • Part No: 01992816
    • Qty Req: 1
    Our price: $53.78 List price: $63.27

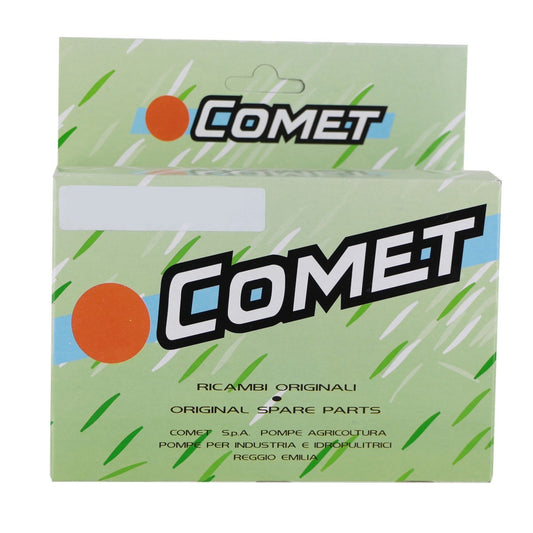

  • 5026.0419 P40 Diaphragm & Valve Kit
    • Ref No: 105
    • Part No: 50260419
    • Qty Req: 1
    Our price: $219.47 List price: $313.53
