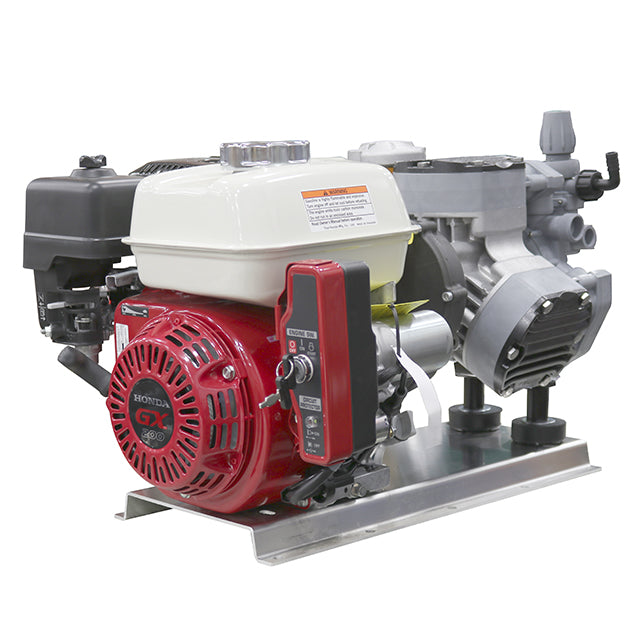

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump & Honda GX200 Electric Start on Base Plate

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump & Honda GX200 Electric Start on Base Plate

Brand:
Comet
Weight:
90.0 lb
Item #
P40GRCBPE
Skip to product information
1 of 1

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump & Honda GX200 Electric Start on Base Plate

Comet P40GR (Poly) "Soft Wash" Diaphragm Pump & Honda GX200 Electric Start on Base Plate

Brand:
Comet
Weight:
90.0 lb
Item #
P40GRCBPE

Regular price $2,075.00
Sale price $2,075.00 Regular price List Price: $3,900.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 6,225 points with this purchase.

View full details

Collapsible content

Product Overview

**Limited Qty on hand - some Honda engines and some Briggs / Vanguard**

Ease and reliability - the newest soft wash pump on the market coupled to a Honda GX200 electric start engine. The combo is mounted to a channel to be easily added to your existing spray equipment. The latest in innovation for the soft wash industry is here! Comet has designed a higher flow version of their poly series pumps - say hello to the P40GR. Enjoy flow rates up to 11 gpm and pressures up to 300 psi and a longer pump life due to upgraded chemical resistant components.

Manufacturer description

The Comet P40GR comes complete with pressure regulator and gearbox for mounting on 5 to 6.5 hp gas engines. With polypropylene manifolds and stainless steel parts this pump can handle even the most corrosive chemicals.

  • Chemical Resistant Wet Parts Compatible with Aggressive Soft Wash Chemicals
  • Single Piece Manifold For Reduced Leak Points & Quick Service
  • Increased Flow and Pressure (11 GPM @ 300 PSI)
  • Molded Inserts That Cannot Come Loose
  • Bolt-On Regulator To Prevent Leaks When Adjusting Pressure Knob
  • Aluminum Head Plates To Prevent Flexing of the Heads
  • Metal Oil Cup For Impact Resistance
  • Ideal Application:  Professional Soft Washing (Mold, Bacteria, Mildew, Moss, Fungus, Algae)

Features

  • Max flow: 11 gpm
  • Max pressure: 300 psi
  • Max rpm: 550
  • Horsepower required: 3.0
  • Includes pressure regulator and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, 3/4" outlet, 1/2" HB bypass
  • Pump shaft rotation: CW and CCW
  • Max fluid temperature: 140°F
  • Weight: 31 lbs
  • Electric Start Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Electric and recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

Diagram

Diagram parts
