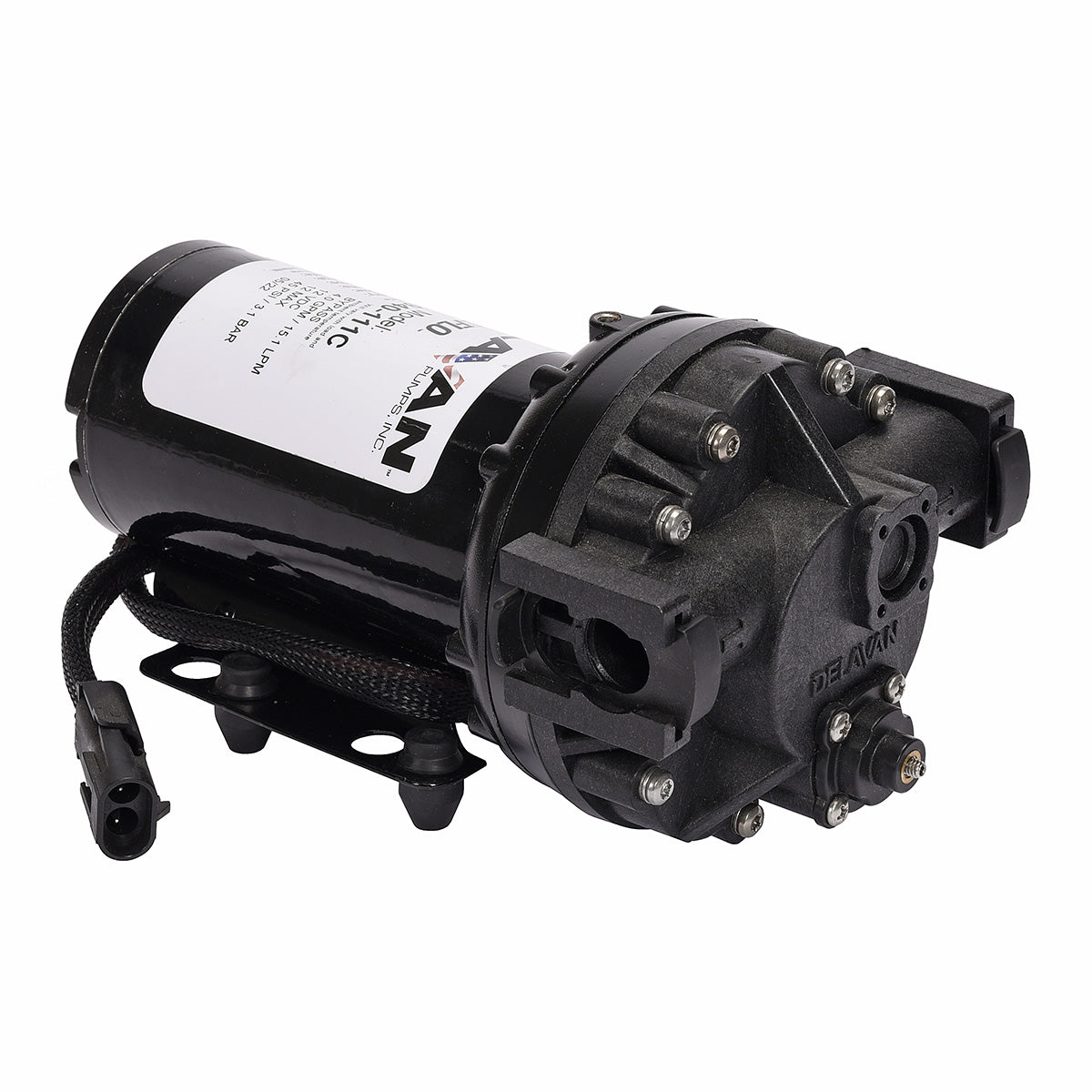

Made to last, the Delavan 5940-111C PowerFLO Electric Diaphragm Pump (Bypass) is corrosion-resistant and highly versatile, allowing for many different functions. The pumps are self-priming and feature five-chamber positive displacement. This sturdy model is made to last with rugged materials such as Polypropylene, Santoprene, Viton, stainless steel and coated steel, and the weatherproof electric connector increases this model's safety factor.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The 5940 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions. Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Download Product Manual

• Bypass
• Self-priming up to 14 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 4 gpm
• Max pressure: 45 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Port size: 3/4" quick attach
• Max fluid temperature: 140°F
• Weight: 8 lbs
