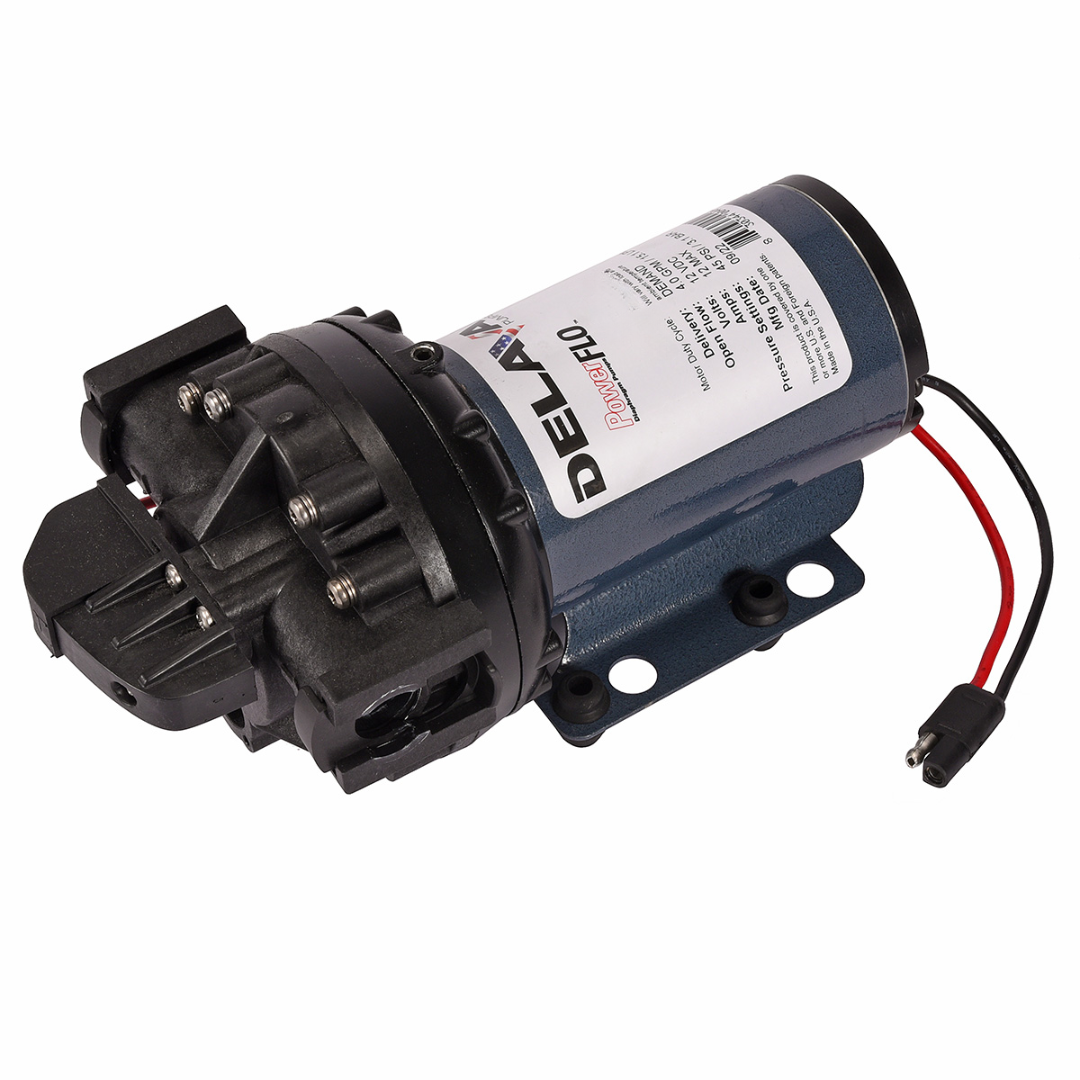

Delavan PowerFLO Electric Diaphragm Pump

(Image shown may not match exactly)

Model:  5950-201E - 12 VDC Automatic Demand

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications.  The 5950 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions.  Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Features:

• Max flow: 5 gpm
• Max pressure: 60 psi
• Inlet/Outlet: 3/4" Quick Attach
• Maximum Temperature: 140°F
• Max Suction Lift: 14'
• Motor:  12 VDC permanent magnet, thermally protected, splash proof.  2-pin molded connector i

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Download Product Manual
