E1520-17-18 Hannay Electric 12" Hose Reel (3000 PSI Max)
E1520-17-18 Hannay Electric 12" Hose Reel (3000 PSI Max)
Brand:
Hannay
Weight:
59.4 lb
Item #
E15201718
E1520-17-18 Hannay Electric 12" Hose Reel (3000 PSI Max)
E1520-17-18 Hannay Electric 12" Hose Reel (3000 PSI Max)
Brand:
Hannay
Weight:
59.4 lb
Item #
E15201718
Regular price
$748.00
Sale price
$748.00
Regular price
List Price:
$845.00
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Earn 2,244 points with this purchase.
Collapsible content
Product Overview
With the ability to hold up to 300 feet of a 3/8" ID hose or 200' or a 1/2" ID hose, this electric hose reel from Hannay is extremely practical. It's also incredibly easy to use, and rewinding has never been easier because of its 1/3 HP motor. It can withstand up to 3000 PSI, so use it with any of your powerful hoses and to accomplish any industrial task.

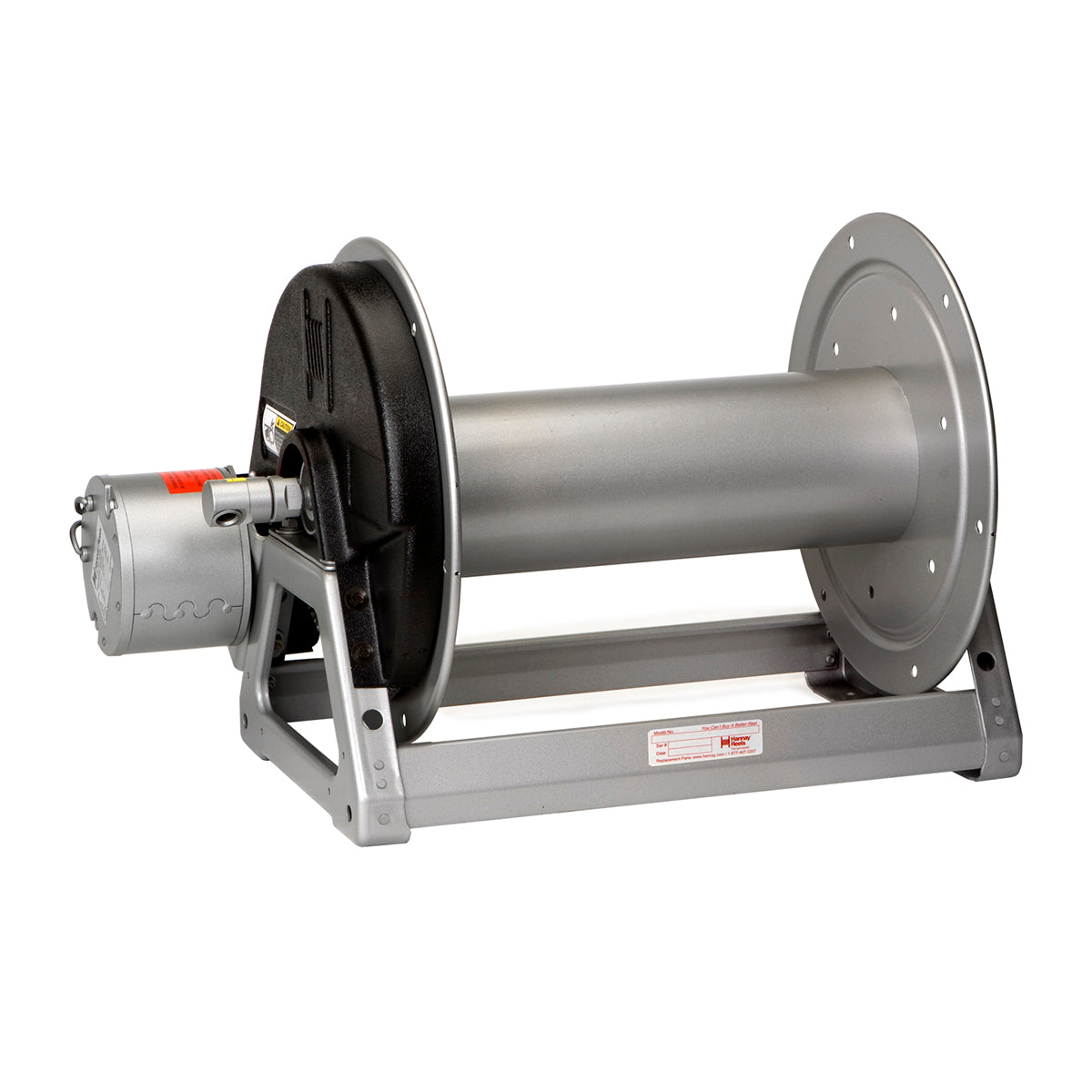

**This model is 12" between the discs. 18" reel shown in picture**
**This model is 12" between the discs. 18" reel shown in picture**
Manufacturer description
Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more – never retrofitted to the job. That means you can trust Hannay reels
Resources
Features
- Rewind: Electric
- Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
- Distance between discs: 12"
- 1/3 hp electric motor (12V power source needed)
- Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
- Standard outlet: 1/2" female NPT threads
- Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
- Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
- Hose/Cable Size: 1/4" to 5/8" ID
- Capacity of Reel: 125 to 350 feet depending on ID of hose
- 1/4" ID hose capacity: 350 feet
- 3/8" ID hose capacity: 300 feet
- 1/2" ID hose capacity: 200 feet
- 5/8" ID hose capacity: 125 feet
- Approximate weight: 49 lbs
Parts breakdown
Diagram
Parts list
-
-
-
-
-
-
Chain Guard, Molded (Left) for Hannay 1500 Series Electric Hose ReelsOur price: $32.30 List price: $32.00
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
