FMC John Bean 130VS Piston Pump

FMC John Bean 130VS Piston Pump

Brand:
FMC/John Bean
Weight:
180.0 lb
Item #
5257577
1 1

FMC John Bean 130VS Piston Pump

FMC John Bean 130VS Piston Pump

Brand:
FMC/John Bean
Weight:
180.0 lb
Item #
5257577

$8,532.90
$8,532.90 List Price: $8,982.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

16 hrs 25 minsship out same day. Learn more

Earn 25,599 points with this purchase.

See Details

View full details

Product Overview

35 GPM, 700 PSI.

All FMC pumps have cast iron cases; positive-action disc-type hardened stainless steel valves; non-wearing ceramic cylinders for long life and corrosion resistance; heavy-duty, oversized ball bearings; spring-loaded seals to keep oil in and dirt out and all working parts are totally enclosed and lubricated in an oil bath.

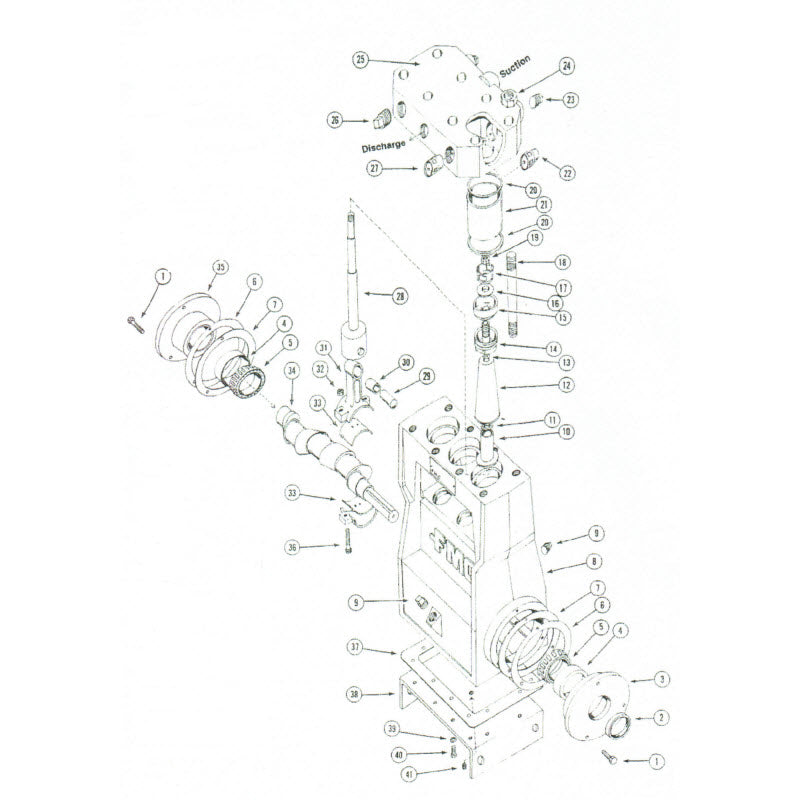

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: 2
    • Part No: 5257492
    • Qty Req: 1
    Our price: $17.20 List price: $16.20
  • Bearing Housing
    • Ref No: 3
    • Part No: 5254176
    • Qty Req: 1
    Our price: $168.15 List price: $177.00
  • Cup Bearing Timken
    • Ref No: 4
    • Part No: 320124
    • Qty Req: 2
    Our price: $60.50 List price: $56.00
  • Cone Bearing Timken
    • Ref No: 5
    • Part No: 320125
    • Qty Req: 2
    Our price: $81.00 List price: $80.00
  • Shim
    • Ref No: 6
    • Part No: 5254178
    • Qty Req: 0
    Our price: $4.04 List price: $4.25
  • Gasket
    • Ref No: 7
    • Part No: 5254177
    • Qty Req: 2
    Our price: $4.04 List price: $4.25
  • Pump Case
    • Ref No: 8
    • Part No: 5253742
    • Qty Req: 1
    Our price: $1,686.25 List price: $1,775.00
  • Plug 3/4 Blk. Std.
    • Ref No: 9
    • Part No: 11471
    • Qty Req: 2
    Our price: $3.80 List price: $4.00
  • Sleeve
    • Ref No: 10
    • Part No: 5255823
    • Qty Req: 3
    Our price: $2.85 List price: $3.00
  • Umbrella Washer
    • Ref No: 11
    • Part No: 5256683
    • Qty Req: 3
    Our price: $34.36 List price: $32.00
  • Umbrella
    • Ref No: 12
    • Part No: 5255826
    • Qty Req: 3
    Our price: $9.50 List price: $10.00
  • O-Ring
    • Ref No: 13
    • Part No: 1101176
    • Qty Req: 3
    Our price: $3.60 List price: $4.00
  • Packing Cup Holder
    • Ref No: 14
    • Part No: 8495
    • Qty Req: 3
    Our price: $146.58 List price: $154.29
  • Cylinder Packing, 2-1/4"
    • Ref No: 15
    • Part No: A3434N
    • Qty Req: 3
    Our price: $37.31 List price: $39.27
  • Packing Washer
    • Ref No: 16
    • Part No: 1207289
    • Qty Req: 3
    Our price: $5.46 List price: $5.75
  • Nut, Plunger-Slotted (Brass)
    • Ref No: 17
    • Part No: A5016
    • Qty Req: 3
    Our price: $55.10 List price: $58.00
  • Stud
    • Ref No: 18
    • Part No: 5255827
    • Qty Req: 8
    Our price: $17.58 List price: $18.50
  • Hex Nut (Brass)
    • Ref No: 19
    • Part No: 8309
    • Qty Req: 3
    Our price: $5.23 List price: $5.50
  • Cylinder Gasket
    • Ref No: 20
    • Part No: 1280024
    • Qty Req: 6
    Our price: $3.80 List price: $4.00
  • Ceramic Cylinder Steel Lined, 2-1/4" *
    • Ref No: 21
    • Part No: 1209139
    • Qty Req: 3
    Our price: $261.25 List price: $275.00
  • Suction Valve Assembly
    • Ref No: 22
    • Part No: 5283586
    • Qty Req: 3
    Our price: $128.25 List price: $135.00
  • Valve Chamber
    • Ref No: 25
    • Part No: 5266484
    • Qty Req: 1
    Our price: $871.90 List price: $917.79
  • Pipe Plug, 1-1/4"
    • Ref No: 26
    • Part No: 1187630
    • Qty Req: 2
    Our price: $9.26 List price: $9.75
  • Discharge Valve Assembly
    • Ref No: 27
    • Part No: 5283587
    • Qty Req: 3
    Our price: $128.25 List price: $135.00
  • Crosshead Assembly
    • Ref No: 28
    • Part No: 5254181
    • Qty Req: 3
    Our price: $313.50 List price: $330.00
  • Wrist Pin
    • Ref No: 29
    • Part No: 5262026
    • Qty Req: 3
    Our price: $42.66 List price: $44.90
  • Bushing
    • Ref No: 30
    • Part No: 5254242
    • Qty Req: 3
    Our price: $31.35 List price: $33.00
  • Connecting Rod Assembly
    • Ref No: 31
    • Part No: 5262025
    • Qty Req: 3
    Our price: $296.80 List price: $296.80
  • Bearing Insert (Pair)
    • Ref No: 33
    • Part No: 5257669
    • Qty Req: 3
    Our price: $62.56 List price: $65.85
  • Crankshaft
    • Ref No: 34
    • Part No: 5253744
    • Qty Req: 1
    Our price: $1,140.00 List price: $1,200.00
  • Bearing Housing
    • Ref No: 35
    • Part No: 5256653
    • Qty Req: 1
    Our price: $323.70 List price: $323.70
  • Bolt
    • Ref No: 36
    • Part No: 5257481
    • Qty Req: 6
    Our price: $14.73 List price: $15.50
  • Base Gasket
    • Ref No: 37
    • Part No: 5254217
    • Qty Req: 1
    Our price: $5.46 List price: $5.75
  • Mounting Base
    • Ref No: 38
    • Part No: 5257793
    • Qty Req: 1
    Our price: $95.00 List price: $100.00
  • Spring Washer 3/8
    • Ref No: 39
    • Part No: 1177455
    • Qty Req: 12
    Our price: $3.80 List price: $4.00
  • Cap Screw (John Bean R10, R5B, R20-20, 130VS, 125VS)
    • Ref No: 40
    • Part No: 00286
    • Qty Req: 12
    Our price: $1.66 List price: $1.75
  • Magnetic drain plug, 1/4î pipe
    • Ref No: 41
    • Part No: 1101305
    • Qty Req: 1
    Our price: $17.10 List price: $18.00
