FMC John Bean 6-60D Piston Pump

FMC John Bean 6-60D Piston Pump

Brand:
FMC/John Bean
Weight:
380.0 lb
Item #
1283527
1 1

FMC John Bean 6-60D Piston Pump

FMC John Bean 6-60D Piston Pump

Brand:
FMC/John Bean
Weight:
380.0 lb
Item #
1283527

$21,996.43
$21,996.43 List Price: $23,154.14

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 65,989 points with this purchase.

See Details

View full details

Product Overview

80 GPM, 600 PSI. (Does not include air chamber, gauge, and relief valve, use part number 1279583 for complete pump assembly)

All FMC pumps have cast iron cases; positive-action disc-type hardened stainless steel valves; non-wearing ceramic cylinders for long life and corrosion resistance; heavy-duty, oversized ball bearings; spring-loaded seals to keep oil in and dirt out and all working parts are totally enclosed and lubricated in an oil bath.

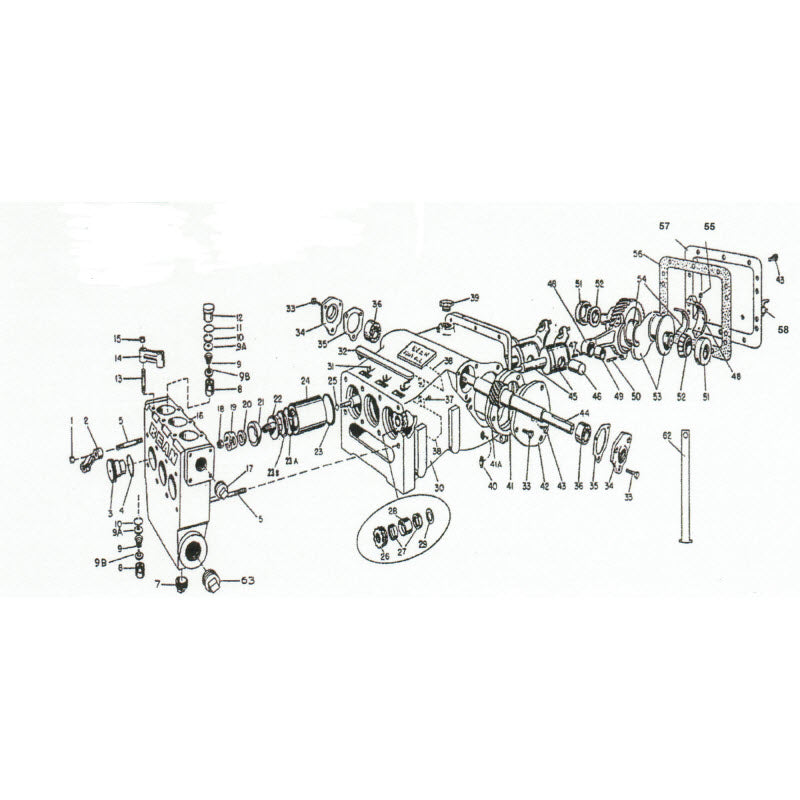

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cylinder Head Clamp
    • Ref No: 2
    • Part No: A80392
    • Qty Req: 3
    Our price: $67.83 List price: $71.40
  • Cylinder Head
    • Ref No: 3
    • Part No: 1283531
    • Qty Req: 3
    Our price: $149.96 List price: $157.85
  • O-Ring, Cylinder Head
    • Ref No: 4
    • Part No: 1177476
    • Qty Req: 3
    Our price: $2.38 List price: $2.50
  • Stud, Cylinder Clamp (Long)
    • Ref No: 5
    • Part No: 5251859
    • Qty Req: 6
    Our price: $18.53 List price: $19.50
  • Stud, Cylinder Clamp (Short)
    • Ref No: 6
    • Part No: 1248349
    • Qty Req: 2
    Our price: $19.00 List price: $20.00
  • Pipe Plug, 2"
    • Ref No: 7
    • Part No: 1105121
    • Qty Req: 3
    Our price: $9.26 List price: $9.75
  • Valve Assembly (Includes 8 through 10)
    • Ref No: 41496
    • Part No: 5255419
    • Qty Req: 6
    Our price: $118.75 List price: $125.00
  • Valve Cover O-Ring
    • Ref No: 11
    • Part No: 1181154
    • Qty Req: 3
    Our price: $2.38 List price: $2.50
  • Valve Cover
    • Ref No: 12
    • Part No: 1283530
    • Qty Req: 3
    Our price: $58.38 List price: $61.45
  • Stud, Valve Cover Clamp
    • Ref No: 13
    • Part No: 1248372
    • Qty Req: 6
    Our price: $4.75 List price: $5.00
  • Valve Chamber (6-60D)
    • Ref No: 16
    • Part No: 5257262
    • Qty Req: 1
    Our price: $1,330.00 List price: $1,400.00
  • Pipe Plug, 1-1/4"
    • Ref No: 17
    • Part No: 1187630
    • Qty Req: 1
    Our price: $9.26 List price: $9.75
  • Hex Nut (Brass)
    • Ref No: 18
    • Part No: 8309
    • Qty Req: 3
    Our price: $5.23 List price: $5.50
  • Nut, Plunger-Slotted (Brass)
    • Ref No: 19
    • Part No: A5016
    • Qty Req: 3
    Our price: $55.10 List price: $58.00
  • Washer, Plunger Cup
    • Ref No: 20
    • Part No: 1216753
    • Qty Req: 3
    Our price: $5.94 List price: $6.25
  • Packing Cup, 2-3/4"
    • Ref No: 21
    • Part No: A268N
    • Qty Req: 3
    Our price: $56.53 List price: $59.50
  • Cup, Plunger (Brass)
    • Ref No: 22
    • Part No: A91663
    • Qty Req: 3
    Our price: $123.50 List price: $130.00
  • Cylinder Gasket
    • Ref No: 23
    • Part No: 1279676
    • Qty Req: 6
    Our price: $3.56 List price: $3.75
  • Cylinder (Ceramic Lined)
    • Ref No: 24
    • Part No: 1267586
    • Qty Req: 3
    Our price: $268.76 List price: $282.90
  • O-Ring
    • Ref No: 25
    • Part No: 1101176
    • Qty Req: 3
    Our price: $3.60 List price: $4.00
  • Nut, Plunger Rod Packing
    • Ref No: 26
    • Part No: 1266323
    • Qty Req: 2
    Our price: $38.00 List price: $40.00
  • Oil Seal
    • Ref No: 27
    • Part No: 1177489
    • Qty Req: 6
    Our price: $17.54 List price: $18.46
  • Sleeve, Plunger Rod Seal
    • Ref No: 28
    • Part No: 1266365
    • Qty Req: 3
    Our price: $23.66 List price: $24.90
  • Washer, Plunger Rod Seal
    • Ref No: 29
    • Part No: 19510
    • Qty Req: 3
    Our price: $4.85 List price: $5.10
  • Pump Case
    • Ref No: 30
    • Part No: 5257698
    • Qty Req: 1
    Our price: $2,351.25 List price: $2,475.00
  • Grease Fittings, 1/8"
    • Ref No: 31
    • Part No: 18609
    • Qty Req: 3
    Our price: $1.90 List price: $2.00
  • Inspection Plate Assembly
    • Ref No: 32
    • Part No: 1215009
    • Qty Req: 1
    Our price: $137.75 List price: $145.00
  • Cover, Crankshaft Bearing
    • Ref No: 34
    • Part No: 5257338
    • Qty Req: 2
    Our price: $223.00 List price: $223.02
  • Gasket, Bearing Cover
    • Ref No: 35
    • Part No: A91674
    • Qty Req: 2
    Our price: $7.60 List price: $8.00
  • Bearing, Crankshaft
    • Ref No: 36
    • Part No: 1272558
    • Qty Req: 2
    Our price: $113.97 List price: $119.97
  • Screw
    • Ref No: 37
    • Part No: 1101151
    • Qty Req: 4
    Our price: $2.14 List price: $2.25
  • Oil Cap
    • Ref No: 39
    • Part No: A5054
    • Qty Req: 1
    Our price: $48.88 List price: $65.17
  • Drain Plug (Magnetic)
    • Ref No: 40
    • Part No: 1187048
    • Qty Req: 2
    Our price: $5.70 List price: $6.00
  • Gasket, Bearing Housing
    • Ref No: 41
    • Part No: A91675
    • Qty Req: 2
    Our price: $3.99 List price: $4.20
  • Shim .005 (Use As Required)
    • Ref No: 41A
    • Part No: 1252595
    • Qty Req: As Req'd
    Our price: $2.28 List price: $2.40
  • Housing, Eccentric Bearing
    • Ref No: 42
    • Part No: 1248369
    • Qty Req: 2
    Our price: $261.25 List price: $275.00
  • Screw
    • Ref No: 43
    • Part No: 1106980
    • Qty Req: 16
    Our price: $2.38 List price: $2.50
  • Pinion Shaft
    • Ref No: 44
    • Part No: 34654
    • Qty Req: 1
    Our price: $1,092.50 List price: $1,150.00
  • Crosshead & Plunger Rod Assembly
    • Ref No: 45
    • Part No: 1252939
    • Qty Req: 3
    Our price: $332.50 List price: $350.00
  • Wrist Pin
    • Ref No: 46
    • Part No: A91014
    • Qty Req: 3
    Our price: $47.98 List price: $50.50
  • Set Screw
    • Ref No: 47
    • Part No: 1182554
    • Qty Req: 6
    Our price: $1.90 List price: $2.00
  • Connecting Rod Assembly (49, 50, & 55)
    • Ref No: 48
    • Part No: 5266814
    • Qty Req: 3
    Our price: $342.72 List price: $342.72
  • Bushing
    • Ref No: 49
    • Part No: 9226
    • Qty Req: 3
    Our price: $39.98 List price: $39.98
  • Bolt
    • Ref No: 50
    • Part No: 18744
    • Qty Req: 6
    Our price: $16.15 List price: $17.00
  • Cup, Roller Bearing
    • Ref No: 51
    • Part No: 1177474
    • Qty Req: 2
    Our price: $63.65 List price: $67.00
  • Cone, Roller Bearing
    • Ref No: 52
    • Part No: 1177473
    • Qty Req: 2
    Our price: $138.99 List price: $146.30
  • Crankshaft & Gear Assembly
    • Ref No: 53
    • Part No: 1285094
    • Qty Req: 1
    Our price: $1,528.80 List price: $1,609.26
  • Connecting Rod Bearing
    • Ref No: 54
    • Part No: 1280910
    • Qty Req: 3
    Our price: $105.67 List price: $105.67
  • Gasket, Pump Case Cover
    • Ref No: 56
    • Part No: A91676
    • Qty Req: 1
    Our price: $30.21 List price: $31.80
  • Cover, Pump Case
    • Ref No: 57
    • Part No: 1250332
    • Qty Req: 1
    Our price: $90.25 List price: $95.00
  • Petcock, Oil Level
    • Ref No: 58
    • Part No: 1187039
    • Qty Req: 1
    Our price: $25.89 List price: $27.25
  • Remover Tool, Plunger Cup
    • Ref No: 62
    • Part No: A5049
    • Qty Req: 1
    Our price: $186.20 List price: $196.00
  • Pipe Plug, 2-1/2"
    • Ref No: 63
    • Part No: 1105133
    • Qty Req: 1
    Our price: $11.40 List price: $12.00
