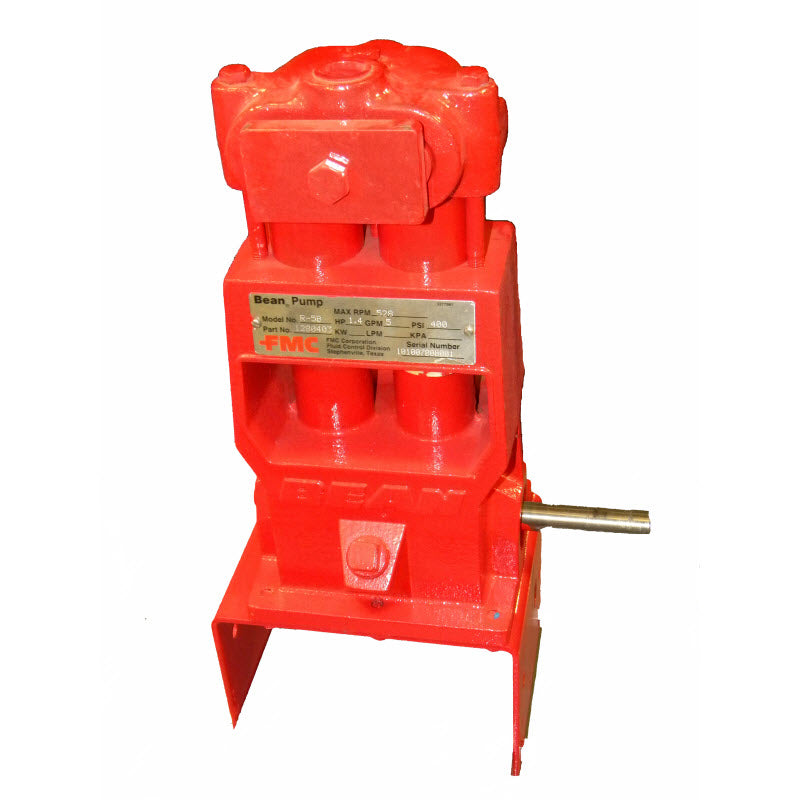

FMC John Bean R5B Piston Pump

FMC John Bean R5B Piston Pump

Brand:
FMC/John Bean
Weight:
50.0 lb
Item #
1280403
1 1

FMC John Bean R5B Piston Pump

FMC John Bean R5B Piston Pump

Brand:
FMC/John Bean
Weight:
50.0 lb
Item #
1280403

$4,589.75
$4,589.75 List Price: $4,831.31

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 13,769 points with this purchase.

See Details

View full details

Product Overview

** This pump is obsolete and has been replaced by R10 (1244299). Parts and repair kits may still be available for purchase. Please contact a customer service representative for assistance.**

5 gpm, 400 psi.

All FMC pumps have cast iron cases; positive-action disc-type hardened stainless steel valves; non-wearing ceramic cylinders for long life and corrosion resistance; heavy-duty, oversized ball bearings; spring-loaded seals to keep oil in and dirt out and all working parts are totally enclosed and lubricated in an oil bath.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap Screw (John Bean R5B, R10, R20-20)
    • Ref No: 1
    • Part No: 00513
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Valve Cover Clamp
    • Ref No: 2
    • Part No: 1255887
    • Qty Req: 1
    Our price: $28.50 List price: $30.00
  • Valve Cover
    • Ref No: 3
    • Part No: 1219614
    • Qty Req: 2
    Our price: $12.11 List price: $12.75
  • O-Ring
    • Ref No: 4
    • Part No: 1177394
    • Qty Req: 6
    Our price: $1.90 List price: $2.00
  • Valve Spring & Disc Assembly
    • Ref No: 5
    • Part No: 5253499
    • Qty Req: 4
    Our price: $11.38 List price: $11.98
  • Valve Cage
    • Ref No: 6
    • Part No: 1219610
    • Qty Req: 4
    Our price: $11.48 List price: $12.08
  • Valve Seat
    • Ref No: 8
    • Part No: 1219615
    • Qty Req: 4
    Our price: $15.87 List price: $16.70
  • 18" B&G COMPLETE WAND ASSY
    • Ref No: 9
    • Part No: 00224
    • Qty Req: 3
    Our price: $266.54 List price: $280.57
  • Valve Chamber (Bare)
    • Ref No: 10
    • Part No: 1241397
    • Qty Req: 1
    Our price: $223.25 List price: $235.00
  • Valve Chamber Assembly (Loaded) R5/R10
    • Ref No: 10
    • Part No: 1241402
    • Qty Req: 1
    Our price: $359.10 List price: $378.00
  • Cylinder Gasket
    • Ref No: 11
    • Part No: A91684
    • Qty Req: 4
    Our price: $4.28 List price: $4.50
  • Ceramic Cylinder, 1-3/8"
    • Ref No: 12
    • Part No: 1249654
    • Qty Req: 2
    Our price: $93.25 List price: $98.16
  • Cup Bolt
    • Ref No: 13
    • Part No: 1284516
    • Qty Req: 2
    Our price: $3.33 List price: $3.50
  • Packing Washer
    • Ref No: 15
    • Part No: 5257217
    • Qty Req: 2
    Our price: $23.75 List price: $25.00
  • Packing Cup, 1-3/8"
    • Ref No: 16
    • Part No: 1253428
    • Qty Req: 2
    Our price: $12.35 List price: $13.00
  • Packing Cup Holder
    • Ref No: 17
    • Part No: 1282558
    • Qty Req: 2
    Our price: $55.29 List price: $58.20
  • O-Ring
    • Ref No: 18
    • Part No: 1101339
    • Qty Req: 2
    Our price: $1.36 List price: $1.43
  • Umbrella
    • Ref No: 19
    • Part No: 1279148
    • Qty Req: 2
    Our price: $3.33 List price: $3.50
  • Umbrella Washer
    • Ref No: 20
    • Part No: 1269388
    • Qty Req: 2
    Our price: $15.20 List price: $16.00
  • Sleeve
    • Ref No: 21
    • Part No: 1218743
    • Qty Req: 2
    Our price: $3.09 List price: $3.25
  • Pump Case
    • Ref No: 23
    • Part No: 1278187
    • Qty Req: 1
    Our price: $380.00 List price: $400.00
  • Plug 3/4 Blk. Std.
    • Ref No: 24
    • Part No: 11471
    • Qty Req: 1
    Our price: $3.80 List price: $4.00
  • Crosshead
    • Ref No: 25
    • Part No: 1216823
    • Qty Req: 2
    Our price: $68.40 List price: $72.00
  • Wrist Pin
    • Ref No: 26
    • Part No: 1219650
    • Qty Req: 2
    Our price: $13.78 List price: $14.50
  • Connecting Rod Assembly
    • Ref No: 27
    • Part No: 1219371
    • Qty Req: 2
    Our price: $603.25 List price: $635.00
  • Bearing
    • Ref No: 29
    • Part No: 1187873
    • Qty Req: 2
    Our price: $28.03 List price: $29.50
  • Oil Seal
    • Ref No: 30
    • Part No: 1187874
    • Qty Req: 2
    Our price: $15.20 List price: $16.00
  • Snap Ring
    • Ref No: 31
    • Part No: 1118727
    • Qty Req: 2
    Our price: $3.33 List price: $3.50
  • Gasket, Pump Base
    • Ref No: 32
    • Part No: 1216820
    • Qty Req: 1
    Our price: $5.70 List price: $6.00
  • Mounting Base
    • Ref No: 33
    • Part No: 1219855
    • Qty Req: 1
    Our price: $96.90 List price: $102.00
  • Cap Screw (John Bean R10, R5B, R20-20, 130VS, 125VS)
    • Ref No: 34
    • Part No: 00286
    • Qty Req: 10
    Our price: $1.66 List price: $1.75
  • Plug 1/8"
    • Ref No: 35
    • Part No: 1187316
    • Qty Req: 1
    Our price: $2.38 List price: $2.50
  • Valve Repair Tool
    • Ref No: 36
    • Part No: 1250638
    • Qty Req: 1
    Our price: $65.10 List price: $68.53
  • Oil Slinger
    • Ref No: 38
    • Part No: 1220366
    • Qty Req: 1
    Our price: $14.25 List price: $15.00
