Build an amazing sprayer system with this four-stroke 11 HP Honda engine. Ready to handle some of the best performing pumps out there, use this motor as the bast of your own customer agriculture or forestry-ready rig. Simple throttle control and easily accessible spark plug make maintenance a breeze.

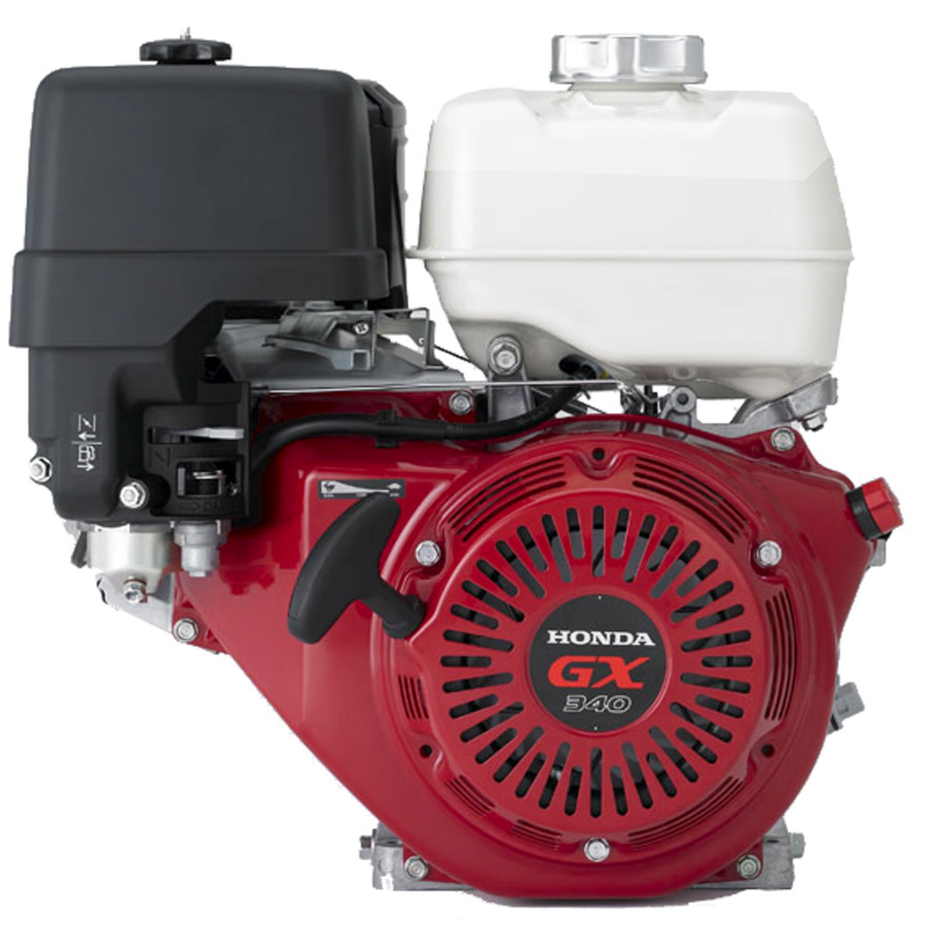

The Honda 340 GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.

Download Product Manual

• Engine type: Air-cooled 4-stroke OHV
• Starting system: Recoil starter
• Bore x stroke: 88 X 64 mm
• Displacement: 389 cm3
• Net power output: 10.7 hp (8.0 kW) @ 3,600 rpm
• Net torque: 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
• PTO shaft rotation: Counterclockwise (from PTO shaft side)
• Compression ratio: 8.2:1
• Lamp/Charge coil options: 25W, 50W / 1A, 3A, 10A, 18A
• Carburetor: Butterfly float type
• Ignition system: Digital CDI with variable timing
• Lubrication system: Splash
• Governor system: Centrifugal mass type
• Air cleaner: Dual element
• Oil capacity: 1.16 US qt (1.1 L)
• Fuel tank capacity: 6.4 U.S. qts (6.1 liters)
• Fuel: Unleaded 86 octane or higher
• Dry weight: 69 lb (31.5 kg)
• Dimensions: 16.0" L (407 mm) x 19.1" W (485 mm) x 17.7" H (449 mm)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)
