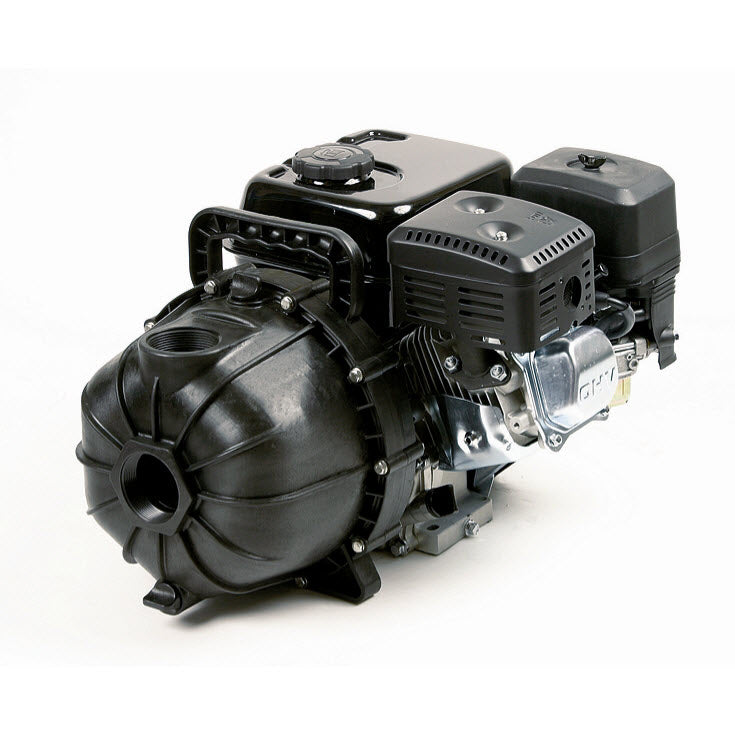

Hypro 1542P-55SP 2" Poly Transfer Pump

Hypro 1542P-55SP 2" Poly Transfer Pump

Brand:
Hypro
Weight:
40.0 lb
Item #
1542P55SP
1 1

Hypro 1542P-55SP 2" Poly Transfer Pump

Hypro 1542P-55SP 2" Poly Transfer Pump

Brand:
Hypro
Weight:
40.0 lb
Item #
1542P55SP

$369.25
$369.25 List Price: $671.36

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,108 points with this purchase.

See Details

View full details

Product Overview

Are you looking for a centrifugal pump for tank filling, liquid fertilizer application or floodwater draining? The Hypro 1542P-55SP 2 inch Poly Transfer Pump is a well-designed and compact powerhouse of a machine. Standard features like an air filter, NGK spark plug and muffler ensure good performance without too much rumble.

Manufacturer description

Hypro Self-Priming Polypropylene Centrifugal Pumps handle big, high-capacity, liquid transfer jobs with ease. Use them for transferring water, liquid fertilizers, and other chemicals compatible with pump materials. Make short work of other farm jobs: filling nurse tanks, watering seedbeds, and transferring liquids. This self-priming model makes it ideal for de-watering applications.

Resources

Download Product Manual

Features

  • 2" x 2" poly pump head coupled to 5.5 hp PowerPro engine
  • Max flow: 150 gpm
  • Max pressure: 58 psi
  • Max head: 134 feet
  • Max suction lift: 25 feet
  • Port sizes: 2" x 2" FNPT
  • Housing: Polypropylene
  • Impeller: Nylon
  • Seal material: EPDM
  • Weight: 40 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Mounting Flange
    • Ref No: 3
    • Part No: 07511540P
    • Qty Req: 1
    Our price: $57.07 List price: $70.46
  • Diffuser Gasket
    • Ref No: 4
    • Part No: 17000209
    • Qty Req: 1
    Our price: $2.27 List price: $2.80
  • Pump Body O-Ring
    • Ref No: 5
    • Part No: 17200244
    • Qty Req: 1
    Our price: $11.09 List price: $13.69
  • 3 Vane Impeller (1542P-55SP)
    • Ref No: 7
    • Part No: 04001540P
    • Qty Req: 1
    Our price: $25.19 List price: $31.10
  • 5 Vane Impeller (1542P-65SP)
    • Ref No: 7A
    • Part No: 04011540P
    • Qty Req: 1
    Our price: $28.36 List price: $35.01
  • Diffuser ( 2" Poly Transfer Pumps 1542P-55SP & 1542P-65SP)
    • Ref No: 8
    • Part No: 01501540P
    • Qty Req: 1
    Our price: $39.97 List price: $49.35
  • Screw
    • Ref No: 9
    • Part No: 22100144
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Screw
    • Ref No: 10
    • Part No: 22100152
    • Qty Req: 1
    Our price: $0.95 List price: $1.17
  • Fill/Drain Plug
    • Ref No: 11
    • Part No: 24040350P
    • Qty Req: 2
    Our price: $1.75 List price: $2.16
  • O-Ring
    • Ref No: 12
    • Part No: 17200230
    • Qty Req: 2
    Our price: $1.13 List price: $1.40
  • Pump Housing (1542P-55SP, 1542P-65SP 2" Poly Transfer Pump)
    • Ref No: 13
    • Part No: 01001540P
    • Qty Req: 1
    Our price: $73.57 List price: $90.83
  • Slinger Ring
    • Ref No: 16
    • Part No: 14100083
    • Qty Req: 1
    Our price: $2.34 List price: $2.89
  • O-Ring
    • Ref No: 17
    • Part No: 17200013
    • Qty Req: 4
    Our price: $1.20 List price: $1.48
  • Flat Washer
    • Ref No: 18
    • Part No: 22700114
    • Qty Req: 4
    Our price: $7.56 List price: $9.33
  • Hex Head Cap Screw w/ Washer
    • Ref No: 19
    • Part No: 22100153
    • Qty Req: 4
    Our price: $4.46 List price: $5.51
  • O-Ring
    • Ref No: 20
    • Part No: 17200231
    • Qty Req: 1
    Our price: $1.01 List price: $1.25
  • Mechanical Seal
    • Ref No: 21
    • Part No: 21200044
    • Qty Req: 1
    Our price: $63.15 List price: $77.96
  • Hex Head Cap Screw
    • Ref No: 22
    • Part No: 22100142
    • Qty Req: 1
    Our price: $11.32 List price: $13.98
  • Screw
    • Ref No: 23
    • Part No: 22100145
    • Qty Req: 2
    Our price: $1.08 List price: $1.33
  • Flapper Valve
    • Ref No: 24
    • Part No: 17000208
    • Qty Req: 1
    Our price: $8.57 List price: $10.58
