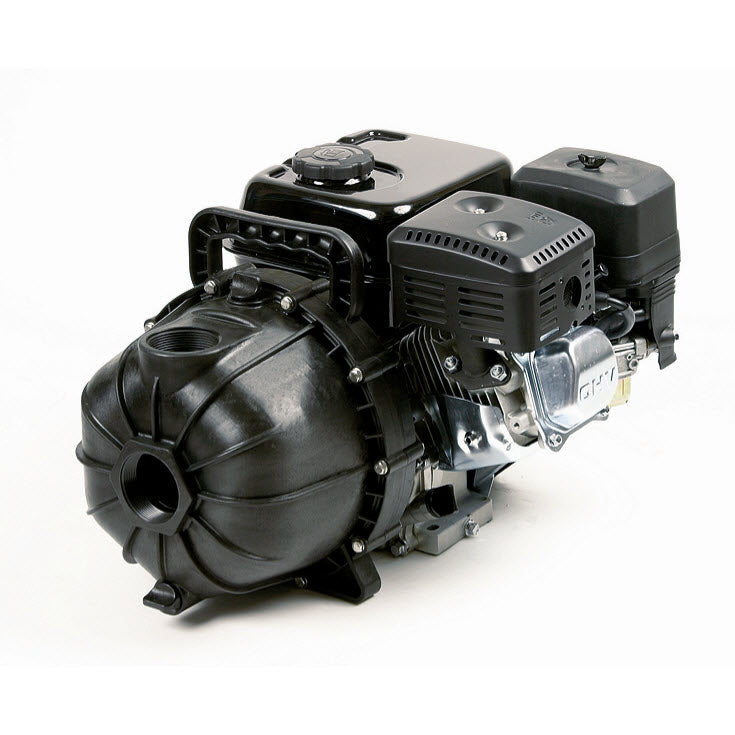

Hypro 1542P-65SP 2" Poly Transfer Pump

Hypro 1542P-65SP 2" Poly Transfer Pump

Brand:
Hypro
Weight:
53.0 lb
Item #
1542P65SP
1 review
1 1

Hypro 1542P-65SP 2" Poly Transfer Pump

Hypro 1542P-65SP 2" Poly Transfer Pump

Brand:
Hypro
Weight:
53.0 lb
Item #
1542P65SP
1 review

$405.45
$405.45 List Price: $737.19

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,216 points with this purchase.

See Details

View full details

Product Overview

200 gpm, 58 psi.

1542P-65SP Hypro 2" Poly Transfer Pump with 6.5 HP PowerPro engine.

Hypro’s line of high-powered, self-priming transfer pumps is powered by a 5.5 HP or 6.5 HP PowerPro™ engine, or is hydraulically driven. With flow rates of up to 200 gpm and pressures up to 58 psi, these transfer pumps deliver solutions for your fluid and chemical transfer needs.

The polypropylene pump body makes this product line ideal for use in transferring a variety of fluids including corrosive chemicals like Roundup® and Atrazine.

Tank filling, floodwater removal, and lawn & garden watering applications are just a few more of its many uses.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Mounting Flange
    • Ref No: 3
    • Part No: 07511540P
    • Qty Req: 1
    Our price: $57.07 List price: $70.46
  • Diffuser Gasket
    • Ref No: 4
    • Part No: 17000209
    • Qty Req: 1
    Our price: $2.27 List price: $2.80
  • Pump Body O-Ring
    • Ref No: 5
    • Part No: 17200244
    • Qty Req: 1
    Our price: $11.09 List price: $13.69
  • 3 Vane Impeller (1542P-55SP)
    • Ref No: 7
    • Part No: 04001540P
    • Qty Req: 1
    Our price: $25.19 List price: $31.10
  • 5 Vane Impeller (1542P-65SP)
    • Ref No: 7A
    • Part No: 04011540P
    • Qty Req: 1
    Our price: $28.36 List price: $35.01
  • Diffuser ( 2" Poly Transfer Pumps 1542P-55SP & 1542P-65SP)
    • Ref No: 8
    • Part No: 01501540P
    • Qty Req: 1
    Our price: $39.97 List price: $49.35
  • Screw
    • Ref No: 9
    • Part No: 22100144
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Screw
    • Ref No: 10
    • Part No: 22100152
    • Qty Req: 1
    Our price: $0.95 List price: $1.17
  • Fill/Drain Plug
    • Ref No: 11
    • Part No: 24040350P
    • Qty Req: 2
    Our price: $1.75 List price: $2.16
  • O-Ring
    • Ref No: 12
    • Part No: 17200230
    • Qty Req: 2
    Our price: $1.13 List price: $1.40
  • Pump Housing (1542P-55SP, 1542P-65SP 2" Poly Transfer Pump)
    • Ref No: 13
    • Part No: 01001540P
    • Qty Req: 1
    Our price: $73.57 List price: $90.83
  • Slinger Ring
    • Ref No: 16
    • Part No: 14100083
    • Qty Req: 1
    Our price: $2.34 List price: $2.89
  • O-Ring
    • Ref No: 17
    • Part No: 17200013
    • Qty Req: 4
    Our price: $1.20 List price: $1.48
  • Flat Washer
    • Ref No: 18
    • Part No: 22700114
    • Qty Req: 4
    Our price: $7.56 List price: $9.33
  • Hex Head Cap Screw w/ Washer
    • Ref No: 19
    • Part No: 22100153
    • Qty Req: 4
    Our price: $4.46 List price: $5.51
  • O-Ring
    • Ref No: 20
    • Part No: 17200231
    • Qty Req: 1
    Our price: $1.01 List price: $1.25
  • Mechanical Seal
    • Ref No: 21
    • Part No: 21200044
    • Qty Req: 1
    Our price: $63.15 List price: $77.96
  • Hex Head Cap Screw
    • Ref No: 22
    • Part No: 22100142
    • Qty Req: 1
    Our price: $11.32 List price: $13.98
  • Screw
    • Ref No: 23
    • Part No: 22100145
    • Qty Req: 2
    Our price: $1.08 List price: $1.33
  • Flapper Valve
    • Ref No: 24
    • Part No: 17000208
    • Qty Req: 1
    Our price: $8.57 List price: $10.58
