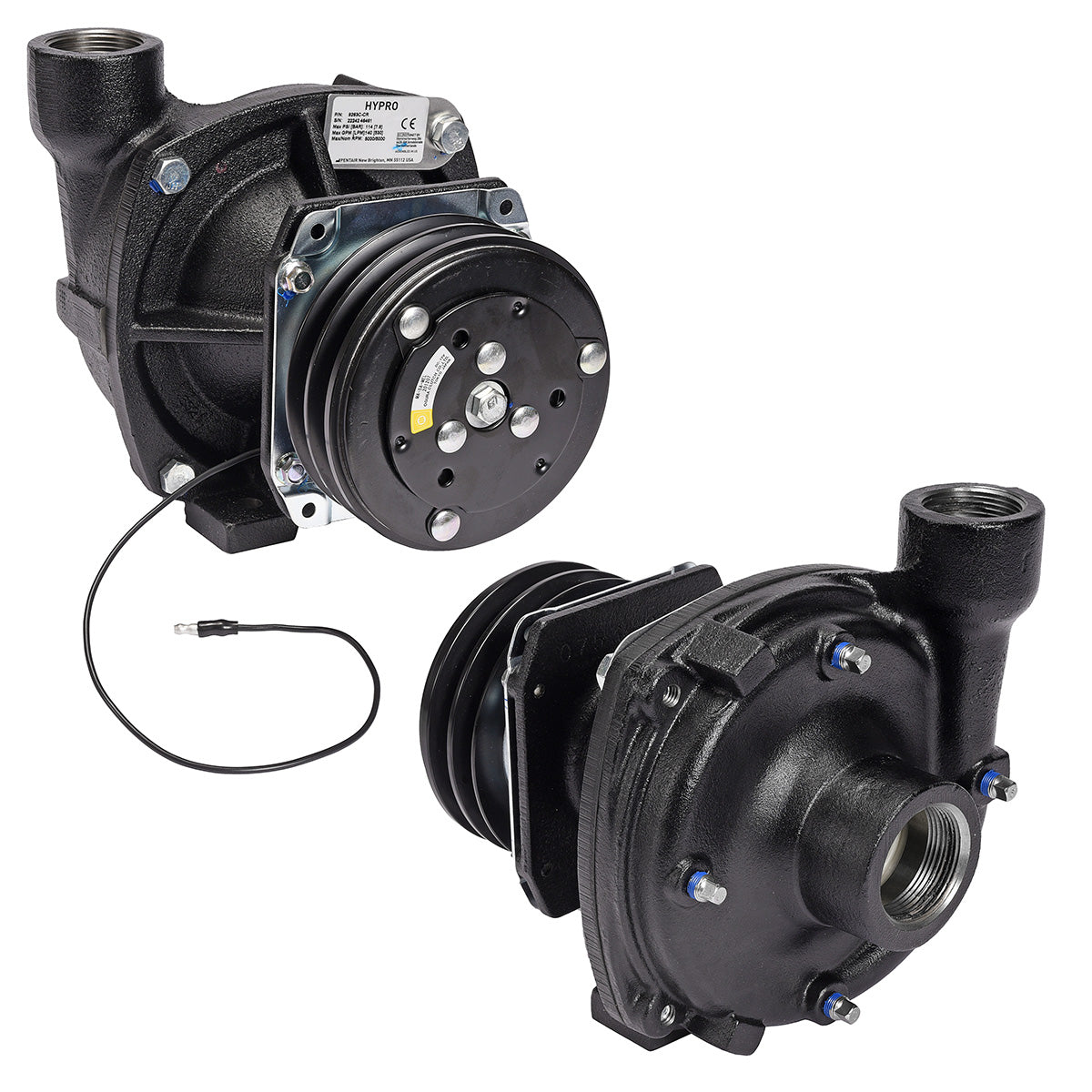

Hypro 9263C-CR Centrifugal Pump

Hypro 9263C-CR Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9263CCR
3 reviews
Skip to product information
1 of 1

Hypro 9263C-CR Centrifugal Pump

Hypro 9263C-CR Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9263CCR
3 reviews

Regular price $878.66
Sale price $878.66 Regular price List Price: $1,597.56

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,636 points with this purchase.

View full details

Collapsible content

Product Overview

The Hypro 9263C-CR Centrifugal Pump is excellent for large spraying jobs. The cast iron casing makes it ideal for corrosive chemicals, such as herbicides and insecticides, while the durable mechanisms can reach speeds of up to 5000 revolutions per minute. May be used for a wide range of different agricultural operations, including watering, pesticide application, or even filling tanks.

Manufacturer description

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid application.

Features

  • Max flow: 140 gpm
  • Max pressure: 114 psi
  • Max speed: 5000 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 5/8" solid
  • Pump shaft rotation: CW
  • Max fluid temperature: 140°F
  • Clutch: 12 VDC
  • Amp draw: 45 watts
  • Weight: 23 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (Reverse) (Cast Iron Series)
    • Ref No: 2A
    • Part No: 01529000C
    • Qty Req: 1
    Our price: $245.58 List price: $303.18
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller (Reverse) Cast Iron Series
    • Ref No: 4A
    • Part No: 04049100P
    • Qty Req: 1
    Our price: $87.46 List price: $107.98
  • Key (Cast Iron Series)
    • Ref No: 5
    • Part No: 16100015
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 8
    • Part No: 21200008
    • Qty Req: 1
    Our price: $35.62 List price: $43.97
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 8
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • Mounting Flange (Cast Iron Series)
    • Ref No: 9
    • Part No: 07509200C3
    • Qty Req: 1
    Our price: $195.81 List price: $241.74
  • Hex Head Cap Screw
    • Ref No: 10
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Slinger Seal
    • Ref No: 11
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Pump Shaft
    • Ref No: 13
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 14
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 15
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Head Hex Cap Screw
    • Ref No: 16
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Washer
    • Ref No: 17
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Spacer
    • Ref No: 18
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Hypro 2526-0012 Magnetic Clutch Assembly for 9263C-CR-SP Models
    • Ref No: 20
    • Part No: 25260012
    • Qty Req: 1
    Our price: $542.83 List price: $986.96
  • Set Screw
    • Ref No: 21
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Clutch Kit
    • Ref No: 22
    • Part No: 34300592
    • Qty Req: 1
    Our price: $991.77 List price: $1,224.41
  • Retaining Ring
    • Ref No: 25
    • Part No: 18100036
    • Qty Req: 1
    Our price: $6.25 List price: $7.72
