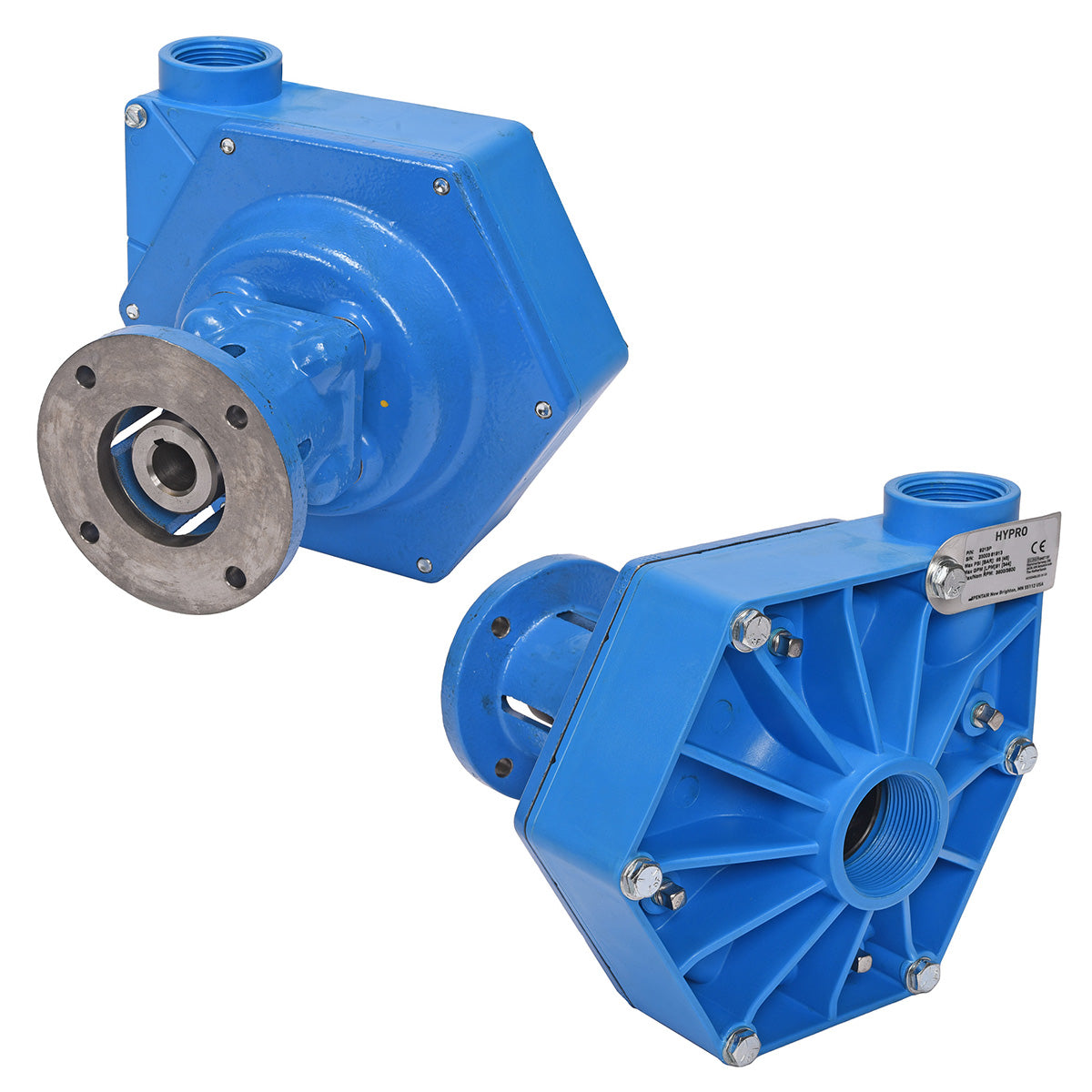

Hypro 9513P Centrifugal Pump

Hypro 9513P Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9513P
1 1

Hypro 9513P Centrifugal Pump

Hypro 9513P Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9513P

$773.06
$773.06 List Price: $1,405.56

Earn 2,319 points with this purchase.

See Details

View full details

Product Overview

Hypro 9513P Flange Mount Polypropylene Centrifugal Pump.

**Pump replaced by 9213P**

91 gpm, 65 psi.

1-1/2" NPT Inlet, 1-1/4" NPT Outlet. 3/4" Stainless Steel hollow shaft for direct coupling to 5 HP engine.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 1
    • Part No: 07019500P
    • Qty Req: 1
    Our price: $60.54 List price: $74.74
  • Impeller (Polypropylene)
    • Ref No: 2
    • Part No: 04029000P
    • Qty Req: 1
    Our price: $92.11 List price: $113.72
  • Gasket
    • Ref No: 3
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • O-Ring
    • Ref No: 4
    • Part No: 17210083
    • Qty Req: 1
    Our price: $19.77 List price: $24.41
  • 3430-0333 Seal & O-Ring Repair Kit Hypro Poly Centrifugal Pumps
    • Ref No: 5
    • Part No: 34300333
    • Qty Req: 1
    Our price: $88.63 List price: $109.42
  • Back Cover
    • Ref No: 6
    • Part No: 07009500P
    • Qty Req: 1
    Our price: $25.18 List price: $31.09
  • Screw
    • Ref No: 7
    • Part No: 22100088
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Spacer
    • Ref No: 8
    • Part No: 14100082
    • Qty Req: 1
    Our price: $6.18 List price: $7.63
  • Socket Head Capscrew
    • Ref No: 9
    • Part No: 22200055
    • Qty Req: 4
    Our price: $4.94 List price: $6.10
  • Intermediate Flange
    • Ref No: 10
    • Part No: 07029500C
    • Qty Req: 1
    Our price: $475.04 List price: $586.47
  • Retainer Ring (Shaft)
    • Ref No: 11
    • Part No: 18100013
    • Qty Req: 1
    Our price: $1.17 List price: $1.45
  • Main Bearing - Hypro Pumps
    • Ref No: 12
    • Part No: 20080001
    • Qty Req: 2
    Our price: $18.61 List price: $22.98
  • Hex Head Bolt
    • Ref No: 13
    • Part No: 22100077
    • Qty Req: 4
    Our price: $1.17 List price: $1.45
  • Flange
    • Ref No: 14
    • Part No: 07059500C
    • Qty Req: 1
    Our price: $616.39 List price: $760.97
  • Key
    • Ref No: 15
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Stainless Shaft
    • Ref No: 16
    • Part No: 05089500
    • Qty Req: 1
    Our price: $479.67 List price: $592.19
  • Set Screws for Hollow Shaft
    • Ref No: 17
    • Part No: 22300017
    • Qty Req: 2
    Our price: $2.02 List price: $2.49
  • Woodruff Key (All Except HM3C)
    • Ref No: 18
    • Part No: 16100042
    • Qty Req: 1
    Our price: $7.61 List price: $9.40
  • Washer
    • Ref No: 21
    • Part No: 22700041
    • Qty Req: 6
    Our price: $1.26 List price: $1.56
  • Gasket (Viton)
    • Ref No: 22
    • Part No: 17000097
    • Qty Req: 1
    Our price: $9.04 List price: $11.16
  • Impeller Nut
    • Ref No: 23
    • Part No: 22500052
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Hex Head Cap Screw
    • Ref No: 24
    • Part No: 22100087
    • Qty Req: 6
    Our price: $1.47 List price: $1.81
  • Jam Nut
    • Ref No: 25
    • Part No: 22500051
    • Qty Req: 1
    Our price: $2.49 List price: $3.07
  • Washer
    • Ref No: 26
    • Part No: 22700057
    • Qty Req: 1
    Our price: $2.69 List price: $3.32
  • Pipe Plug
    • Ref No: 27
    • Part No: 24060020
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
