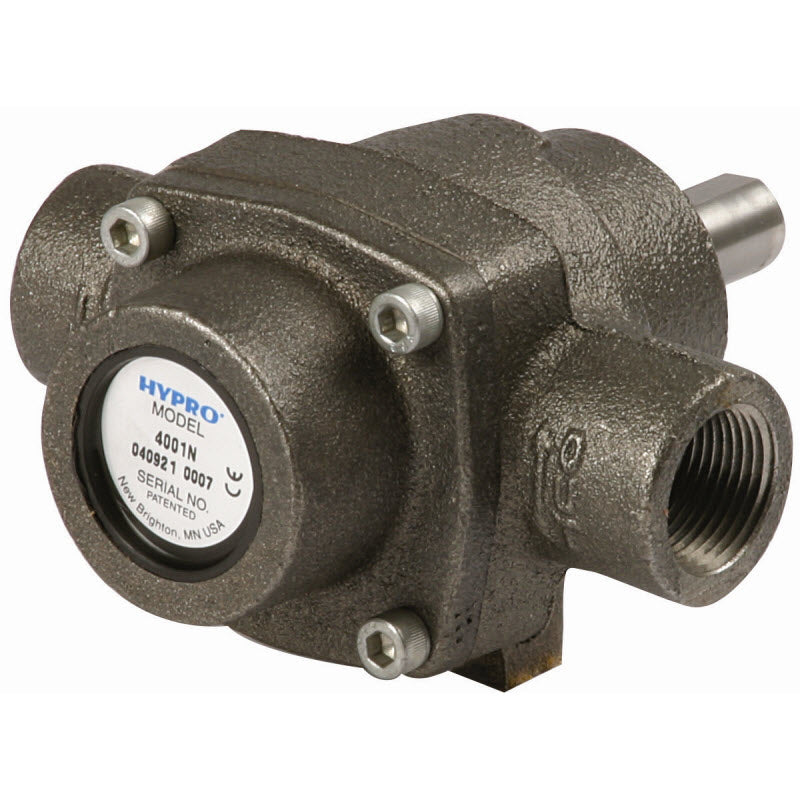

Hypro Pump - 4001N (4001N-A)

Hypro Pump - 4001N (4001N-A)

Brand:
Hypro
Weight:
5.35 lb
Item #
4001N
1 review
1 1

Hypro Pump - 4001N (4001N-A)

Hypro Pump - 4001N (4001N-A)

Brand:
Hypro
Weight:
5.35 lb
Item #
4001N
1 review

$324.34
$324.34 List Price: $589.70

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 973 points with this purchase.

See Details

View full details

Product Overview

Hypro Roller Pump

Model: 4001N

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

The economical rotary action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:
  • Max flow: 9.1 gpm
  • Max pressure: 150 psi
  • Max speed: 1800 rpm
  • Port sizes: 3/4" NPT
  • Pump shaft rotation: CW
  • 5/8" solid stainless steel shaft (1/2" Hollow Shaft also available)

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body (Ni-Resist) with Std. Seal
    • Ref No: 1
    • Part No: 01004001N
    • Qty Req: 1
    Our price: $255.25 List price: $315.12
  • Endplate (Ni-resist) with Std. seal
    • Ref No: 2
    • Part No: 02004001N
    • Qty Req: 1
    Our price: $99.40 List price: $122.72
  • Rotor Assembly (4001N, XL)
    • Ref No: 3
    • Part No: 34300765
    • Qty Req: 1
    Our price: $120.50 List price: $148.76
  • Rotor Assembly (Hollow Shaft)
    • Ref No: 3A
    • Part No: 34300780
    • Qty Req: 1
    Our price: $119.34 List price: $147.33
  • Super Rollers (Std.)
    • Ref No: 5
    • Part No: 10050002
    • Qty Req: 4
    Our price: $4.76 List price: $5.88
  • Polypropylene Rollers (Optional)
    • Ref No: 5
    • Part No: 10020002
    • Qty Req: 4
    Our price: $4.16 List price: $5.13
  • Teflon® Rollers (Optional)
    • Ref No: 5
    • Part No: 10550002
    • Qty Req: 4
    Our price: $30.79 List price: $38.01
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200104
    • Qty Req: 1
    Our price: $1.18 List price: $1.46
  • Endplate Screw
    • Ref No: 7
    • Part No: 22200018
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Viton Seal (Std.)
    • Ref No: 8
    • Part No: 21070002
    • Qty Req: 2
    Our price: $12.95 List price: $15.99
  • Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001
    • Qty Req: 2
    Our price: $30.62 List price: $37.80
  • Teflon® Coated Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001T
    • Qty Req: 2
    Our price: $47.50 List price: $58.64
  • Ball Bearing for Hypro Pumps
    • Ref No: 9
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Base Kit (3-1/2")
    • Ref No: 10
    • Part No: 34200024
    • Qty Req: 1
    Our price: $52.15 List price: $64.38
  • Base Kit (4-3/16")
    • Ref No: 11
    • Part No: 34200025
    • Qty Req: 1
    Our price: $54.34 List price: $54.34
  • Adapter (5/8 X 5/8)
    • Ref No: 12
    • Part No: 13200016
    • Qty Req: 1
    Our price: $50.97 List price: $62.93
  • Adapter (5/8 X 3/4")
    • Ref No: 12
    • Part No: 13200015
    • Qty Req: 1
    Our price: $52.19 List price: $64.43
  • Shaft Bearing Cover
    • Ref No: 13
    • Part No: 23000023
    • Qty Req: 1
    Our price: $1.90 List price: $2.35
  • Bearing Cover
    • Ref No: 14
    • Part No: 23000021
    • Qty Req: 1
    Our price: $1.82 List price: $2.25
  • Locking Collar
    • Ref No: 15
    • Part No: 14200001
    • Qty Req: 1
    Our price: $7.39 List price: $9.12
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 1
    Our price: $2.37 List price: $2.92
  • Base
    • Ref No: 17
    • Part No: 15100054
    • Qty Req: 1
    Our price: $17.19 List price: $21.22
  • Bumper
    • Ref No: 18
    • Part No: 14500003
    • Qty Req: 2
    Our price: $1.70 List price: $2.10
  • Head Hex Cap Screw
    • Ref No: 19
    • Part No: 22100003
    • Qty Req: 2
    Our price: $1.20 List price: $1.48
  • Lock Washer
    • Ref No: 20
    • Part No: 22600002
    • Qty Req: 2
    Our price: $1.18 List price: $1.46
