Product Overview

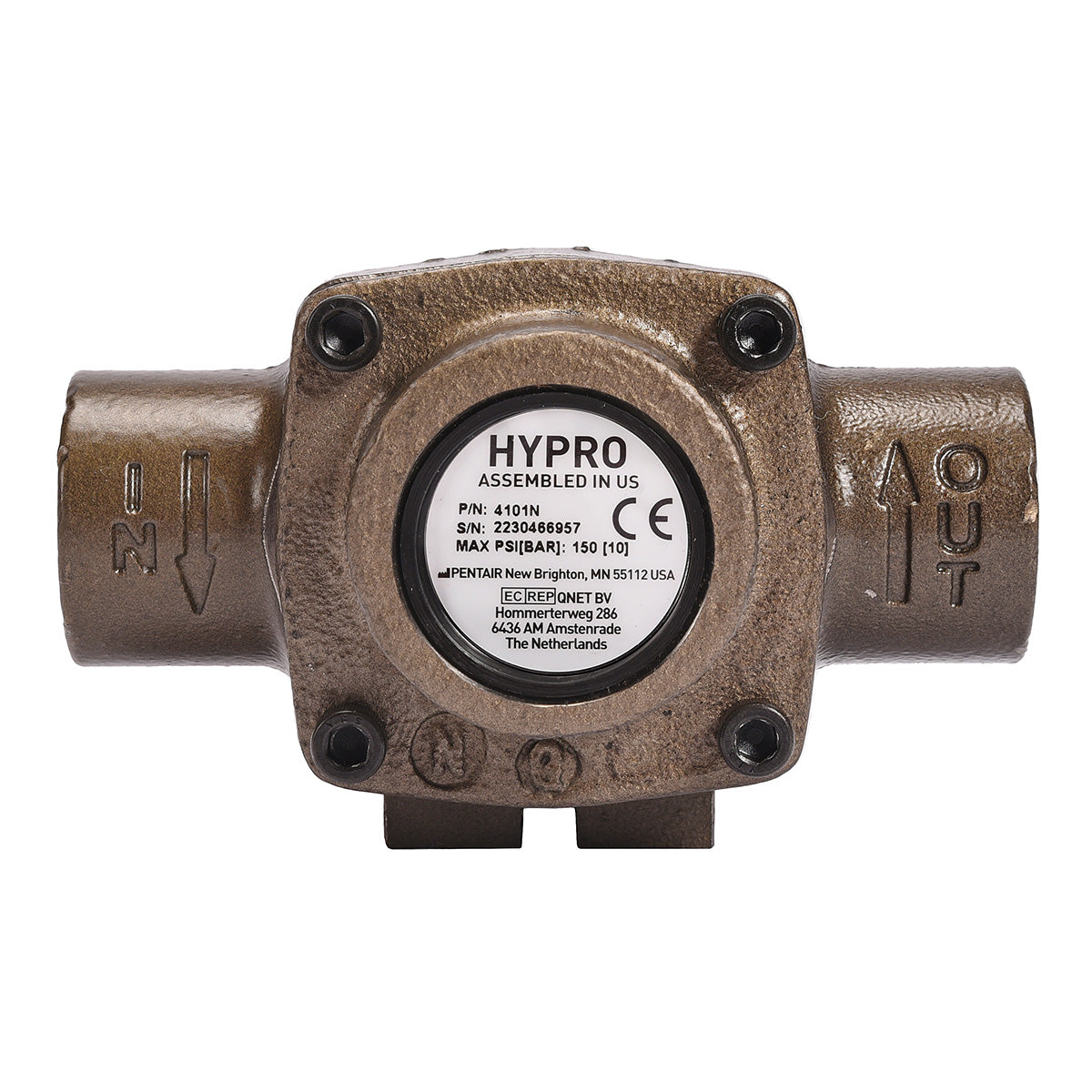

Hypro Roller Pump

Model: 4101N

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

Max flow: 7 gpm
Max pressure: 150 psi
Max speed: 2600 rpm
Port sizes: 3/4" NPT
Pump shaft rotation: CW
5/8" solid stainless steel shaft ( 1/2" Hollow Shaft also available)
Pumps are&n

Resources

Download Product Manual

Parts breakdown

Diagram

Parts list

Body (Ni-Resist)
- Ref No: 1
- Part No: 01004101N
- Qty Req: 1
Our price: $255.25 List price: $315.12
Endplate (Ni-Resist) with Std. Seal
- Ref No: 2
- Part No: 02004101N
- Qty Req: 1
Our price: $98.56 List price: $121.68
Rotor Assembly (4101N, XL)
- Ref No: 3
- Part No: 34300766
- Qty Req: 1
Our price: $144.83 List price: $178.80
Rotor Assembly (Hollow Shaft)
- Ref No: 3A
- Part No: 34300781
- Qty Req: 1
Our price: $139.03 List price: $171.64
Super Rollers (Std.)
- Ref No: 5
- Part No: 10050002
- Qty Req: 4
Our price: $4.76 List price: $5.88
Polypropylene Rollers (Optional)
- Ref No: 5
- Part No: 10020002
- Qty Req: 4
Our price: $4.16 List price: $5.13
Teflon® Rollers (Optional)
- Ref No: 5
- Part No: 10550002
- Qty Req: 4
Our price: $30.79 List price: $38.01
O-Ring Gasket for Endplate
- Ref No: 6
- Part No: 17200104
- Qty Req: 1
Our price: $1.18 List price: $1.46
Endplate Screw
- Ref No: 7
- Part No: 22200018
- Qty Req: 4
Our price: $1.12 List price: $1.38
Viton Seal (Std.)
- Ref No: 8
- Part No: 21070002
- Qty Req: 2
Our price: $12.95 List price: $15.99
Buna-N Seal (Optional)
- Ref No: 8
- Part No: 21020001
- Qty Req: 2
Our price: $30.62 List price: $37.80
Teflon® Coated Buna-N Seal (Optional)
- Ref No: 8
- Part No: 21020001T
- Qty Req: 2
Our price: $47.50 List price: $58.64
Ball Bearing for Hypro Pumps
- Ref No: 9
- Part No: 20000010
- Qty Req: 2
Our price: $12.57 List price: $15.52
Base Kit (3-1/2")
- Ref No: 10
- Part No: 34200024
- Qty Req: 1
Our price: $52.15 List price: $64.38
Base Kit (4-3/16")
- Ref No: 11
- Part No: 34200025
- Qty Req: 1
Our price: $54.34 List price: $54.34
Adapter (5/8 X 5/8)
- Ref No: 12
- Part No: 13200016
- Qty Req: 1
Our price: $50.97 List price: $62.93
Adapter (5/8 X 3/4")
- Ref No: 12
- Part No: 13200015
- Qty Req: 1
Our price: $52.19 List price: $64.43
Shaft Bearing Cover
- Ref No: 13
- Part No: 23000023
- Qty Req: 1
Our price: $1.90 List price: $2.35
Bearing Cover
- Ref No: 14
- Part No: 23000021
- Qty Req: 1
Our price: $1.82 List price: $2.25
Locking Collar
- Ref No: 15
- Part No: 14200001
- Qty Req: 1
Our price: $7.39 List price: $9.12
Set Screw
- Ref No: 16
- Part No: 22300001
- Qty Req: 1
Our price: $2.37 List price: $2.92
Base
- Ref No: 17
- Part No: 15100054
- Qty Req: 1
Our price: $17.19 List price: $21.22
Bumper
- Ref No: 18
- Part No: 14500003
- Qty Req: 2
Our price: $1.70 List price: $2.10
Head Hex Cap Screw
- Ref No: 19
- Part No: 22100003
- Qty Req: 2
Our price: $1.20 List price: $1.48
Lock Washer
- Ref No: 20
- Part No: 22600002
- Qty Req: 2
Our price: $1.18 List price: $1.46
