No matter what challenge you face in agricultural spraying, the 12 Volt DC Roller Pump from Hypro is ready to tackle the task at hand. This pumping equipment has four rollers, is capable of up to 9.9 GPM and 60 PSI, and incorporates a locking collar and torque arm. It is perfect for whatever spraying needs you have, regardless of whether you are spraying water or agricultural chemicals.

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. The 4000 series, 4-roller, 12-volt pump achieves up to 10.4 gpm, and 100 psi depending on the model. The series includes models 4001N-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H, 4101XL-E2H.

Download Product Manual

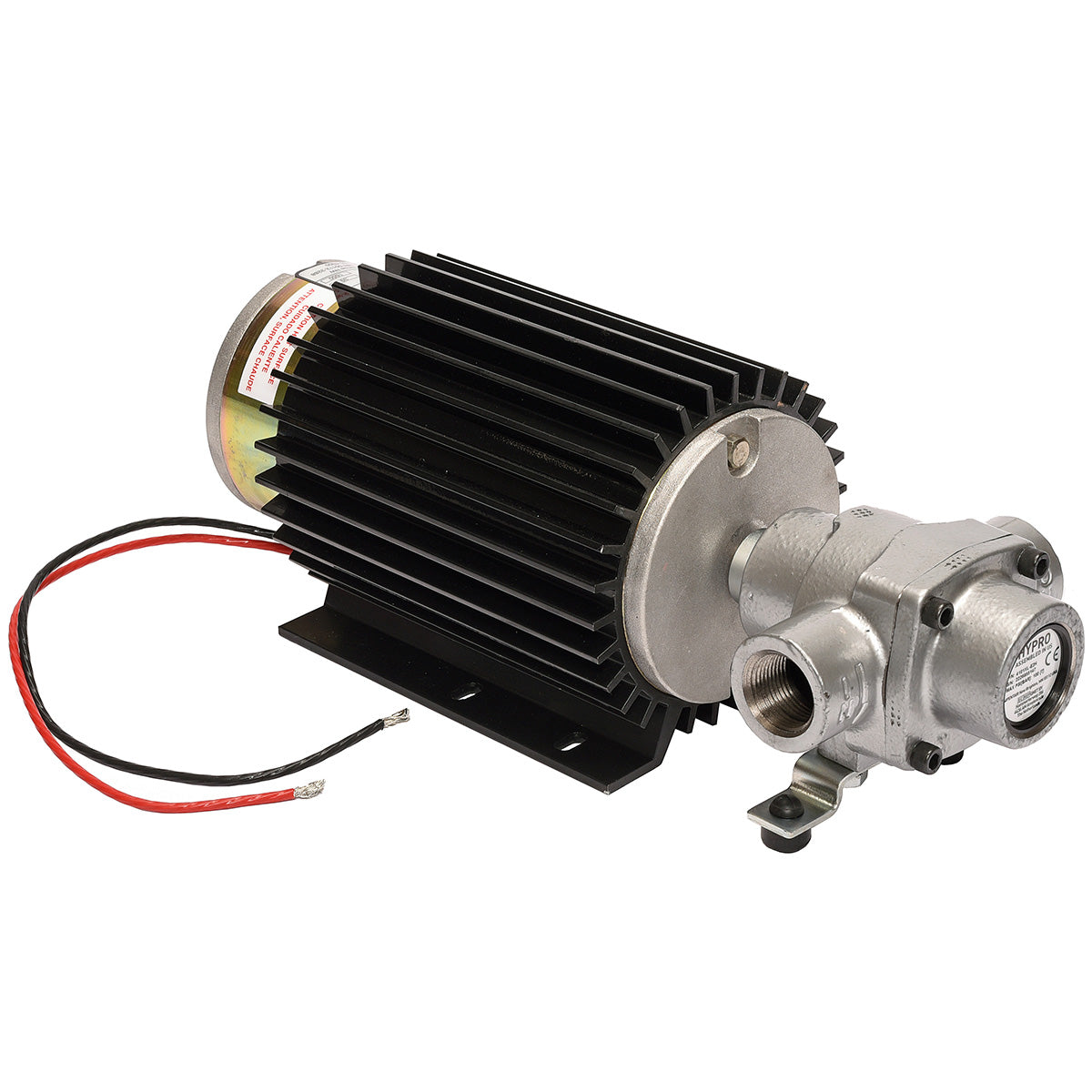

• 4001XL-H pump coupled to E2H 12 volt DC motor
• Max flow: 9.9 gpm
• Max pressure: 60 psi
• Max rpm: 1600
• Port sizes: 3/4" FNPT
• Pump shaft rotation: CW
• Housing: Silvercast
• Rotor: Silvercast
• Roller material: Super rollers standard, Poly and Teflon available
• Roller quantity: 4
• Shaft seals: Viton standard, Buna available
• Shaft: 1/2" hollow stainless steel
• Max fluid temperature: 140°F
• Weight: 21 lbs
