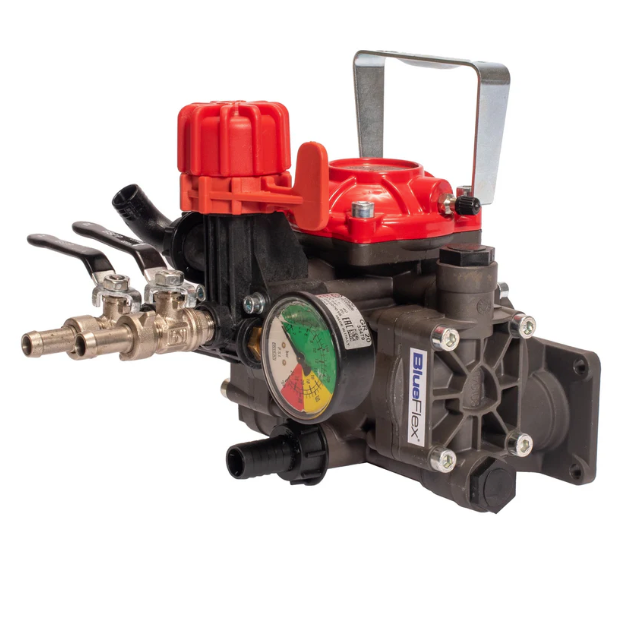

Hypro D252GRGI Pump

Hypro D252GRGI Pump

Brand:
Hypro
Weight:
14.05 lb
Item #
9910D252GRGI
19 reviews
Skip to product information
1 of 1

Hypro D252GRGI Pump

Hypro D252GRGI Pump

Brand:
Hypro
Weight:
14.05 lb
Item #
9910D252GRGI
19 reviews

Regular price $568.69
Sale price $568.69 Regular price List Price: $1,427.22

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,706 points with this purchase.

View full details

Collapsible content

Product Overview

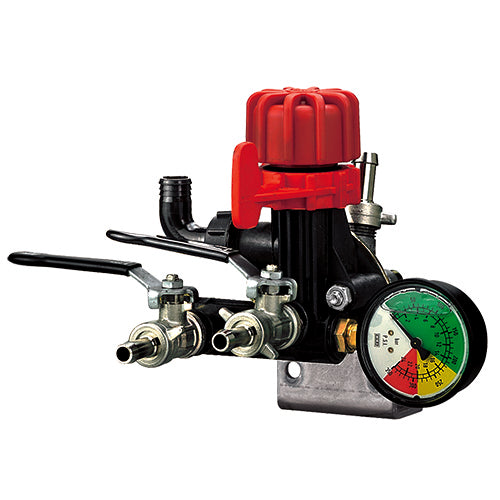

Please note - the 252 regulator has been completely upgraded and now features the GR20, bringing improved performance and enhanced usability. Key enhancements include two discharge ball valves with ½" hose barbs, ¾" bypass and a pressure gauge.

Built strong to handle the delivery of many kinds of chemicals, the Hypro/AR D252GRGI Pump is specially made to work within small to medium-sized sprayer systems. It's an ideal component to handle herbicides, pesticides, liquid fertilizers and other common agricultural substances. Furthermore, this reliable, long-lasting medium-pressure diaphragm pump can generate a maximum pressure of 290 psi.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers.

Features

  • Max flow: 6.5 gpm
  • Max pressure: 362 psi
  • Includes GR20 pressure regulator and gearbox with 3/4" hollow shaft for mounting to 2.5 to 5.5 hp gas engines
  • Port sizes: ¾" HB inlet, (2) ½" HB outlet, ¾" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic Blue Flex Material; Desmopan® and Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 14 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plug
    • Ref No: 4
    • Part No: 9910620301
    • Qty Req: 2
    Our price: $4.02 List price: $4.96
  • O-Ring
    • Ref No: 5
    • Part No: 9910800380
    • Qty Req: 1
    Our price: $11.27 List price: $13.91
  • Flange
    • Ref No: 6
    • Part No: 9910800020
    • Qty Req: 1
    Our price: $78.76 List price: $97.23
  • 3/4" Solid Shaft
    • Ref No: 7
    • Part No: 9910800172
    • Qty Req: 1
    Our price: $207.59 List price: $256.28
  • Spacer
    • Ref No: 8
    • Part No: 9910800160
    • Qty Req: 1
    Our price: $3.22 List price: $3.97
  • Nut
    • Ref No: 12
    • Part No: 9910390440
    • Qty Req: 4
    Our price: $1.51 List price: $1.86
  • Seal
    • Ref No: 15
    • Part No: 9910800200
    • Qty Req: 1
    Our price: $21.80 List price: $26.91
  • Roller Bearing
    • Ref No: 16
    • Part No: 9910800180
    • Qty Req: 1
    Our price: $28.55 List price: $35.25
  • Stud
    • Ref No: 17
    • Part No: 9910550330
    • Qty Req: 4
    Our price: $2.99 List price: $3.69
  • Piston
    • Ref No: 18
    • Part No: 9910802070
    • Qty Req: 2
    Our price: $47.19 List price: $58.26
  • Connecting Rod
    • Ref No: 19
    • Part No: 9910800140
    • Qty Req: 2
    Our price: $35.66 List price: $44.02
  • Piston Pin
    • Ref No: 20
    • Part No: 9910800130
    • Qty Req: 2
    Our price: $16.20 List price: $20.00
  • Roller Bearing
    • Ref No: 21
    • Part No: 9910480370
    • Qty Req: 1
    Our price: $33.27 List price: $41.08
  • O-Ring
    • Ref No: 22
    • Part No: 9910480440
    • Qty Req: 5
    Our price: $1.76 List price: $2.17
  • Bolt
    • Ref No: 23
    • Part No: 9910680360
    • Qty Req: 1
    Our price: $3.65 List price: $4.50
  • Bolt
    • Ref No: 24
    • Part No: 9910800220
    • Qty Req: 7
    Our price: $3.35 List price: $4.14
  • Sleeve
    • Ref No: 26
    • Part No: 9910800110
    • Qty Req: 2
    Our price: $54.88 List price: $67.75
  • Retaining Bolt
    • Ref No: 27
    • Part No: 9910800090
    • Qty Req: 1
    Our price: $8.25 List price: $10.19
  • Plate
    • Ref No: 28
    • Part No: 9910800350
    • Qty Req: 2
    Our price: $8.88 List price: $10.96
  • Piston Ring
    • Ref No: 30
    • Part No: 9910802080
    • Qty Req: 2
    Our price: $10.34 List price: $12.76
  • Diaphragm Desmopan (Std.)
    • Ref No: 31
    • Part No: 9910800085
    • Qty Req: 2
    Our price: $24.76 List price: $30.57
  • Diaphragm Buna (Opt.)
    • Ref No: 31
    • Part No: 9910800080
    • Qty Req: 2
    Our price: $20.42 List price: $25.21
  • Sleeve
    • Ref No: 32
    • Part No: 9910802050
    • Qty Req: 2
    Our price: $40.48 List price: $49.98
  • Oil Sight Glass
    • Ref No: 34
    • Part No: 9910801960
    • Qty Req: 1
    Our price: $17.14 List price: $21.16
  • Ring Nut
    • Ref No: 35
    • Part No: 9910800520
    • Qty Req: 2
    Our price: $8.12 List price: $10.02
  • O-Ring
    • Ref No: 36
    • Part No: 9910390180
    • Qty Req: 1
    Our price: $1.51 List price: $1.86
  • Barb Nut
    • Ref No: 37
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.19 List price: $5.17
  • Hose Barb (Inlet) 3/4"
    • Ref No: 38
    • Part No: 9910800340
    • Qty Req: 1
    Our price: $7.47 List price: $9.22
  • Plug
    • Ref No: 39
    • Part No: 9910800540
    • Qty Req: 1
    Our price: $2.78 List price: $3.43
  • Valve Body
    • Ref No: 40
    • Part No: 9910800400
    • Qty Req: 1
    Our price: $70.62 List price: $87.18
  • Washer
    • Ref No: 41
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Valve
    • Ref No: 43
    • Part No: 9910800430
    • Qty Req: 1
    Our price: $8.80 List price: $10.87
  • Ring Nut
    • Ref No: 45
    • Part No: 9910800500
    • Qty Req: 1
    Our price: $7.76 List price: $9.58
  • Knob
    • Ref No: 46
    • Part No: 9910800510
    • Qty Req: 1
    Our price: $8.25 List price: $10.19
  • Pin
    • Ref No: 47
    • Part No: 9910390330
    • Qty Req: 1
    Our price: $2.52 List price: $3.11
  • O-Ring
    • Ref No: 48
    • Part No: 9910800560
    • Qty Req: 1
    Our price: $1.51 List price: $1.86
  • Positioning Rod
    • Ref No: 49
    • Part No: 9910800490
    • Qty Req: 1
    Our price: $8.03 List price: $9.91
  • Hose Barb ( Outlet ) 3/8"
    • Ref No: 50
    • Part No: 9910800530
    • Qty Req: 1
    Our price: $7.26 List price: $8.96
  • Hose Barb (Bypass) 5/8”
    • Ref No: 51
    • Part No: 9910800670
    • Qty Req: 1
    Our price: $6.20 List price: $7.65
  • Ring Nut
    • Ref No: 52
    • Part No: 9910800680
    • Qty Req: 1
    Our price: $8.12 List price: $10.02
  • O-Ring
    • Ref No: 53
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • ATM Scale Adhesive
    • Ref No: 54
    • Part No: 9910800480
    • Qty Req: 1
    Our price: $1.89 List price: $2.33
  • Lower Spring Guide
    • Ref No: 56
    • Part No: 9910800440
    • Qty Req: 1
    Our price: $5.34 List price: $6.59
  • Spring
    • Ref No: 57
    • Part No: 9910800450
    • Qty Req: 1
    Our price: $6.07 List price: $7.49
  • Upper Spring Guide
    • Ref No: 58
    • Part No: 9910800460
    • Qty Req: 1
    Our price: $6.60 List price: $8.15
  • Adjustment Knob
    • Ref No: 59
    • Part No: 9910800470
    • Qty Req: 1
    Our price: $10.04 List price: $12.39
  • Retaining Ring
    • Ref No: 60
    • Part No: 9910480550
    • Qty Req: 1
    Our price: $1.68 List price: $2.08
  • Pump Body
    • Ref No: 61
    • Part No: 9910800010
    • Qty Req: 1
    Our price: $295.40 List price: $364.69
  • Cap
    • Ref No: 62
    • Part No: 9910550057
    • Qty Req: 1
    Our price: $10.89 List price: $13.44
  • Accumulator Diaphragm (Buna-N)
    • Ref No: 63
    • Part No: 9910800190
    • Qty Req: 1
    Our price: $19.85 List price: $24.50
  • Upper Air Chamber
    • Ref No: 64
    • Part No: 9910800230
    • Qty Req: 1
    Our price: $60.44 List price: $74.62
  • Valve
    • Ref No: 65
    • Part No: 9910800650
    • Qty Req: 1
    Our price: $26.19 List price: $32.33
  • Bolt
    • Ref No: 67
    • Part No: 9910540290
    • Qty Req: 4
    Our price: $2.98 List price: $3.68
  • O-Ring
    • Ref No: 70
    • Part No: 9910800210
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Gear
    • Ref No: 80
    • Part No: 9910800280
    • Qty Req: 1
    Our price: $190.49 List price: $235.17
  • Key, for GX160, D30, etc
    • Ref No: 96
    • Part No: 9910881090
    • Qty Req: 1
    Our price: $10.06 List price: $12.42
  • Driver Gear
    • Ref No: 101
    • Part No: 9910800810
    • Qty Req: 1
    Our price: $256.43 List price: $316.58
  • Driver Gear 5/8"
    • Ref No: 101
    • Part No: 9910801230
    • Qty Req: 1
    Our price: $394.79 List price: $487.39
  • Gear Box Body
    • Ref No: 102
    • Part No: 9910800820
    • Qty Req: 1
    Our price: $229.76 List price: $283.65
  • Locating Bolt
    • Ref No: 103
    • Part No: 9910800800
    • Qty Req: 1
    Our price: $9.58 List price: $11.83
  • Seal
    • Ref No: 104
    • Part No: 9910480820
    • Qty Req: 1
    Our price: $25.60 List price: $31.60
  • Hose Barb 3/4"
    • Ref No: 104
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.35 List price: $6.60
  • Bolt
    • Ref No: 105
    • Part No: 9910620440
    • Qty Req: 4
    Our price: $11.95 List price: $14.75
  • Flange, 1/2" NPT
    • Ref No: 105
    • Part No: 9910800691
    • Qty Req: 1
    Our price: $47.61 List price: $58.78
  • Bolt
    • Ref No: 106
    • Part No: 9910880280
    • Qty Req: 2
    Our price: $1.60 List price: $1.97
  • Shaft "GR-Version", 3/4"
    • Ref No: 108
    • Part No: 9910800171
    • Qty Req: 1
    Our price: $210.62 List price: $260.02

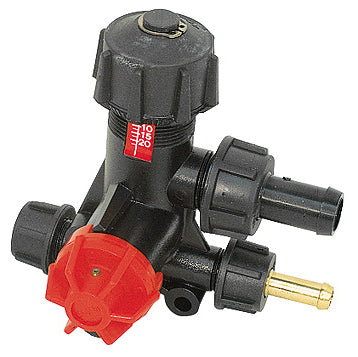

  • Hypro 9910-KIT1990 Control Unit
    • Ref No: NA
    • Part No: 9910KIT1990
    • Qty Req: 1
    Our price: $119.76 List price: $171.09
  • Bolt
    • Ref No: 110
    • Part No: 9910180431
    • Qty Req: 2
    Our price: $1.64 List price: $2.02
  • Washer
    • Ref No: 111
    • Part No: 9910380241
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Pulley Base
    • Ref No: 112
    • Part No: 9910800311
    • Qty Req: 1
    Our price: $33.12 List price: $40.89
  • Bolt
    • Ref No: 113
    • Part No: 9910320350
    • Qty Req: 4
    Our price: $1.51 List price: $1.86
  • Head
    • Ref No: 124
    • Part No: 9910801940
    • Qty Req: 2
    Our price: $52.95 List price: $65.37
  • O-Ring
    • Ref No: 126
    • Part No: 9910880830
    • Qty Req: 4
    Our price: $1.89 List price: $2.33
  • O-Ring
    • Ref No: 127
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
