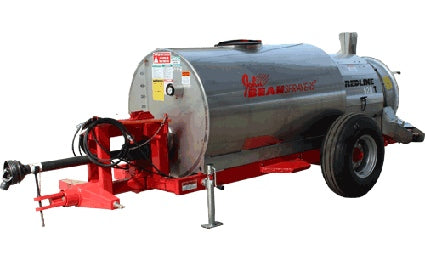

John Bean Redline Model 557 Air Sprayer w/ Piston Pump (36" Fan)

500 Gallon Capacity, Conventional Hitch

35 GPM, 700 PSI

Dimensions:  182" L x 69" W x 72" H

Catalog Number 5284284

Features:

• 500 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
• 36" sixteen blade variable pitch with straightening vanes.  Stainless steel fan housing. Stainless steel manifolds. Two speed with neutral gearbox, variable 40-75 tractor horsepower.
• PTO Power - Constant velocity
• Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
• John Bean 130VS Piston Pump 35 GPM @ 540 RPM to 700 PSI
• 20 double rollover nozzles with diaphragm check valves
• Suction Strainer is externally mounted, star strainer in cast iron housing with built in check valve
• Axle is 4-w
