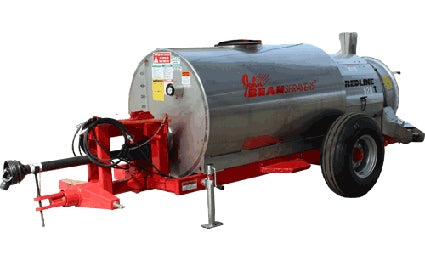

John Bean Redline Model 648T Air Sprayer w/ Centrifugal Pump (Tracking Hitch)
John Bean Redline Model 648T Air Sprayer w/ Centrifugal Pump (Tracking Hitch)
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284575
John Bean Redline Model 648T Air Sprayer w/ Centrifugal Pump (Tracking Hitch)
John Bean Redline Model 648T Air Sprayer w/ Centrifugal Pump (Tracking Hitch)
Brand:
FMC/John Bean
Weight:
1500.0 lb
Item #
5284575
Collapsible content
Product Overview
John Bean Redline Model 648T Air Sprayer w/ Centrifugal Pump (Tracking Hitch)
600 Gallon Capacity, Tracking Hitch
70 GPM, 160 PSI
Dimensions: 182" L x 64" W x 75" H
Catalog Number 5284575
Features:
600 Gallon Capacity, Tracking Hitch
70 GPM, 160 PSI
Dimensions: 182" L x 64" W x 75" H
Catalog Number 5284575
Features:
- 600 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 32" (.82M) twelve blade variable pitch fan with inside air handling at discharge. Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- Centrifugal two stage pump rated at 70 GPM @ 160 PSI
- 14 double rollover nozzles with diaphragm check valves
- Suction Strainer externally mounted for easy access with cylindrical filter and built in check
